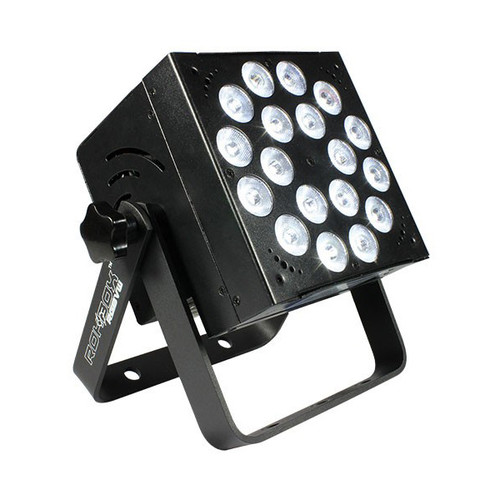

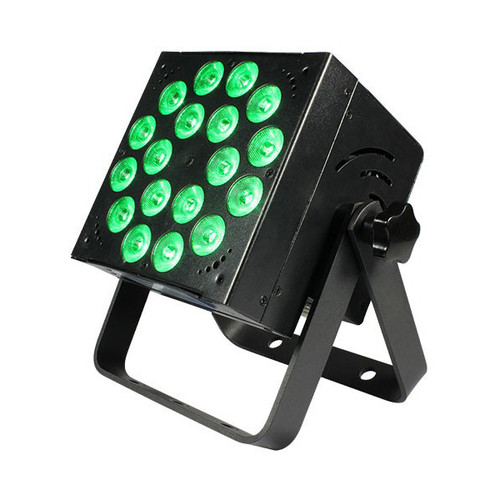

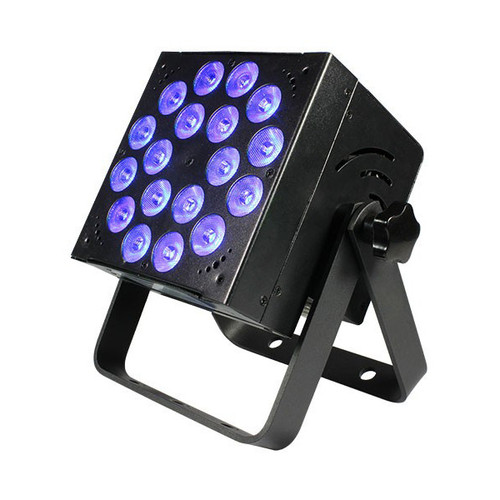

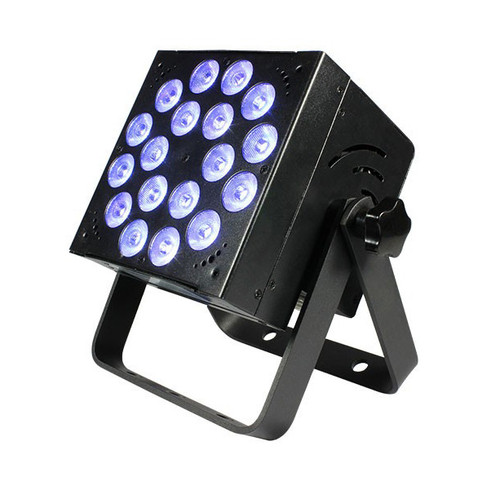

Blizzard Lighting RokBox 5 RGBVW 18x15W RGBW+UV LED Par Fixture (Discontinued)

Part #:
123661
Model #:
RokBox 5 RGBVW
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Blizzard Lighting RokBox 5 RGBVW is a revolutionary high-powered wash fixture. With 18x 15-watt RGBVW 5-in-1 LEDs, advanced electronics, and dual hanging brackets with secure grip locking knobs, the RokBox™ 5 is sure to be a great addition to your lighting rig!

Description

Blizzard Lighting RokBox 5 RGBVW UV Color Wash LED Fixture

The box... one of the most useful, time-tested, and attractive 3-dimensional shapes ever created is once again new and improved!

With the addition of 18x 15-watt RGBVW 5-in-1 LEDs, advanced electronics, and dual hanging brackets with secure grip locking knobs, the RokBox™ 5 RGBVW is sure to be a great addition to your lighting rig!

It features 4/5/9 or 10 DMX channel modes, which means it works great with any type of controller, including our 4-channel Klimate Kontrol lighting controller. You’ll have full control of all that RokBox™ 5 has to offer such as RGBVW color mixing, 31 built-in programs, ultra smooth flicker-free 32-bit dimming (5 user-selectable dimming curves), and even easy HSV color mixing ability in 4-channel mode.

The super-easy to use built-in 4-button LED control panel also allows total control over the fixture including master/slave settings, sound active mode, built-in programs, auto mode, custom RGBVW color mixing (w/ 442nm UV), and user adjustable fade/strobe effects for a totally rocking light show!

Then take full advantage of Blizzard’s wiCICLE® wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks! An innovative design provides power to the system directly from the fixture’s DMX jack, meaning even fewer cords and less setup time.

It also comes equipped with industry standard powerCON® compatible power input/output connections & 3-pin DMX connections which are all strategically placed on the back of the unit in a way that allows you to use the RokBox™ 5 RGBVW in ANY position, including flat on the floor. This makes the RokBox™ 5 RGBVW a perfect solution for any of your uplighting and/or truss warming needs!

Disclaimer: The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.

Features

  • RGBVW color mixing via 18x 15W Red/Green/Blue/UV/White 5-in-1 LEDs
  • 442nm UV LEDs
  • 5 user-selectable 32-bit dimming curves
  • Variable electronic dimming and strobe
  • Built-in color & chase macros via DMX
  • Built-in automated programs via master/slave
  • Built-in sound active programs
  • RGBVW color mixing ability in standalone mode
  • Rugged and well-built (It hits the gym regularly)
  • Super-quiet variable-speed internal fan cooling
  • Dual mounting brackets for positioning flexibility
  • Flicker-free constant-current 400hz LED driver
  • 3-pin male input and 3-pin female output
  • PowerCon™ compatible AC power In/Out connectors

Specifications

Operating Voltage 90-230VAC, 50-60 Hertz
Fuse 3A 250V
Power Consumption 164W
LED 18x 15W 5-in-1 LEDs 100,000 hours
Beam Angle 25 degree optics standard, 26 degree beam, 30 degree field
Max. Operating Temperature 104 degrees F (40 degrees C) ambient
Protocol USITT DMX-512
DMX Channels 4/5/9/10
Input 3-pin XLR Male
Output 3-pin XLR Female
Channels HSV (4-Ch), RGBVW (5-Ch), Extended (9-Ch), and Extended plus 32-bit Dimming (10-Ch) DMX Profiles
Operating Modes Standalone, Master/Slave, Sound Active, Color Preset
Warranty 2-year limited warranty, does not cover malfunction caused by damage to LED’s
Dimensions (H x W x D) 8.98" (228 mm) x 6.5" (165 mm) x 9.22" (234 mm)
Weight 7.28 lbs (3.3 kg)
