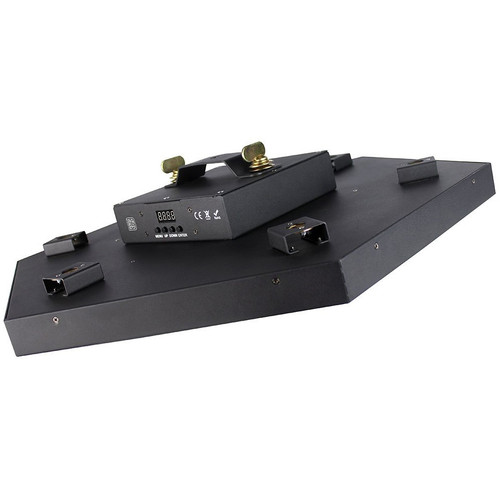

Blizzard Lighting Squarodox 3D Cube LED Effect Panel
Blizzard Lighting Squarodox 3D Cube LED Effect Panel
Blizzard Lighting Squarodox 3D Cube LED Effect Panel
Blizzard Lighting Squarodox 3D Cube LED Effect Panel
Blizzard Lighting Squarodox 3D Cube LED Effect Panel
By Blizzard Lighting

Blizzard Lighting Squarodox 3D Cube LED Effect Panel

Write a Review
Part #:
124237
Model #:
Squarodox 3D
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Blizzard Squarodox 3D is a large (23.6 x 19.7 x 3.2 inch) LED effect panel that displays dazzling 3D light shows with its built-in programs, sound activated modes, or even your own pixel mapped video.

Description

Blizzard Squarodox 3D Cube LED Effect Panel

3D Cube Effect Panel

Squarodox™ 3D is a large (23.6 x 19.7 x 3.2 inch) LED effect panel that displays dazzling 3D light shows with its built-in programs, sound activated modes, or even your own pixel mapped video. It features a killer 3D cube layout with fixtures that can be linked together to create an infinitely large wall of light.

Features
  • 192 3-in-1 RGB 5050 LED chips
  • Built-in auto and sound active modes
  • 23.6" x 19.7" x 3.2" large FX panel
  • LED digital display
  • DMX channels: 5/8/41/144/149
  • PowerCON compatible power input/output
  • 3-pin DMX input/output
  • Steel omega mounting bracket

Specifications
Operating Voltage 90-260VAC, 50-60Hz
Power Consumption 48W, .66A, PF: .62
Optical 192 3-in-1 RGB 5050 LED chips
Protocol USITT DMX-512
DMX Channels 5/8/41/144/149
Input/Output 3-pin XLR Male/Female
Operating Modes DMX512, master/slave, auto, sound active
Dimensions 23.6" (599.44 mm) x 19.7" (500.38 mm) x 3.2" (81.28 mm)
Weight 12.8 lbs (5.8 kg)
!
