- Description
Details

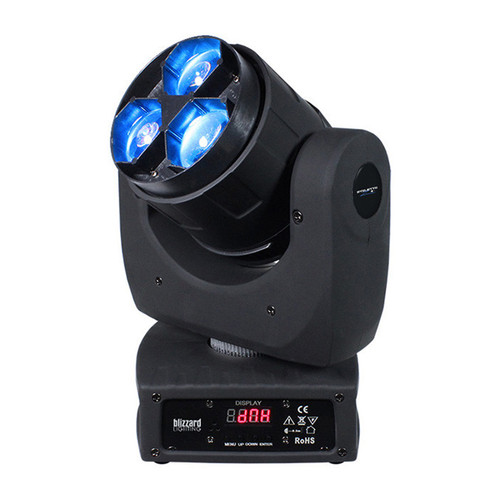

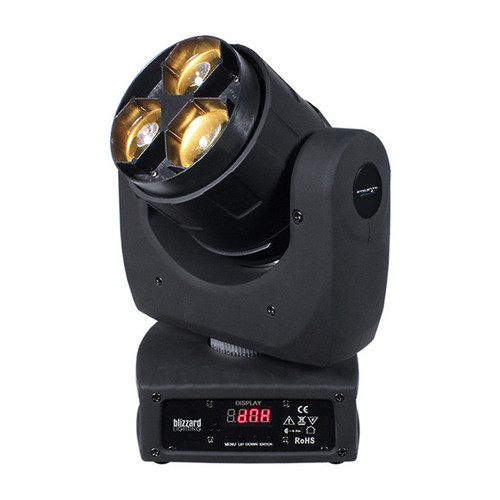

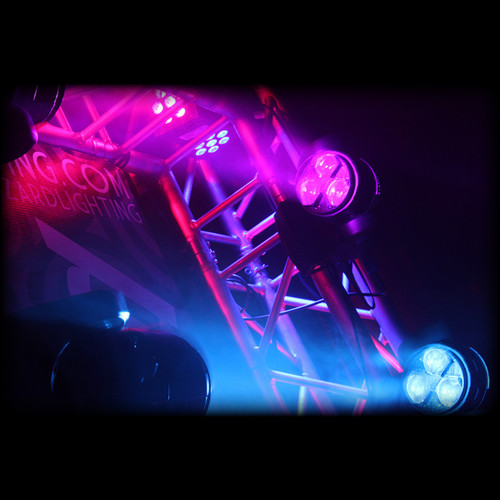

Stiletto™ Z3 fixtures are high in quality, yet totally affordable moving heads that come packed with 3 15W ultra-bright 4-In-1 RGBW LEDs with awesome motorized liner zoom! Stiletto™ Z3's are ready to take a stab at becoming the new crowd favorite at your next show!
With fast pan/tilt motors, razor-sharp optics, ultra-smooth 16-bit dimming, and a narrow to wide 6.5°-60° zoomable beam angle, Stiletto™ Z3 fixtures are able to put on a high-energy lighting display of brightly colored moving beams in standalone, auto mode, sound active mode, or via 12/17-channel DMX modes.
Users can also access Stiletto™ Z3's settings by way of its 4-button LED control panel, which offers total control of every available feature including reversible pan/tilt, user-selectable fast or slow auto modes, sound active mode, mic sensitivity, individual RGBW color balance settings, motor reset, and factory reset.
On the back side of Stiletto™ Z3 fixtures you will find a single industry standard PowerCON® compatible input connector and 3-pin DMX In/Out jacks. Preparing the fixture for truss mounting is also a snap by attaching its included single underside clamp mounting bracket.
It is a super compact, lightweight, and quiet running mini moving head with a ton of spectacular features that you will love. And did we mention that it is flicker free? You bet it is!
And of course, the Stiletto™ Z3 is backed by Blizzard's 2-year warranty!
- Features
Features
- 3 15W Ultra-bright 4-In-1 RGBW LEDs
- Pan: 540°/ Tilt: 270° (8-16 Bit Resolution)
- Motorized liner zoom
- 6.5°-60° Beam angle
- Built-in auto and sound active programs
- Ultra-smooth 16-bit dimming system
- Internal fan cooling system
- Fast motors, quiet operation, and flicker free
- PowerCON® compatible power input connector
- Compact, high quality housing
- Specification
Operating Voltage 100-260VAC, 50-60Hz Power Consumption 65W, .82A, PF: .66 Fuse 5A, 250V LED 3* 15W 4-in-1 RGBW LEDs Beam Angle 6.5°-60° Pan 540 degrees Tilt 270 degrees Max. Operating Temperature 104 degrees F (40 degrees C) ambient Protocol USITT DMX-512 DMX Channels 12/17-channels Input 3-pin XLR Male Output 3-pin XLR Female Other Operating Modes Standalone, Master/Slave, Sound Active Mode Warranty 2-year limited warranty, does not cover malfunction caused by damage to LEDs Dimensions (H x W x D) 11" (270 mm) x 5.5" (140 mm) x 7.9" (210 mm) Weight 8.8 lbs (4 kg) - Documents
Documents
- In The Box
In The Box
- (1) Stiletto™ Z3 3 15W RGBW LED Moving Head
- (1) Power Cord
- (1) Mounting Bracket
- User Manual
