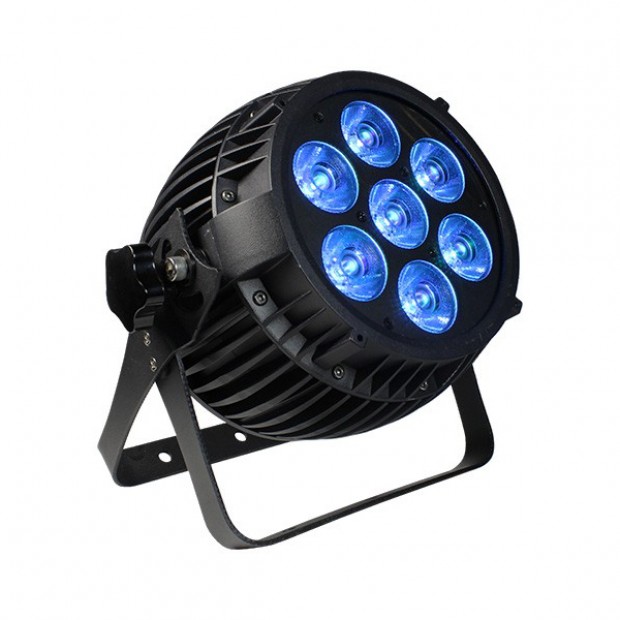

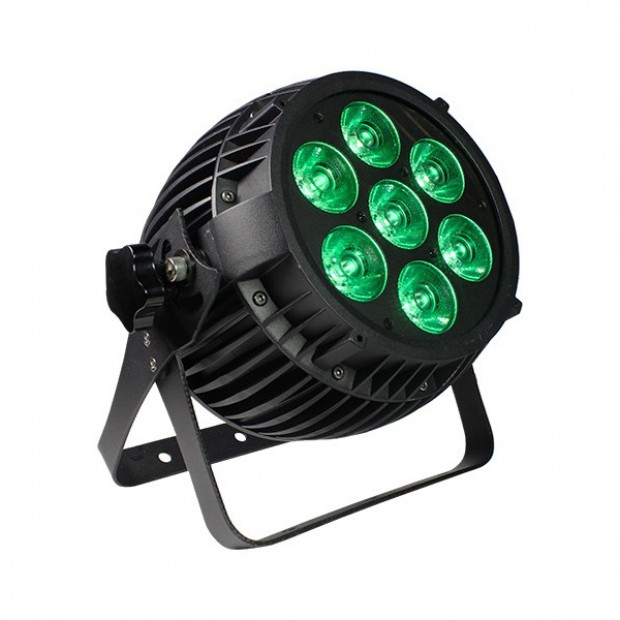

Blizzard Lighting TOURnado IP Beam Outdoor Rated Light (Discontinued)

Part #:
TOURNADO IP BEAM
Model #:
TOURnado IP Beam
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This incredibly tough IP65 rated outdoor fixture features super bright RGBW color mixing and a tight beam angle thanks to its installed 7x 15W Red/Green/Blue/White 4-in-1 LEDs with advanced 8° optics.

Description

It stands up to the fury of Mother Nature, and comes back looking for more!

This incredibly tough IP65 rated outdoor fixture features super bright RGBW color mixing and a tight beam angle thanks to its installed 7x 15W Red/Green/Blue/White 4-in-1 LEDs with advanced 8° optics. Since each individual LED incorporates a red, green, blue, and white chip behind a single lens, shadow artifacts and unevenness within the field are things of the past! And, like the other lights in our TOURnado™ line, it also sports a convection cooled cast aluminum housing with a tempered glass lens, watertight internal gaskets, and unique twist and lock weatherproof power and data cable in/out connections.

You can run any of its impressive built-in programs individually or all together in auto run mode with speed control, fade, and flash settings, then even perform full RGBW color mixing either with or without DMX control. The TOURnado™ IP Beam is a perfect lighting solution for just about any type of outdoor application. It comes equipped with dual mounting brackets to add total positioning flexibility, and it has a well structured, easy to navigate LED control panel menu with 4 electronically touch sensitive navigation buttons that make programming (and button pushing) a breeze!

Set the fixture to work in standalone mode, master/slave mode, or you can control it via 5/6 or 9 channels of DMX, which means it will work just great with our popular Kontrol™ 5-channel DMX controller. All the features are accessible in any mode including RGBW color mixing, 15 built-in static colors, auto run mode, flash/fade mode, and access to 5 user-selectable 32-bit dimming curves. These five different dimming curves allow for different amounts of steps for much smoother (and slower) dimming capabilities.

A complete set of detachable IP rated 3-pin in/out data cables and AC power cables are included with each fixture. DMX and power extension cables are also available in 1-meter, 3-meter, and 5-meter lengths (sold separately).

The TOURnado™ IP Beam is available now, and of course, it is also backed by Blizzard's 2-year warranty!

Features

  • RGBW color mixing via 7x 15W Red/Green/Blue/White 4-in-1 LEDs
  • LED control panel with 4 touch sensitive electronic buttons
  • Narrow 8° beam angle
  • Variable electronic dimming & strobe
  • Built-in color & chase macros via DMX
  • Built-in automated programs via master/slave
  • RGBW color mixing ability in standalone mode
  • 5/6 & 9-channel extended DMX profiles w/32-bit dimming
  • Rugged and well-built (It hits the gym regularly)
  • Convection cooled cast aluminum housing
  • Dual mounting brackets for positioning flexibility
  • Flicker-free constant-current 500MA LED driver
  • IP rated locking power and 3-pin DMX connections

Specifications

Power
Operating Voltage AC 100V-264V/47-63HZ
Power Consumption 82W, 1.18A, PF: .58
Light Source
LED 7x 15W 4-in-1 LEDs 100,000 hours
Optical
Beam Angle 8 degree
Luminous Intensity Red: 1m (12,050) 2m (6,410)
Green: 1m (12,100) 2m (6,390)
Blue: 1m (19,220) 2m (8,870)
White: 1m (30,800) 2m (12,000)
All: 1m (62,900) 2m (23,400)
Thermal
Max. Operating Temperature 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 3/4/5/7 or 10-channel DMX modes
Input 3-pin XLR Male
Output 3-pin XLR Female
Warranty 2-year limited warranty, does not cover malfunction caused by damage to LED’s
Dimensions (H x W x D) 8.6" (218.44 mm) x 10.7" (271.78 mm) x 5.7" (144.78 mm)
11.2" (28.4 cm) height including bracket
Weight 11.5 lbs (5.2 kg)
