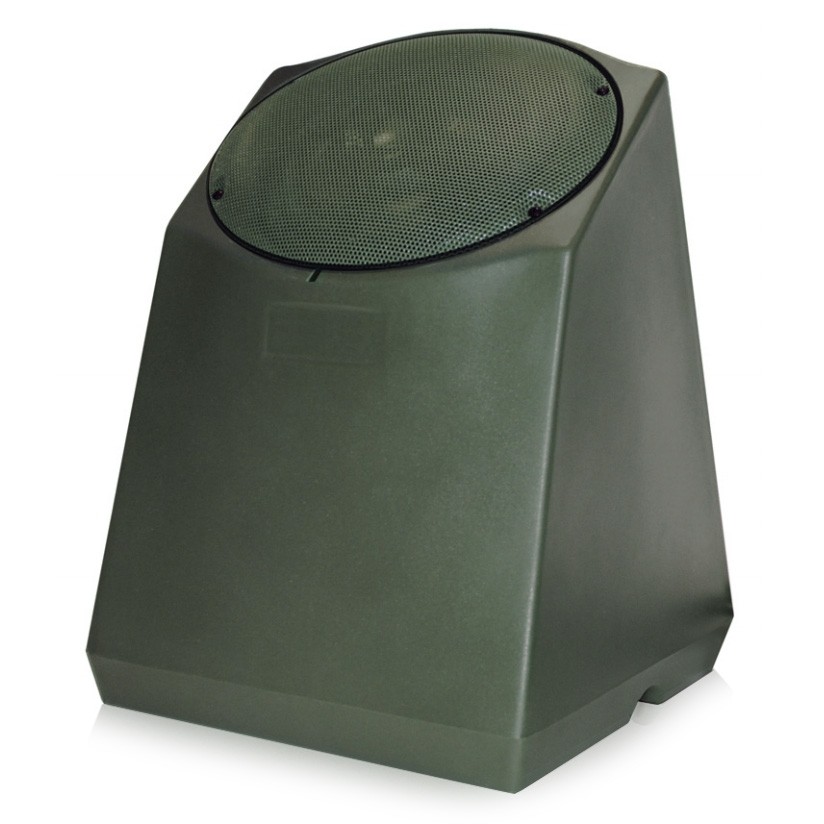

Bogen Communications G8G In-Ground All-Weather Loudspeaker (Discontinued)

Part # G8G
Model # G8G

The G8G in-ground, all-weather loudspeaker combines the best technologies ever developed for an outdoor loudspeaker system. An input pigtail is provided with multiple wire selection for 8-ohm or 70V operation.

Description

Details

The G8G in-ground, all-weather loudspeaker combines the best technologies ever developed for an outdoor loudspeaker system. From time-proven Metal Diaphragm Technology (MDT) to revolutionary Magnetic Liquid Suspension (MLS), superior sound is combined with superior weather durability.

The drivers are encased in a virtually indestructible molded polyethylene enclosure, with a stainless steel grille protecting the driver elements (tweeter and woofer). An input pigtail is provided with multiple wire selection for 8-ohm or 70V operation.

Features

Features

  • In-ground, outdoor, all-weather speaker with fullysealed enclosure
  • Sloped cabinet panels ensure pull-out resistance of the loudspeaker when buried
  • 8-Ohm or 70V taps included
  • Metal-alloy MDT™ woofer cone delivers natural sound with ultra-low distortion
  • Extremely stable, long-lasting MDT cone structure
  • High efficiency and power handling for optimum performance
  • Dual-layer voice coil with separate inner and outer windings for high output with ultra-low distortion
  • Patented MLS™ magnetic fluid voice coil suspension replaces distortion-causing mechanical spider
  • Compound rubber surrounds resist UV rays and salt spray and chemicals
  • Multiple input power connections
  • High-density, rotational-molded enclosure resists chipping, scratching, and damage from impact
  • Low-resonance cabinet structure
  • Corrosion-resistant driver frames
  • Wide coverage angles produce a broad sound field which provides even coverage throughout listening area
  • Available in green
Specification
Frequency Response (-10dB)45 Hz to 20 kHz
LF Driver8-inch Nominal Diameter Metal Alloy Cone utilizing patented MLS (Magnetic Liquid Suspension)
HF DriverCo-axial Design; 1" Titanium Cone
Sensitivity (1W/1m, 8Ω)91 dB SPL
Max. SPL (@ 1m)114 dB continuous, 120 dB Peak
Max. Power Input (cont.)150W (8Ω) or 64W (70V)
ImpedanceNominal 8Ω or 70V
Taps (70V Only)2W, 4W, 8W, 16W, 32W, 64W
Input Terminations8-Conducter Cable Color-Coded
EnvironmentalMeets or exceeds Mil-Std-810E, IEC IP56
Installation Hole Depth10-inches Max.
Enclosure MaterialLLDPE (Linked Low-Density Polyethylene, UV-Inhibited)
Enclosure ColorGreen
Dimensions (H x W x D)17.25" x 13" x 12.25"
Weight14 lbs
