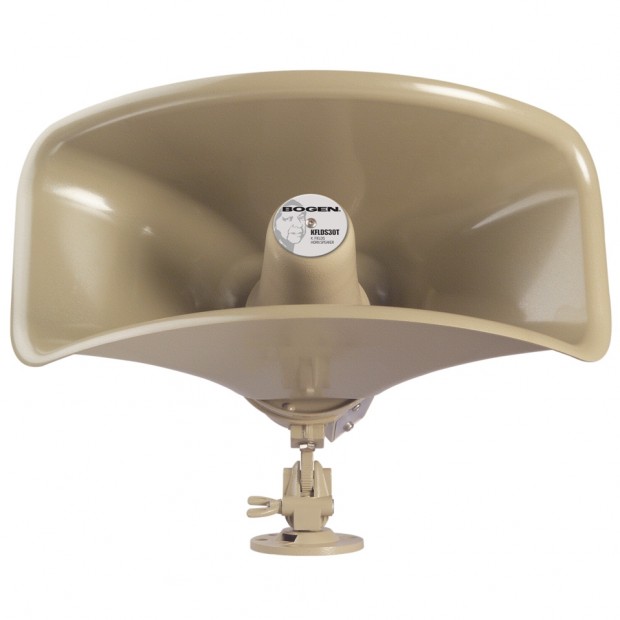

The Bogen KFLDS30T is a wide dispersion, high-intelligibility, reentrant-type horn loudspeaker designed for applications where wide-angle projection and directivity is a necessity. The flare-shaped horn can be rotated to project wider dispersion in either the horizontal or vertical plane.
The speaker’s all-purpose tilt-and-swivel base simplifies installation and positioning. Its sturdy, weatherproof, polycarbonate and aluminum construction is ideal for both indoor and outdoor use. Screw terminals make installation fast and easy. A plastic cover protects the connectors and 70V/25V tap selector switch, as well as provides strain relief for the audio line.
| Power Rating | 30 Watts continuous (70V amplified systems); 15 Watts continuous (25V amplified systems) |
|---|---|
| Frequency Response | 300 Hz to 12 kHz |
| Impedance | 25/70 volts |
| Power Taps | 70V: 1.8, 3.7, 7.5, 15, or 30 watts 25V: 0.25, 0.5, 0.9, 1.8, 3.7, 7.5, or 15 watts |
| Sound Pressure Level | 119 dB @ 1m on axis @ 30 watts (avg 400 Hz to 3 kHz) |
| Dispersion | 70° x 95°, rotatable horn flare |
| Finish | Textured mocha enamel finish on aluminum, matching polycarbonate horn flare |
| Dimensions (H x W xD) | 8.25" (209.55 mm) x 14.38" (365.26 mm) x 12.88" (327.15 mm) |
| Weight | 6 lbs (2.72 kg) |
