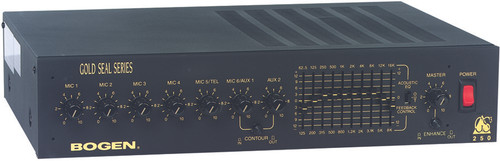

The Bogen GS250 Gold Seal Series Public Address Amplifier is designed to meet the rigorous requirements of todayʼs sophisticated sound systems. It combines unique and useable features with ultra high reliability and professional performance. This 250 watt model provides power and performance no matter how large or small the application.
The Bogen Gold Seal Series amplifiers are an extraordinary addition to Bogen's line of quality audio amplifiers. Designed with the sound contractor in mind, they provide unparalleled flexibility and versatility, without the need for add-on modules. In addition to its extensive flexibility, the Gold Seal Series amplifiers offer a combination of features not found in other commercial amplifiers.
| Power Rating | 250 watts |
|---|---|
| Frequency Response | 65 Hz to 20 kHz, +0/-2dB @ -2 dB, 20 Hz to 20 kHz, +0/-1dB @ rated power |
| Distortion | 0.5% (max.), 0.3% (typ.), 20 Hz to 20 kHz, 0.5% (max.), 0.3% (typ.), 65 Hz to 20 kHz @ -2 dB |
| Signal-to-Noise Ratio | Fundamental: -94 dB or better; AUX 1 & 2: -70 dB; TEL: -70 dB or better @ 600 ohms |
| Inputs/Outputs | |
| MIC | Lo-Z balanced via 4 XLR connectors and 2 screw terminals |
| Sensitivity | 0.35mV (200 ohms) |
| AUX | Hi-Z RCA jacks; Sensitivity: 0.085V (10k ohms) |
| Telephone | Screw terminals Sensitivity: 0.07V (600 ohms) |
| Dual Sound EQ | Acoustic Mode - 62.5 Hz, 125, 250, 500, 1 kHz, 2, 4, 8, 12, 16 |
| Output Impedance | balanced or unbalanced 8-ohm |
| Output Regulation | Better than 2 dB from no load to full load |
| Variable Mute Range | 4 steps: -60, -21, -10, 0 dB (AUX 1 & 2) |
| ALC | Distortion: less than 0.5%; Compression: 25 dB (TEL) |
| Overload Protection | Electronic with automatic reset |
| Thermal Protection | 105°C (220°F) thermistor attached to heat sink |
| Operating Temperature Range | -10°C (14°F) to 60°C (140°F) |
| Thermal Emissions | 847 BTU/hr |
| Line Fusing | 7A/125V AC Slo-Blo |
| AC Input Voltage | 120V AC |
| AC Current | 5.0A |
| Power Consumption | 480 watts, 120V AC, 60 Hz |
| Dimensions (H x W x D) | 3.5" (88.9 mm) x 16.5" (419.1 mm) x 12" (304.8 mm) |
| Product Weight | 30 lbs (13.60 kg) |
