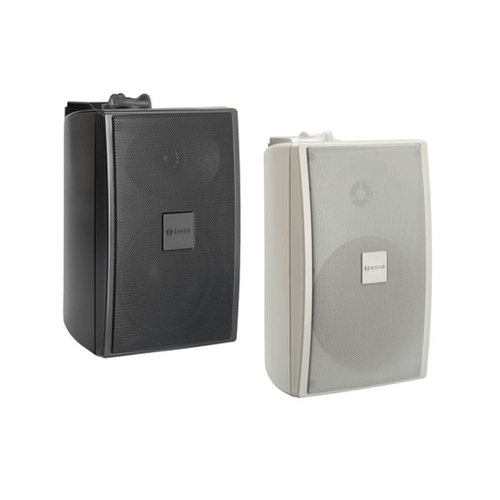

Bosch LB2-UC15 Premium-Sound Cabinet Loudspeaker (Discontinued)

Part # LB2-UC15
Model # LB2-UC15

The Bosch LB2-UC15 Cabinet Loudspeaker are intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. The Premium‐sound cabinet loudspeaker range consists of a 15W model and have selectable 8 ohm, 70V and 100V inputs.

Description

Details

The LB2-UC15 premium‐sound cabinet loudspeakers are intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. The Premium‐sound cabinet loudspeaker range consists of a 15W model, available in a light or dark color. The LB2-UC15 loudspeakers have selectable 8 ohm, 70V and 100V inputs. Typical applications consist of theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centre’s and presentation environments.

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268‐5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that the speakers can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to greater customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.

Features

Features

  • High-fidelity music and speech reproduction
  • Selectable 8 ohm, 70V and 100V inputs
  • Compact yet robust ABS enclosure
  • Supplied with adjustable mounting bracket
  • Complies with international installation and safety regulations
Specification
Maximum Power45W
Rated Power (PHC)30W
Power Tapping30 / 15 / 7.5 / 3.75W
Sound Pressure Level105 / 90 dB (SPL) at rated power / 1W (1 kHz, 1 m)
Effective Frequency Range (-10 dB)100 Hz to 18.5 kHz
Opening Angle at 1 kHz / 4 kHz (-6 dB)160° / 81° (horizontal) 150° / 90° (vertical)
Rated Input Voltage15.5 / 70 / 100V
Rated Impedance8 / 163 / 333 ohm
Transducers5” (127 mm) woofer, 0.51“ (13 mm) dome tweeter
Connection78.8" (2 m) two‐wire cable
Operating Temperature-25°C to +55°C (-13°F to +131°F)
Storage Temperature-40°C to +70°C (-40°F to +158°F)
Relative Humidity<95%
Dimensions (H x W x D)8.07" (205 mm) x 5.35" (136 mm) x 4.60" (117 mm)
Weight5.29 lbs (2.4 kg)
