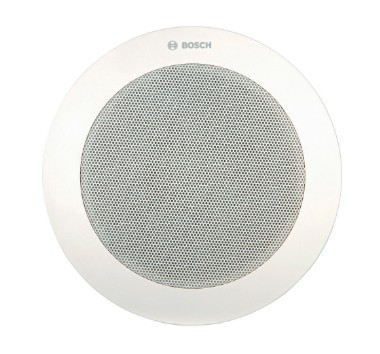

Bosch LC4-UC24E In-Ceiling Loudspeaker (Discontinued)

Part #:
F.01U.217.142
Model #:
LC4-UC24E
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Bosch LC4-UC24E In-Ceiling Loudspeaker provides excellent speech and music in indoor public address applications. It also ensures a wide and equal spread of all octave frequencies and eliminates high‐frequency beaming.

Description

The LC4-UC24E ceiling loudspeaker is a light and compact unit with an unobtrusive, neutral designed front grille. It offers 24 W of power and a wide opening angle, ensuring a wide and equal spread of the important frequency octaves for speech intelligibility and music clarity. It also includes a back‐box and metal fire‐dome.

The LC4-UC24E Ceiling Loudspeaker can be used for a wide variety of ceiling environments. It provides excellent speech and music in indoor public address applications. New CosCone driver technology, used in this loudspeaker delivers outstanding sound quality from a small sized unit. It also ensures a wide and equal spread of all octave frequencies and eliminates high‐frequency beaming. Fewer loudspeakers are needed to cover a given area, and the noticeable “fading” that can occur as a listener walks from one loudspeaker to another area is eliminated

Features

  • Innovative CosCone full range driver
  • Excellent speech and music reproduction
  • Unrivalled opening angle for all octave frequencies
  • Paintable grille
  • EN 54‑24, UL2043, UL1480 certified

Specifications

Maximum power 36 W
Rated power 24 W (24/12/6/3 W)
Sound pressure level at 6 W power / 1 W (1 kHz, 1 m) 101 dB / 87 dB (SPL)
Opening angleat 1 kHz / 4kHz (-6 dB) 180° / 180°
Effective frequency range (-10 dB) 65 Hz to 20 kHz
Rated voltage 13.9 / 70 / 100 V
Rated impedance 8 / 208 / 417 Ohm
Electrical connection 4‐way screw terminal block
Acceptable wire gauge 0.5 – 3 mm2
Diameter 7.87" (200 mm)
Mounting cut‐out 6.38" (162 mm)
Min./Max. ceiling thickness 0.19" to 1.97" (5 to 50 mm)
Weight 2.18 lbs (0.98 kg)
