Bose Classroom Sound System with 4 FreeSpace DS 16F Loudspeakers and FreeSpace IZA 190-HZ Amplifier (Discontinued)
Part # CRSS-4DS16FIZA190HZ
Model # CRSS-4DS16FIZA190HZ

This classroom sound system with 4 Bose FreeSpace in-ceiling speakers is excellent for classrooms, their performance and value make this well suited for music and speech reproduction and includes an extremely reliable wireless handheld microphone.

Availability: Contact Us for Comparable Solutions

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Bose Classroom Sound System with 4 In-Ceiling Speakers and Wireless Handheld System

This sound system with 4 Bose FreeSpace in-ceiling speakers is excellent for classrooms and educational applications, their performance and value make this well suited for clear, natural-sounding speech reproduction. This teacher classroom microphone system will enhance speech intelligibility, comprehension, and retention for students while you save your voice! This system also includes a 90W Bose amplifier, an extremely reliable Samson wireless handheld microphone, tile bridges and the needed cables and speaker wire to get your system up and running.

Key Features:

    • Covers up to 1,600 square feet
    • Save your voice and allow students to hear clearly
    • High-performance, full-range, flush-mount Bose speakers
    • Wide, even 140° audio coverage
    • Sound with notable presence, detail and clear, natural-sounding speech reproduction
    • Meets numerous standards for music and evacuation systems
    • IZA 190-HZ integrated zone amplifier provides signal processing, routing, paging and amplification
    • Easy-to-use input connections (mic/line/page)
    • Delivers premium sound, provides simplified set up and easy daily operation
    • Easy system expansion possible
    • Samson Concert 99 handheld mic provides high-definition audio and extreme reliability
    • Simple 1-touch setup and convenient monitoring
    • 300' UHF operating range and impressive transmitter battery life
    • Reliable wireless freedom for educators

Features

Features

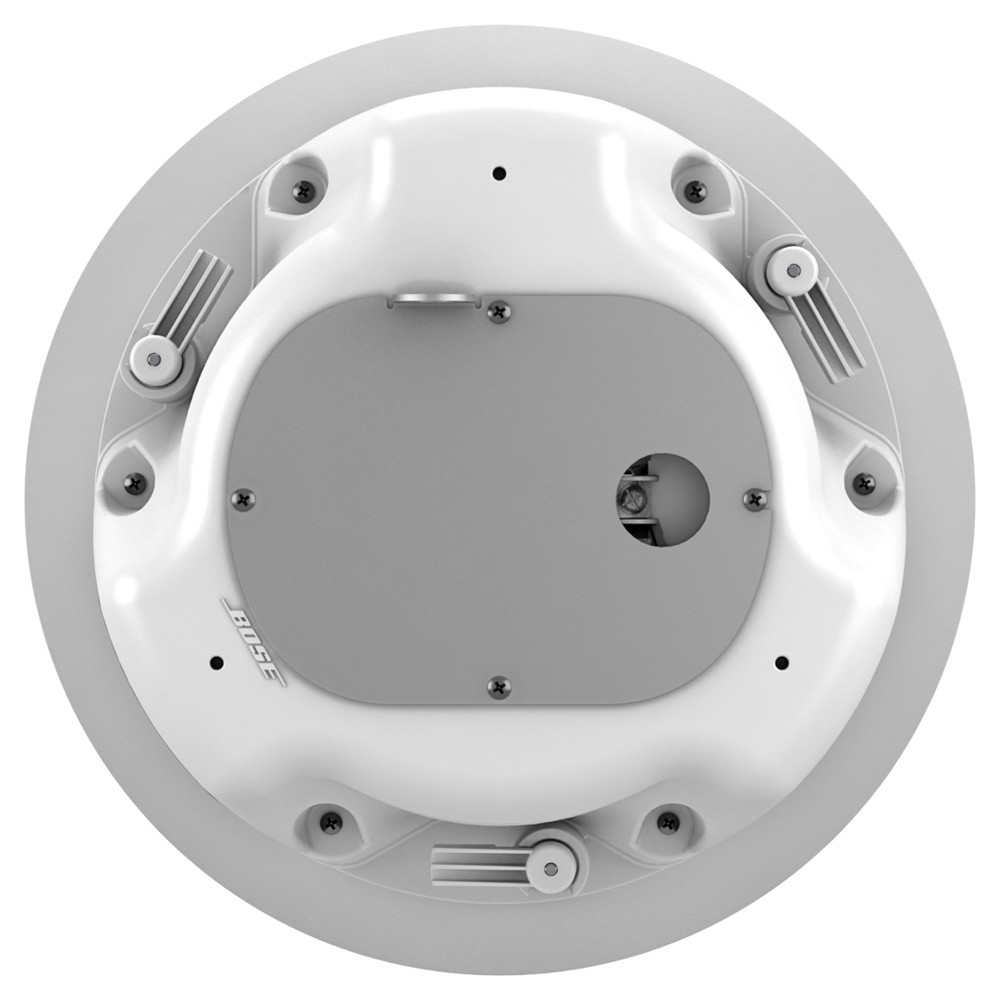

Bose® FreeSpace® DS 16F In-Ceiling Loudspeakers:

  • Clear, intelligible music and speech reproduction
  • Full-range response from 90 Hz to 16 kHz
  • Wide, even 140° conical coverage pattern
  • Single 2.25" (57mm) full-range driver
  • Integrated multi-tap transformer provides easy-to-change tap settings that are accessible underneath the loudspeaker grille:
    • 70V – 1W, 2W, 4W, 8W, 16W
    • 100V – 2W, 4W, 8W, 16W
  • Can be used as an 8Ω, 16W loudspeaker
  • Can be combined with the FreeSpace DS 16S (indoor) and DS 16SE (outdoor) surface-mount loudspeakers on the same line
  • Mounting hardware permits fast and easy ceiling installation
  • Elegant, modern styling that blends with décor; available in black or white and can be painted
  • Combine with FreeSpace 3 Acoustimass® bass module for extended range applications
  • Listed to ANSI/UL 1480-2005
  • Suitable for use in air handling (plenum) spaces with the use of the PC-16 accessory

Bose® FreeSpace® IZA 190-HZ Integrated Zone Amplifier:

  • Selectable Bose loudspeaker EQ presets optimize performance of FreeSpace DS 16 and FreeSpace DS 40 loudspeakers
  • High pass filter (40 Hz for 250-LZ; 60 Hz for 190-HZ) available for use with other passive FreeSpace loudspeakers
  • Bose® Dynamic Equalization circuitry automatically adjusts tone based on the output level to maintain tonal balance at all volume levels
  • Bose® Opti-voice automatically provides a smooth transition between music and page signals

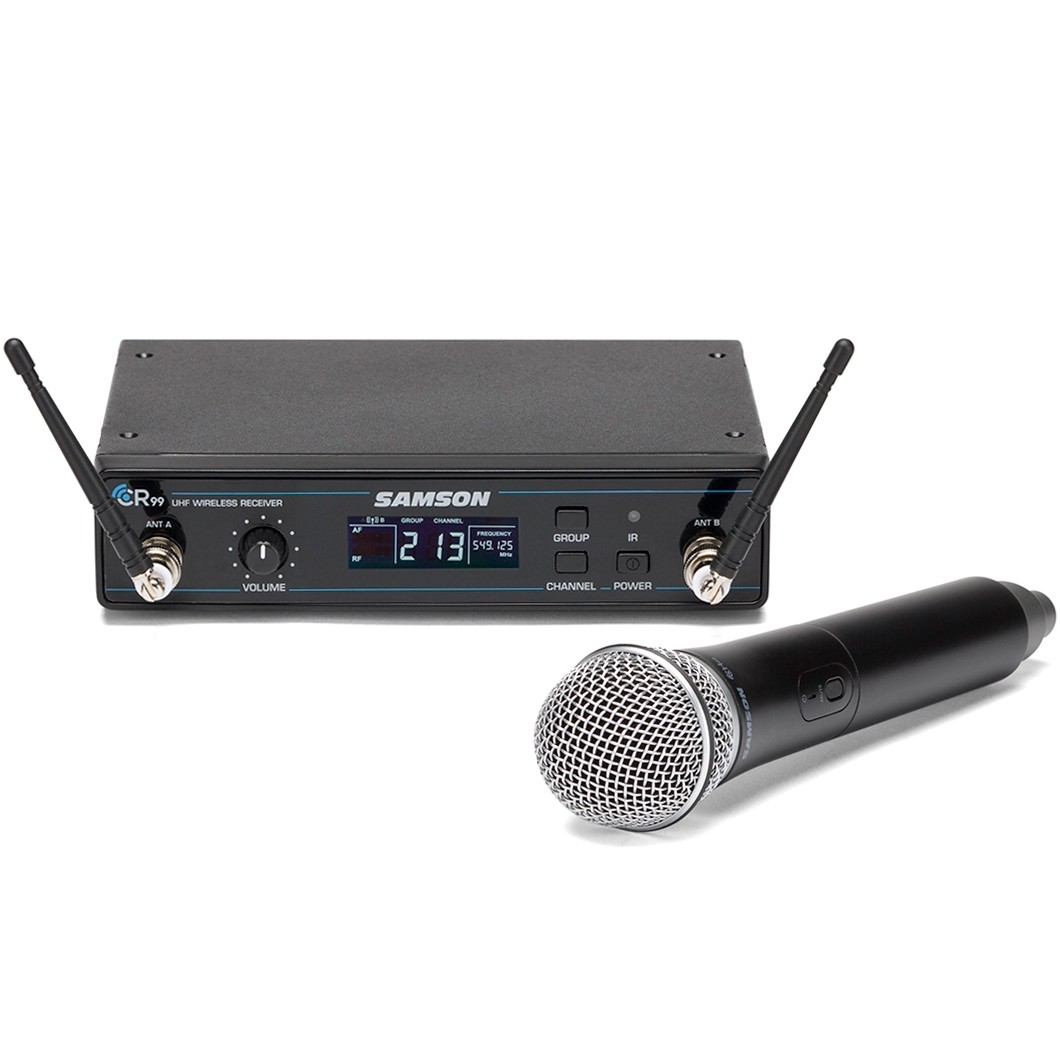

Concert 99 Handheld System:

  • Frequency-agile UHF wireless system
  • 80 operating channels across 24MHz bandwidth
  • Up to eight simultaneous systems per frequency band (region dependent)
  • AC adapter and rackmount kit included
  • Rugged all-metal, rack mountable chassis
  • Multifunctional backlit LCD (RF, audio, transmitter battery levels)
  • Group scan for easy single or multi-system setup
  • IR sync wirelessly matches receiver and transmitter frequency
  • True RF Diversity design minimizes dropouts
  • Tone Key technology prevents interference
  • Removable 1/4-wave antennas
  • Balanced XLR and 1/4" outputs
  • Q8 Professional Dynamic Microphone capsule
  • Offers up to eight hours of battery life using two AA batteries
  • 300' operating range (line-of-sight)
  • Variable Gain control
  • 1-touch Mute
System Includes

System Includes

  • (4) Bose FreeSpace DS 16F Loudspeakers
  • (1) Bose FreeSpace IZA 190-HZ Integrated Zone Amplifier
  • (1) Samson Concert 99 Handheld Frequency Agile UHF Wireless System
    • (1) CH99 Handheld Microphone

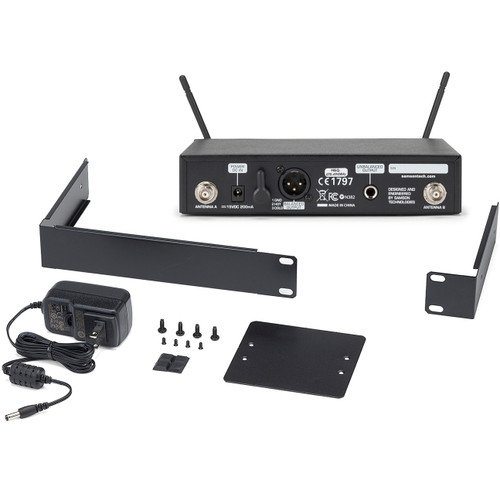

    • (1) CR99 Wireless Receiver
    • (1) AC Adapter
    • (1) Rackmount Kit
    • Owner’s Manual
  • (4) Bose FreeSpace DS 16F Tile Bridges

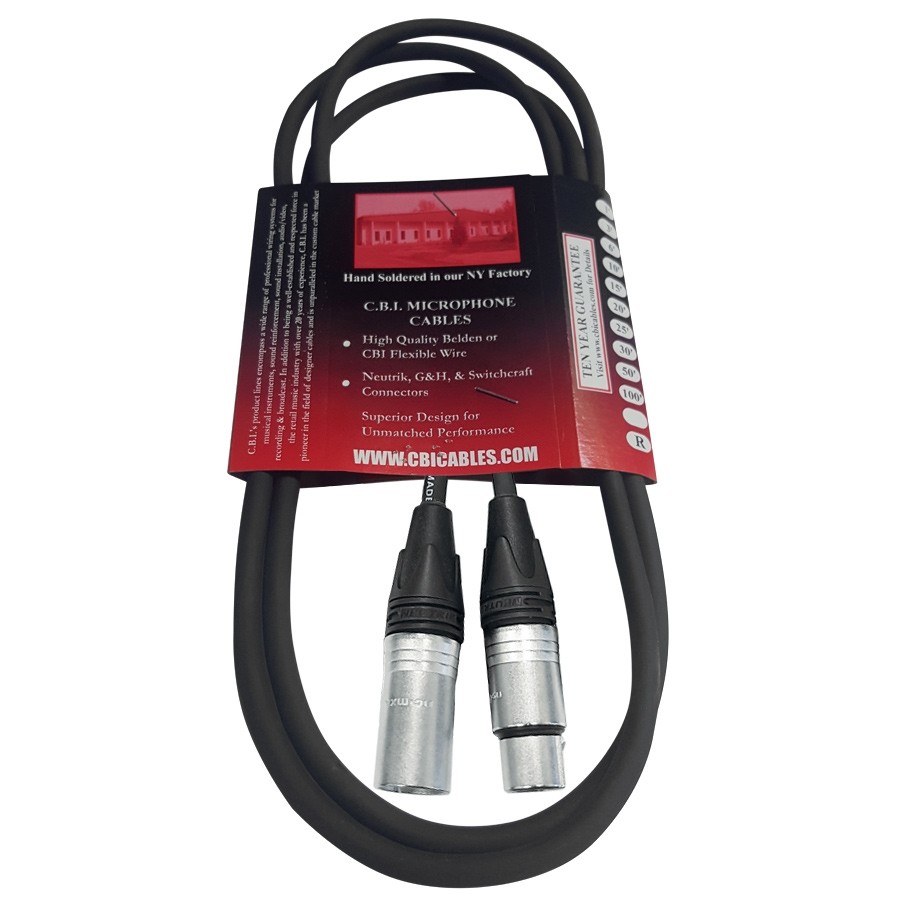

  • (1) CBI MLN-6 Performer Series XLR Microphone Patch Cable - 6ft

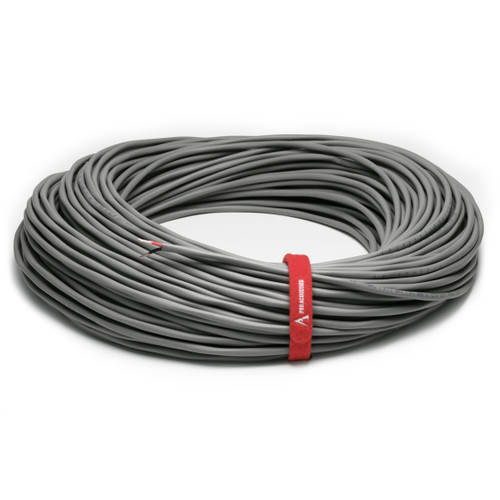

  • (100') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
