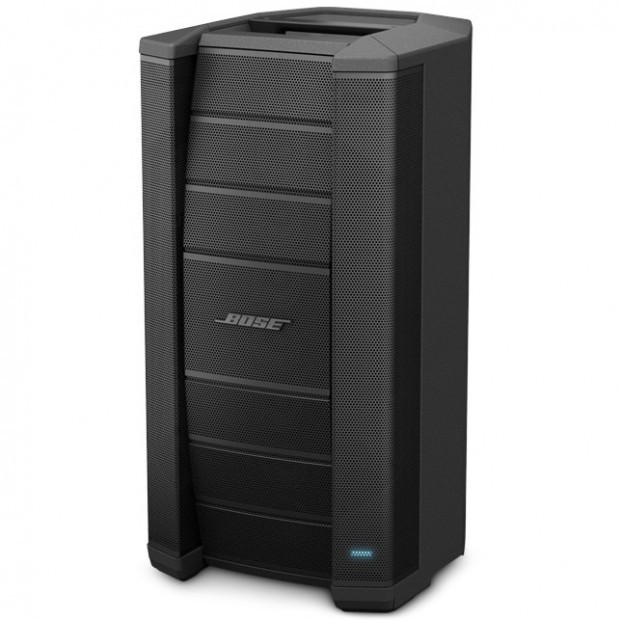

Bose F1 Model 812 Powered Portable Loudspeaker Package for Surface Mount Applications

Powerful, standalone sound that flexes to meet your coverage needs — the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes.

This is the first powered portable loudspeaker that lets you control its vertical coverage pattern. Simply push or pull the array into position to create "Straight," "C," "J" or "Reverse J" coverage patterns. Once set, the system automatically changes the EQ to maintain optimum tonal balance for each coverage pattern. So whether you’re playing at floor level, on a stage, or facing raked seats or bleachers, you can now adapt your PA to match the room. With the Bose F1 Model 812, your sound stands alone.

The U-bracket mounting kit allows for ±115 degrees of rotation to adjust the coverage angle for wall and ceiling-mounted installations. When the F1 Model 812 active loudspeaker is mounted horizontally, use the flexible array to adjust the horizontal coverage pattern for each loudspeaker by up to 40 degrees, and the U-bracket to adjust the vertical mounting angle and direct the loudspeaker's 100 degrees of vertical coverage. This vertical and horizontal flexibility maximizes coverage with each loudspeaker and supports asymmetrical configurations to reduce side wall reflections and improve clarity. You can also mount the F1 Model 812 loudspeaker vertically, using the flexible array to adjust the vertical coverage pattern and the U-bracket to adjust the horizontal mounting angle. The Bose® logo on the loudspeaker can be adjusted for horizontal mounting.

Applications:

• Live music performances
• Bands of all styles
• Solo musicians
• Mobile DJs
• Houses of worship
• Schools and universities
• Resorts and hospitality venues
• Business presentations



Bose F1 Model 812 Powered Loudspeakers:

• Powerful full-range loudspeaker with 132 dB max SPL and low-frequency performance down to 43 Hz (-10 dB)
• Portable, standalone design with built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12" high-power woofer
• Lower crossover point than conventional loudspeakers for clear and natural vocals even at high volumes
• Flexible Array technology: easily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more
• Automatic EQ adjusts to maintain optimum tonal balance for each coverage pattern
• Built-in handles for easy transport and compatible with standard 35 mm speaker stands (sold separately



Bose F1 U-Bracket Mounting Kits:

• Fits F1 Model 812 active and passive loudspeakers
• Horizontal or vertical mounting of Loudspeaker
• ±115° of rotation to adjust the coverage angle
• Single axis point provides easy rotational adjustment
• Attaches to the M8 threaded inserts in the top handle and the F1 Stand Mount Interface inserts

F1 Model 812 Technical Data Sheet

F1 Model 812 Owner's Guide

Brochure

F1 U-Bracket Technical Data Sheet

Installation Guide

• (2) Bose F1 Model 812 Powered Loudspeakers
• (2) Bose F1 U-Bracket Mounting Kits
