Bose Professional FreeSpace 3 Series II Acoustimass Flush Mount Bass Module - Black (Discontinued - Limited Stock)
By Bose Professional

Bose Professional FreeSpace 3 Series II Acoustimass Flush Mount Bass Module - Black (Discontinued - Limited Stock)

Write a Review
Part #:
843090-0110
Model #:
FreeSpace 3 Series II Acoustimass Module
Availability: Limited Stock - Order Now! Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Bose FreeSpace FS3 Series II Acoustimass Module is designed to provide flush-mount or surface mount bass augmentation for new and existing background music systems. It features one 5.25" (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.

Description

The Bose FreeSpace 3 Series II Acoustimass Module is designed to provide flush-mount or surface mount bass augmentation for new and existing background music systems. It features one 5.25" (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.

Features
  • Low-frequency loudspeaker featuring one 5.25" (133 mm) woofer
  • Acoustimass speaker technology filters out audible distortion to deliver non-localized bass
  • Designed to work with the FreeSpace 3 flush and surface satellite speakers, or existing systems where additional bass reinforcement is desired
  • Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
  • Plenum rated for use in air handling spaces (with optional plenum cover)
  • Selectable 70/100V or low impedance with transformer tap adjustment under speaker grille

Specifications
Performance
Frequency Response (+/-3 dB) 50 Hz - 230 kHz
Frequency Range (-10 dB) 40 Hz - 315 kHz
Nominal Dispersion Omni-directional below 200 Hz
Recommended High-Pass Filter 40 Hz high-pass filter
Loudspeaker EQ Recommended
Overload Protection PTC
Long-Term Power Handling 70/100V: 200W (800W peak) mono
Low impedance: 50W (200W peak) per channel stereo or 100W (400W peak) mono
Sensitivity (SPL / 1W @ 1 m) Per channel: 76 dB SPL (Mono: 79 dB SPL)
Maximum SPL @ 1 m Per channel: 96 dB SPL (102 dB SPL peak) Mono: 102 dB SPL (108 dB SPL peak)
Nominal Impedance 6Ω mono direct (transformer bypassed)
Transformer Taps (70/100V) 25W, 50W, 100W, 200W
Transducers
Driver Compliment 5.25" (133 mm) dual voice coil low frequency driver
Physical
Enclosure PC/ABS
Grille Expanded metal grille
Environmental Indoor use only
Connectors Multi-position screw-type barriers
Suspension / Mounting Integral quick-install mounting, three mounting point at the rear of the housing for pendant mounting
Outer Flange Diameter (Flush-Mount Speaker) 15.4" (391 mm)
Depth (Flush-Mount Speaker) 7.5" (190 mm)
Ceiling Hole Diameter (Flush-Mount Speaker) 14.3" (362 mm)
Ceiling Thickness (Maximum) 1.8" (48 mm)
Surface Mount Subwoofer Dimensions (H x W x D) 14" (356 mm) x 7.5" (191 mm) x 13.5" (342 mm)
Net Weight 14 lbs (6.4 kg)
Shipping Weight 17.5 lbs (7.9 kg)

DOCUMENTS

Related Products

Bose Professional FreeSpace 3 Series II Acoustimass Flush Mount Bass Module - White (Discontinued - Limited Stock)

Bose Professional FreeSpace 3 Series II Acoustimass Flush Mount Bass Module - White (Discontinued - Limited Stock)

The Bose FreeSpace 3 Series II Acoustimass Module is designed to provide flush-mount or surface mount bass augmentation for new and existing background music systems. It features one 5.25" (133 mm)...
MSRP: $399.00
$359.00

Usually arrives in 5-9 business days.

MSRP: $399.00
$359.00
Add to Cart The item has been added

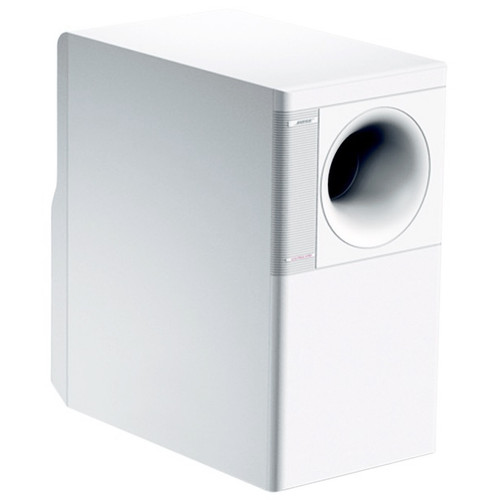

Bose Professional FreeSpace 3 Series I Surface Mount Acoustimass Module - White (Discontinued - Limited Stock)

Bose Professional FreeSpace 3 Series I Surface Mount Acoustimass Module - White (Discontinued - Limited Stock)

The Bose FreeSpace 3 Series I Acoustimass Module is designed to provide flush-mount or surface mount bass augmentation for new and existing background music systems. It features one 5.25" (133 mm)...
MSRP: $549.00
$499.00

Usually arrives in 5-9 business days.

MSRP: $549.00
$499.00
Add to Cart The item has been added

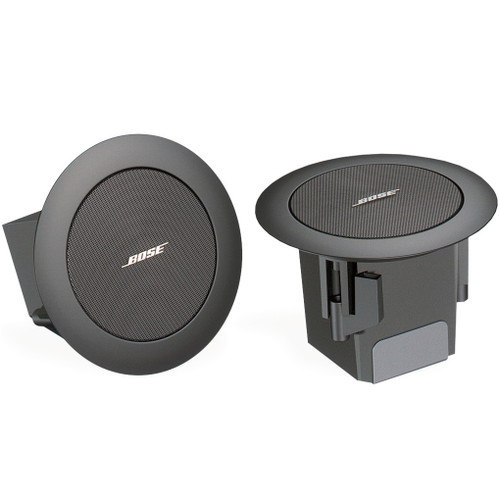

Bose Professional FreeSpace 3 Flush Mount Satellite Speakers - Black Pair (Discontinued - Limited Stock)
