By Bose Professional

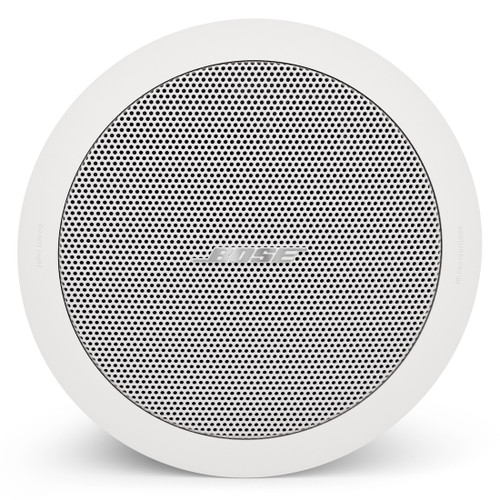

Bose Professional FreeSpace FS2C Ceiling Loudspeaker Contractor 6-Pack with Adjustable Tile Bridges - White
Write a Review
Bose Professional FreeSpace FS2C Ceiling Loudspeaker Contractor 6-Pack with Adjustable Tile Bridges - White
Part #:
CTPK-6FS2CWHT
Model #:
CTPK-6FS2CWHT
Availability:
Usually arrives in 5-9 business days.
Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
Bose FreeSpace FS2C Ceiling Loudspeaker Designed for High-Quality Performance

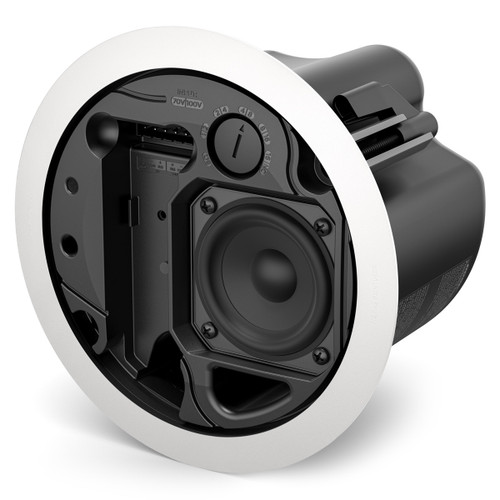

The Bose ceiling-mount FS2C features a full-range 2.25" cone transducer, low frequency range down to 85 Hz, 16-ohm and 70/100V operation, with front baffle-mounted tap settings, and front baffle audio connections on a detachable Euroblock connector.
FreeSpace FS loudspeakers are designed for high-quality performance in both background music and voice announcement applications. Redesigned enclosures and aesthetics, removable logos, metal backcans on ceiling-mount models, and ease-of-installation features mean that this update to the classic FreeSpace FS line is ideal for installations in almost any commercial space.

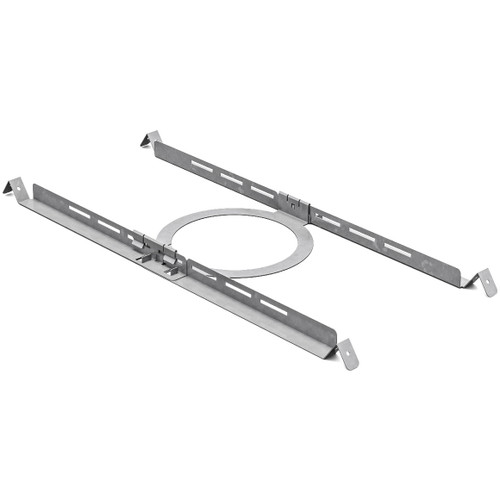

The FreeSpace FS2C adjustable tile bridges are intended for installations that require a tile bridge that can fit through a loudspeaker hole in the ceiling or off-center mounting in a hung ceiling tile.
Speaker Accessories: Each FS2C includes one (1) cut-out template per box
Safety Ratings: Certification: UL 1480, ULC-S541 for Fire Alarm and Signaling Systems, UL2043 plenum-rated backcan and front baffle audio wiring access
Applications:
- Retail stores
- Restaurants and bars
- Concourses
- Transportation facilities
- Resorts and hospitality venues
Features
- Full-range 2.25-inch transducer, low-frequency range down to 83 Hz, 16-ohm, and 70/100V operation
- Front baffle-mounted tap settings and front-baffle audio connections
- Pick your power — FS2 models feature a 2.25-inch full-range transducer, low frequency down to 83 Hz, 16-ohm and 70/100V operation
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
- Bring quality sound to more places
- Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
- Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications
Specifications
| Frequency Response (-3 dB) | 95 – 16,000 Hz |
|---|---|
| Frequency Range (-10 dB) | 83 – 19,000 Hz |
| Nominal Coverage Angle | 150° |
| Nominal Coverage (1 - 10 kHz) | 145° |
| Power Handling, Long-Term Continuous | Bose extended-life cycle test: 16W AES transducer test: 20W |
| Power Handling, Peak | Bose extended-life cycle test: 64W AES transducer test: 80W |
| Sensitivity (SPL/1W @ 1 m) | Bose extended-life cycle test: 86 dB AES transducer test: 86 dB |
| Calculated Maximum SPL @ 1 m | Bose extended-life cycle test: 98 dB AES transducer test: 99 dB |
| Calculated Maximum SPL @ 1 m, Peak | Bose extended-life cycle test: 104 dB AES transducer test: 105 dB |
| Loudspeaker EQ | No Bose EQ required when speaker used for general use. Bose EQ Voicing and SmartBass available. EN54-24 Equalization is required for EN54-24 use; refer to FS2P EN54-24 Certified ratings document on pro.bose.com for details |
| Recommended High-Pass Protection | 85 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 1, 2, 4, 8, 16W, bypass 100V: 2, 4, 8, 16W, bypass |
| Full-Range Driver | 1 x 2.25-inch woofer (57 mm) |
| Nominal Impedance | 16 ohms (transformer bypass) |
| Enclosure Material | Enclosure Material Engineered-plastics front baffle with integrated steel formed back can |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Color | White: similar to Ral 9003 |
| Environmental | Indoor only, suitable for use in plenum locations |
| Safety Agency | Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for Speakers for Fire Alarm and Signaling Systems, in compliance with UL 2043 for plenum-space installation. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32 For EN54-24 specifications, refer to FS2C EN 54-24 Certified Ratings document on pro.bose.com. EN54-24 equalization required for EN54-24 use |
| Operating Temperature Range | 0 °C to 50 °C (32 °F to 122 °F) |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire |
| Suspension/Mounting | Two (2) standard mounting arms plus one (1) safety cable tab |
| Wire/Conduit Entry | Top and side wire entry-point 12.7 mm (1/2 in) knockouts allow for 9.5 mm (3/8 in) conduit and fittings |
| Optional Accessories | Adjustable Tile Bridge (6-pack), DesignMax DM2CRI Rough-in kit (6-pack), Retrofit Kit (2-pack), Ceramic terminal w/ Fuse kit |
| Maximum Ceiling Thickness | 1.5" (38 mm) |
| Ceiling Cutout | 6.3" (160 mm) |
| Backcan Dimensions (Dia x D) | 5" (127 mm) x 4.9" (125 mm) |
| Dimensions (Baffle Dia x D) | 7.2" (183 mm) x 5.2" (132 mm) |
| Net Weight | 3.6 lbs (1.63 kg) |
DOCUMENTS
Package Includes
- (6) Bose FreeSpace FS2C 2.5" Ceiling Loudspeakers
- (6) Bose FreeSpace FS2C Adjustable Tile Bridges
