Bose Professional FreeSpace FS4CE Ceiling Loudspeaker Contractor 6-Pack with Adjustable Tile Bridges - Black

Part #:
CTPK-6FS4CEBLK
Model #:
CTPK-6FS4CEBLK
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

This Bose Freespace FS4CE commercial ceiling mount speaker contractor pack includes 6 high-quality 4.5" ceiling loudspeakers and 6 adjustable tile bridges for use in indoor and outdoor applications such as restaurants, retail stores, offices, hotels, lobbies, and much more.

Description

Bose FreeSpace FS4CE Indoor/Outdoor Ceiling Loudspeaker Designed for High-Quality Performance

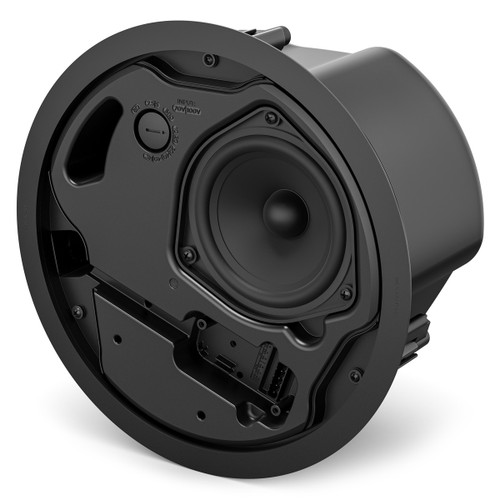

The ceiling-mount FS4CE features a full-range 4.5" cone transducer, low frequency range down to 70 Hz, 8-ohm and 70/100V operation, with front baffle-mounted tap settings, and front baffle audio connections on detachable Euroblock connector. The FS4CE is also iP55 rated for outdoor installation.

FreeSpace FS loudspeakers are designed for high-quality performance in background music and voice announcement applications. Redesigned enclosures and aesthetics, removable logos, metal backcans on ceiling-mount models, and ease-of-installation features mean that this update to the classic FreeSpace FS line is ideal for installations in almost any commercial space.

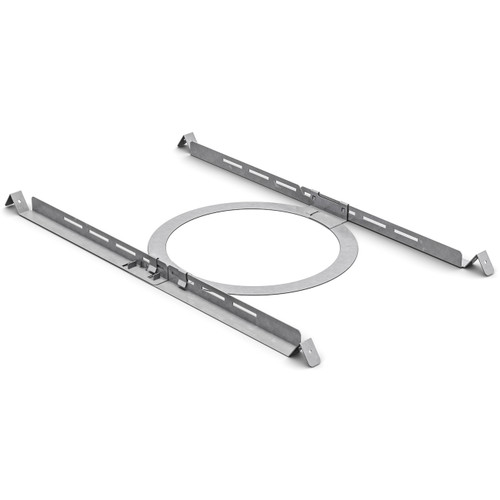

The FreeSpace FS4CE adjustable tile bridges are intended for installations that require a tile bridge that can fit through a loudspeaker hole in the ceiling or off-center mounting in a hung ceiling tile.

Speaker Accessories: Each FS4CE includes one (1) weather-resistant input cover, one (1) cut-out template per box

Install Outdoors: The FS4CE is iP55 outdoor rated

Safety Ratings: Certification: UL 1480, ULC-S541 for Fire Alarm and Signaling Systems, UL2043 plenum-rated backcan and front baffle audio wiring access

Applications:

  • Retail stores
  • Restaurants and bars
  • Concourses
  • Transportation facilities
  • Resorts and hospitality venues

Features

  • Full-range 4.5-inch transducer, low-frequency range down to 70 Hz, 8-ohm and 70/100V operation
  • Front baffle-mounted tap settings and front-baffle audio connections
  • Handles the weather, designed for outdoor wet installation
  • Maintain consistent tonal quality with shared voicing across all FS models
  • Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
  • Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
  • Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
  • Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
  • Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications

Specifications

Frequency Response (-3 dB) 80 - 16,000 Hz
Frequency Range (-10 dB) 70 – 17,000 Hz
Nominal Coverage Angle 145°
Nominal Coverage (1 - 10 kHz) 115°
Power Handling, Long-Term Continuous Bose extended-life cycle test: 40W
AES transducer test: 50W
Power Handling, Peak Bose extended-life cycle test: 160W
AES transducer test: 200W
Sensitivity (SPL/1W @ 1 m) Bose extended-life cycle test: 88 dB
AES transducer test: 88 dB
Calculated Maximum SPL @ 1 m Bose extended-life cycle test: 104 dB
AES transducer test: 105 dB
Calculated Maximum SPL @ 1 m, Peak Bose extended-life cycle test: 110 dB
AES transducer test: 111 dB
Loudspeaker EQ Not Required, Bose EQ Voicing and SmartBass available
Recommended High-Pass Protection 70 Hz with minimum 24-dB/octave filter
Overload Protection Resistor-network power reduction with automatic reset
Transformer Taps 70V: 2.5, 5, 10, 20, 40W, bypass
100V: 5, 10, 20, 40W, bypass
Full-Range Driver 1 x 4.5-inch woofer (114 mm)
Nominal Impedance 8 ohms (transformer bypass)
Enclosure Material Engineered-plastics front baffle, highly UV fade resistant, with integrated steel formed back can
Grille Perforated steel, powder-coated finish
Logo Rotatable, removable
Color Black: similar to Ral 9005
Environmental/Ingress-Protection Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for Speakers for Fire Alarm and Signaling Systems, in compliance with UL 2043 for plenum-space installation. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32 For EN54-24 specifications, refer to FS4CE EN 54-24 Certified Ratings document on pro.bose.com. EN54-24 equalization required for EN54-24 use
Safety Agency Certification: UL 1480, ULC-S541 for Fire Alarm and Signaling Systems
Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32, in accordance with IEC60268-5, CE RoHS
Operating Temperature Range -25 °C to 70 °C (-13 °F to 158 °F)
Connectors Euroblock 6-pin connector with loop-through, front-baffle mounted.
Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
Wire/Conduit Entry Wire/Conduit Entry Top and side wire entry point 1/2-inch knockouts allow for 9.5 mm (3/8 in) conduit and fittings
Suspension/Mounting Suspension/Mounting Three (3) standard mounting arms plus one (1) safety cable tab
Optional Accessories Adjustable Tile Bridge (6-pack), DesignMax DM2CRI Rough-in Pan (6-pack), Retrofit Kit (2-pack), Ceramic Terminal and Thermal Fuse Kit (10-pack), Aluminum Grille kit (2-pack)
Maximum Ceiling Thickness 1.5" (38 mm)
Ceiling Cutout 9.84" (250 mm)
Backcan Dimensions (Dia x D) 8.7" (220 mm) x 6.4" (163 mm)
Dimensions (Baffle Dia x D) 10.71" (272 mm) x 6.8" (172 mm)
Net Weight 7.65 lbs (3.47 kg)

DOCUMENTS

Package Includes

  • (6) Bose FreeSpace FS4CE 4.5" Ceiling Loudspeakers
  • (6) Bose FreeSpace FS4CE Adjustable Tile Bridges
