Inside the Design
The Bose high-output, full-range fitness sound system allows you to stream music wirelessly using a Sonos Port and the Sonos app, creating a powerful streaming audio system to enhance your workout experience. This turnkey sound system is ideal for large fitness centers of about 5,000 sq ft, including the main floor, cardio area, tanning beds, locker rooms, and hallways. The system includes sixteen Bose DesignMax DM6PE 6.5" pendant loudspeakers, four Bose FreeSpace FS2P 2.25" pendant loudspeakers, a Sonos Port wireless streaming component, and Pure Resonance Audio VC100W 100W Decora wall volume controls for convenient local volume adjustment.
Sound System Features:
- Up to 5,000 sq. ft. of coverage
- Professional high-performance Bose pendant speakers fit a variety of open ceiling spaces
- Stream virtually any audio source through the Sonos Port using WiFi or connect compatible audio sources to create a flexible streaming system
- Extremely versatile Crown CDi 4000 power amplifier is a professional tool designed and built for installed sound applications
- Pure Resonance Audio VC100W 100W Decora wall volume controls provide convenient local volume adjustment with smooth attenuation for distributed audio systems
- Easy to install and operate with lifetime technical support from our knowledgeable staff
About the System Components

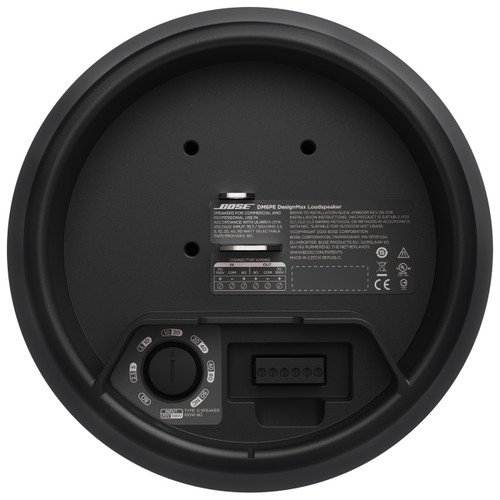

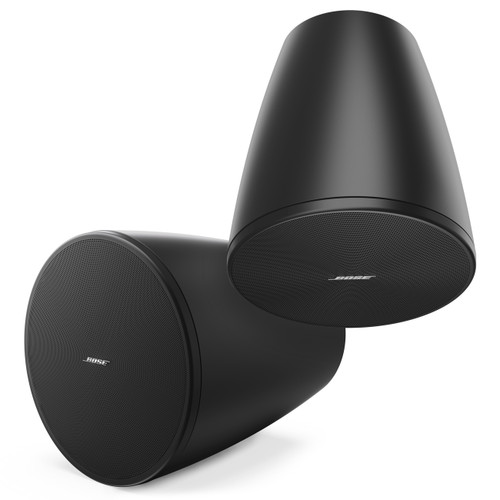

Bose DesignMax DM6PE 6.5" 70/100 Volt 400W IP55 Rated Outdoor Pendant Loudspeakers
The Bose DesignMax DM6PE is a 6.5" pendant loudspeaker designed to deliver high-quality background music and sound reinforcement in open ceiling environments. Its 70V/100V operation and weather-resistant construction make it suitable for commercial indoor and outdoor applications where wide, consistent audio coverage is needed.

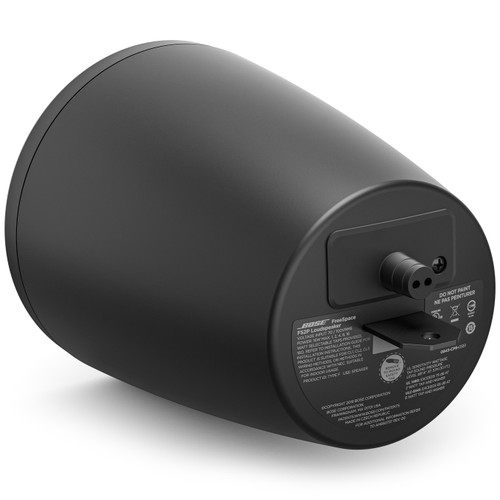

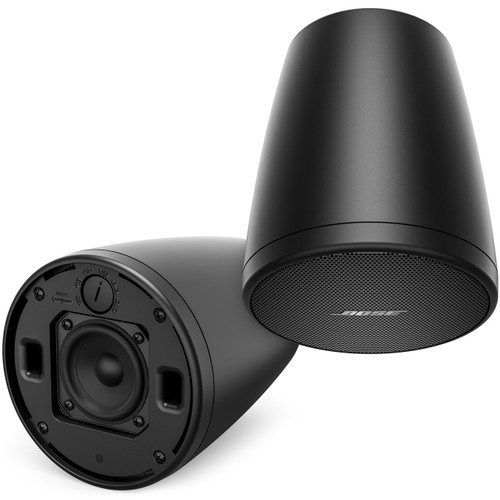

Bose FreeSpace FS2P 2.25" 70/100 Volt Pendant Loudspeakers
The Bose FreeSpace FS2P is a compact 2.25" pendant loudspeaker designed for background music and voice applications in commercial spaces. Its 70V/100V operation provides flexible integration into distributed audio systems, while the pendant design allows installation in open ceiling areas where clear, consistent coverage is needed.

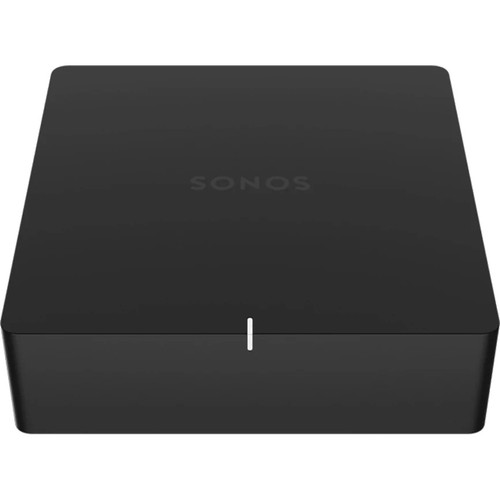

Sonos Port Wireless Streaming Component for Stereo or Receiver
The Sonos Port connects a traditional stereo or amplified receiver to the Sonos ecosystem, allowing audio sources such as music, podcasts, audiobooks, internet radio, vinyl, CDs, and stored audio files to be streamed through a compatible sound system. It supports WiFi, Apple AirPlay 2, analog RCA line-in and line-out, and digital coaxial audio output for flexible system integration.

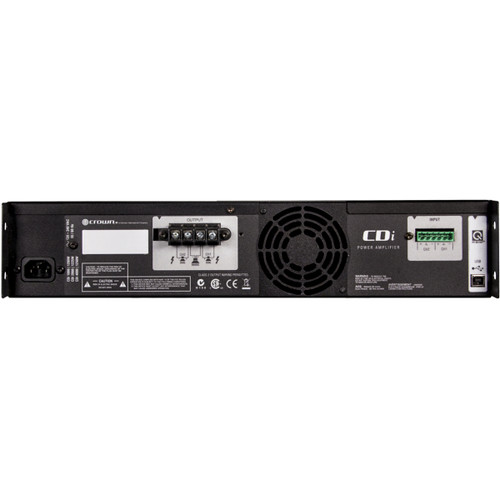

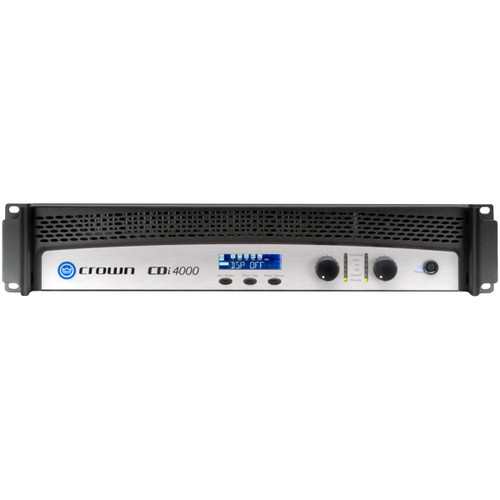

Crown CDi 4000 2-Channel 1200W @ 4-Ohm, 70V/140V Power Amplifier
The Crown CDi 4000 is a two-channel professional power amplifier designed for installed sound applications. It provides high-output amplification for commercial audio systems and supports 70V and 140V distributed audio configurations, making it suitable for powering multiple loudspeakers in larger installations.
Rolls RM67 3-Input Mic/Source Mixer
The Rolls RM67 is a compact microphone and source mixer designed to combine multiple audio inputs for commercial sound systems. Its three-input configuration provides flexible source management for applications requiring microphone and audio source mixing in a space-efficient format.
AtlasIED AP-S15LA 15A Power Conditioner and Distribution Unit
The AtlasIED AP-S15LA is a 15A power conditioner and distribution unit designed to provide organized AC power distribution for professional audio equipment. It helps centralize power connections within an audio system and provides a practical rack-mount solution for commercial installations.
Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Controls - White
The Pure Resonance Audio VC100W is a 100W Decora wall-mounted volume control designed for 25V, 70V, and 100V distributed audio systems. It features a white Decora wall plate and matching rotary knob for convenient local volume adjustment, with 30 dB of total attenuation and a 100 Hz-20 kHz frequency response. The VC100W supports single or multiple speaker lines and uses a removable Phoenix-style terminal block with in-out terminals for up to 14G speaker wire.
