Inside the Design
This Bose banquet hall and ballroom multi-zone sound system delivers high-quality background music and crystal-clear speech for large hospitality spaces such as ballrooms, banquet halls, event venues, and outdoor gathering areas. Designed to cover approximately 5,000 square feet of seated indoor and outdoor space, this 70V commercial audio system provides even sound coverage, simple operation, and flexible zone control for a wide range of events including weddings, receptions, ceremonies, corporate meetings, and presentations.
Featuring a combination of ceiling speakers, surface-mount loudspeakers, and environmental landscape speakers, this system creates a balanced and immersive audio experience throughout the venue. The Bose Professional Veritas 2160BH DSP zone mixer amplifier provides advanced signal processing, routing, and amplification, allowing multiple audio sources to be distributed and controlled independently across different zones. This system is expandable and supports paging, making it a reliable long-term solution for professional event spaces.
Sound System Features:
- Multi-zone 70V commercial sound system for banquet halls and ballrooms
- Approximately 5,000 sq. ft. of indoor and outdoor audio coverage
- Even, consistent sound distribution for music and spoken word
- Weather-resistant speakers suitable for indoor and outdoor installations
- Advanced DSP zone mixer amplifier for routing, mixing, and zone control
- Expandable system design with paging capability
- Easy-to-operate solution ideal for hospitality and event environments
About the System Components

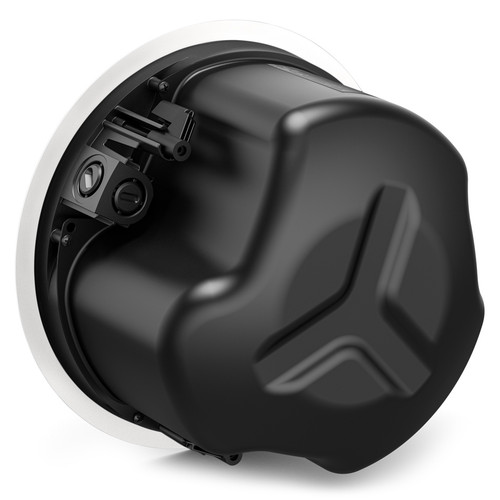

Bose FreeSpace FS4CE 4.5" Ceiling Loudspeakers

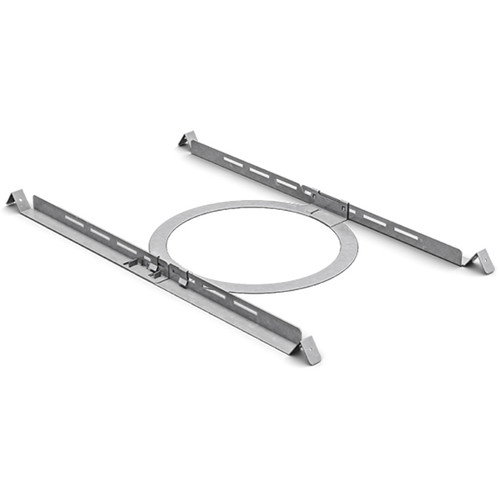

The Bose FreeSpace FS4CE ceiling loudspeakers provide high-quality foreground and background music with exceptional clarity for banquet halls and ballrooms. Featuring a 4.5" full-range driver and wide coverage pattern, these speakers ensure consistent sound throughout indoor seating areas. Their discreet design blends seamlessly into ceilings, while the included tile bridges allow for secure and flexible installation in suspended ceiling applications.
Bose FreeSpace FS4SE 4.5" Surface-Mount Loudspeakers
The Bose FreeSpace FS4SE surface-mount loudspeakers are designed for both indoor and outdoor use, making them ideal for entryways, patios, and overflow areas. These weather-resistant speakers deliver balanced, full-range audio and feature flexible mounting brackets for precise positioning. Their durable construction ensures long-term performance in demanding hospitality environments.

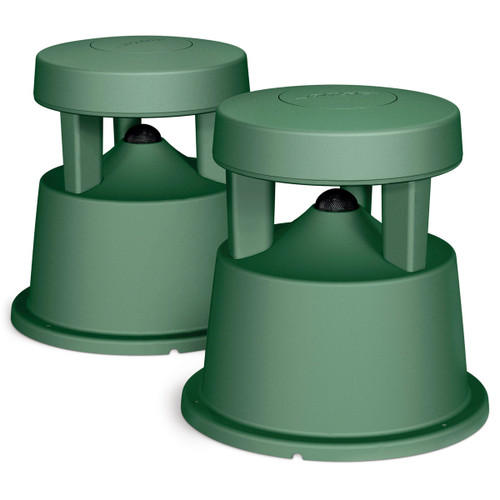

Bose FreeSpace 360P Series II Environmental Loudspeakers
The Bose FreeSpace 360P Series II environmental loudspeakers are engineered for outdoor landscape applications, providing 360-degree sound coverage for courtyards, walkways, and garden areas. Designed to blend naturally into outdoor surroundings, these speakers deliver consistent background music while withstanding exposure to weather and environmental conditions.
Bose Professional Veritas 2160BH DSP Zone Mixer Amplifier
The Bose Professional Veritas 2160BH DSP zone mixer amplifier serves as the control center for this multi-zone sound system. It combines powerful amplification with advanced digital signal processing, allowing multiple audio sources to be mixed, routed, and controlled across separate zones. With built-in DSP, flexible inputs, and support for paging applications, this amplifier ensures reliable operation and precise control for banquet halls and ballroom environments.
