Bose Retail Store Sound System with 12 FreeSpace DS 40F In-Ceiling Speakers and FreeSpace IZA 2120 HZ Zone Amplifier (Discontinued)
Bose Retail Store Sound System with 12 FreeSpace DS 40F In-Ceiling Speakers and FreeSpace IZA 2120 HZ Zone Amplifier (Discontinued)
Bose Retail Store Sound System with 12 FreeSpace DS 40F In-Ceiling Speakers and FreeSpace IZA 2120 HZ Zone Amplifier (Discontinued)
Bose Retail Store Sound System with 12 FreeSpace DS 40F In-Ceiling Speakers and FreeSpace IZA 2120 HZ Zone Amplifier (Discontinued)
Bose Retail Store Sound System with 12 FreeSpace DS 40F In-Ceiling Speakers and FreeSpace IZA 2120 HZ Zone Amplifier (Discontinued)
Bose Retail Store Sound System with 12 FreeSpace DS 40F In-Ceiling Speakers and FreeSpace IZA 2120 HZ Zone Amplifier (Discontinued)
Bose Retail Store Sound System with 12 FreeSpace DS 40F In-Ceiling Speakers and FreeSpace IZA 2120 HZ Zone Amplifier (Discontinued)
By Bose Professional

Bose Retail Store Sound System with 12 FreeSpace DS 40F In-Ceiling Speakers and FreeSpace IZA 2120 HZ Zone Amplifier (Discontinued)

Write a Review
Part #:
RTSS-8DS40FIZA2120
Model #:
RTSS-8DS40FIZA2120
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

This Bose retail store sound system is ideal for medium to large coverage areas and can be easily expanded for further coverage and control over separate zones and paging to enhance the customers' shopping experience so that customers will want to return to again and again.

Description

Retail Store Sound System with 12 Bose In-Ceiling Speakers, Zone Amplifier and Volume Control

This Bose retail store sound system is ideal for medium to large coverage areas and can be easily expanded for further coverage and control over separate zones and paging to enhance the customers' shopping experience that customers will want to return to again and again.

The Bose FreeSpace DS 40F is the most versatile member of the DS loudspeaker family. It is a high-performance, full-range, flush mount loudspeaker designed for foreground and background music and speech reproduction in a wide range of installed applications. The DS 40F features high output and 125° conical pattern with a frequency range down to 70 Hz.

For background/foreground music and paging applications, Bose FreeSpace IZA 2120-HZ integrated zone amplifier elevates the audio experience when using FreeSpace loudspeakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature selectable Loudspeaker EQ to enrich audio quality, Opti-voice paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level.

The Bose ControlCenter CC-2 zone controllers provide easy access to volume and A/B source selection for FreeSpace and ControlSpace products.

Not sure if this is the right Retail Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

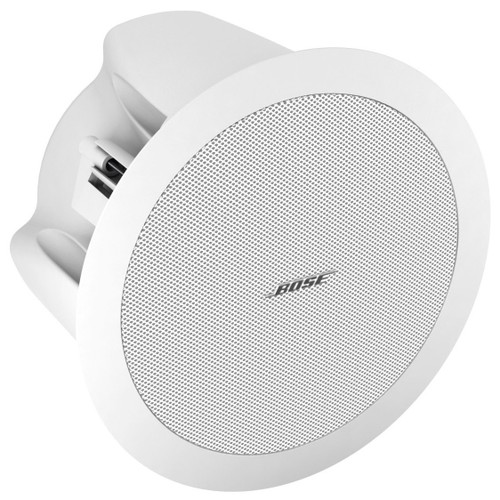

Bose® FreeSpace DS 40F Loudspeakers:

  • Full-range loudspeaker with a single 4.5" (114 mm) driver in a ported enclosure to deliver a 125° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant mount applications
  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
  • Shortcan design allows installation in shallower ceilings with minimum depth of 6.4" (163 mm)
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
  • Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille

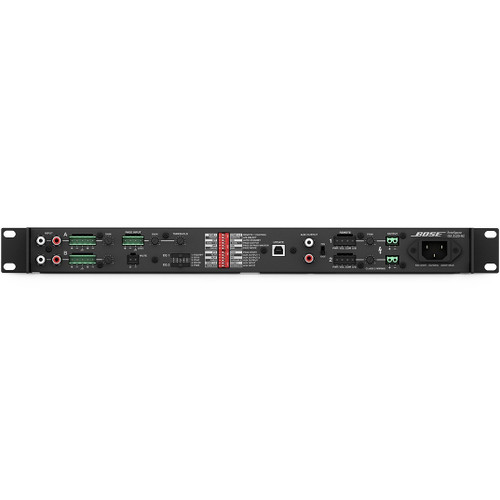

Bose® FreeSpace IZA 2120-HZ Zone Amplifier:

  • True two-zone capability provides two independent outputs that each support volume/source selection remotes, EQ, tone controls, and paging/auxiliary routing options
  • Opti-voice® paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
  • Dynamic EQ ensures full and balanced music at any volume level
  • Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose® loudspeakers: FreeSpace® 3 systems, FS3 subwoofer, DS 16, DS 40 and DS 100
  • Dual remotes support optional volume/source selection for independent or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
  • Expansion-ready connectivity with FreeSpace ZA amplifiers to drive additional zones
  • Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applications
  • Intuitive feature setup enables the amplifier to be configured without a PC for remote, paging, auxiliary input/output and automatic standby options
  • Auto-Standby feature allows the amplifier to consume less power when not in use
  • Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
  • Remote muting allows the amplifier to be muted via a centralized control system

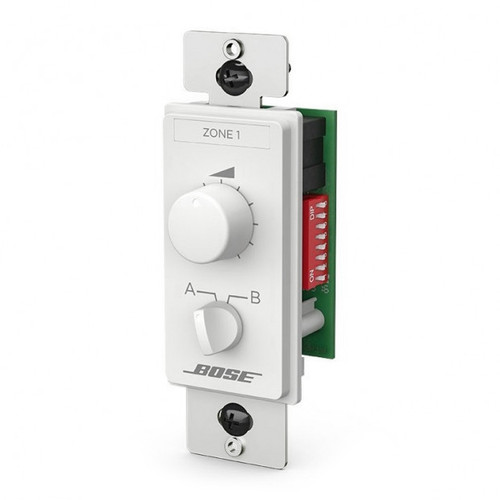

Bose® ControlCenter CC-2 Zone Controller:

  • The ControlCenter series is a set of remote controls for use with Bose FreeSpace® amplifiers, PowerShare amplifiers, and ControlSpace® processors
  • Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling

System Includes

(12) Bose FreeSpace DS 40F In-Ceiling Loudspeakers
(1) Bose FreeSpace IZA 2120-HZ Zone Amplifier
(1) Bose ControlCenter CC-2 Zone Controller

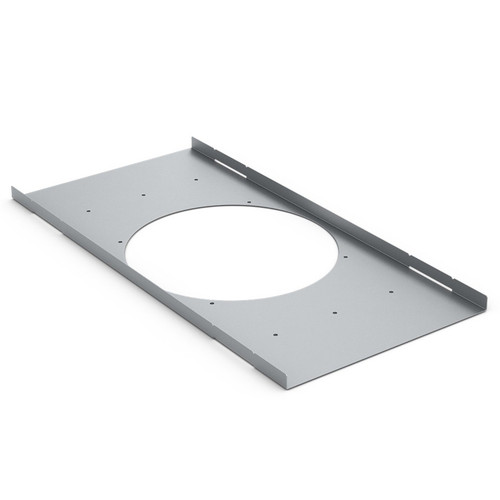

(12) Bose FreeSpace DS 40F/DS 100F Tile Bridges
(1000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
