Inside the Design
This outdoor stadium sound system combines two Bose ArenaMatch Utility AMU108 8" IP55-rated outdoor loudspeakers with a Yamaha MG12 12-channel mixing console and Crown XLS 2502 2-channel power amplifier to deliver powerful, high-quality audio for play-by-play announcements, music, and public address applications. The Bose AMU108 loudspeakers feature weather-resistant enclosures, a 90° x 60° coverage pattern, and high-SPL performance for clear speech intelligibility and consistent sound distribution across outdoor areas. The Crown XLS 2502 delivers 440 watts per channel at 8 ohms with efficient DriveCore 2 technology, while the Yamaha MG12 provides flexible mixing and control for microphones and other audio sources. The Tascam CD-400U CD and media player offers CD, USB, SD, Bluetooth, and AM/FM playback options, and the Juice Goose JG 8LED provides convenient power distribution with integrated rack lighting. For announcements, this stadium system includes a Pure Resonance Audio UC1S dynamic vocal microphone with an on/off switch and an adjustable AtlasIED desktop microphone stand. A Gator 6U molded audio rack case and 2U locking rack drawer provide durable protection and secure storage for equipment and accessories. Complete with Pure Resonance Audio XLR microphone cables, two CBI 4-pole speakON cable connectors, and 250 feet of West Penn 12/2 gauge Aquaseal speaker wire, this system is ideal for baseball fields, athletic facilities, stadiums, sports complexes, and outdoor venues requiring reliable sound reinforcement for music, announcements, and play-by-play commentary.
Sound System Features:
- Two Bose ArenaMatch Utility AMU108 8" outdoor loudspeakers deliver powerful, high-quality sound with excellent speech intelligibility and high-SPL performance for stadiums and outdoor venues
- IP55-rated weather-resistant enclosures feature durable exterior-grade plywood construction, protective stainless steel grilles, and a 90° x 60° coverage pattern for wide, consistent sound distribution
- The Crown XLS 2502 2-channel DriveCore 2 power amplifier delivers 440 watts per channel at 8 ohms with efficient Class D amplification, integrated crossover processing, and Peakx limiters for speaker protection
- The Yamaha MG12 12-channel mixing console provides flexible audio mixing with high-quality D-PRE microphone preamps, 1-knob compressors, and multiple inputs for microphones and audio sources
- The Tascam CD-400U CD and media player supports CD, USB, and SD card playback, Bluetooth audio streaming, and an integrated AM/FM tuner for versatile audio source options
- The Juice Goose JG 8LED power distribution center features eight rear AC outlets, basic surge protection, and two adjustable LED rack lights for convenient equipment operation
- The Pure Resonance Audio UC1S dynamic vocal microphone features a cardioid pickup pattern and on/off switch for clear play-by-play announcements and public address applications
- The AtlasIED DS7E adjustable desktop microphone stand provides stable microphone positioning with an adjustable height of 8" to 13" for convenient announcer operation

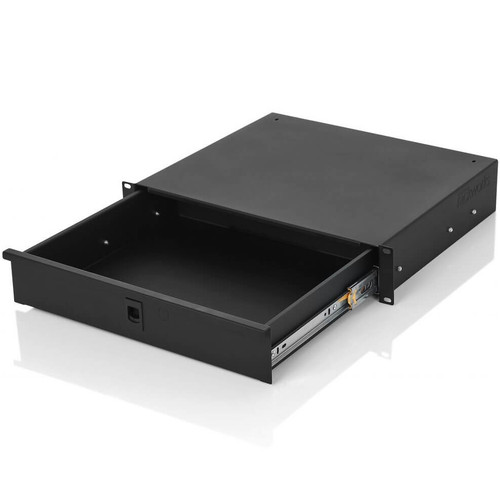

- The Gator 6U molded audio rack case provides durable protection for rack-mounted equipment, while the 2U locking rack drawer offers secure storage for cables and accessories

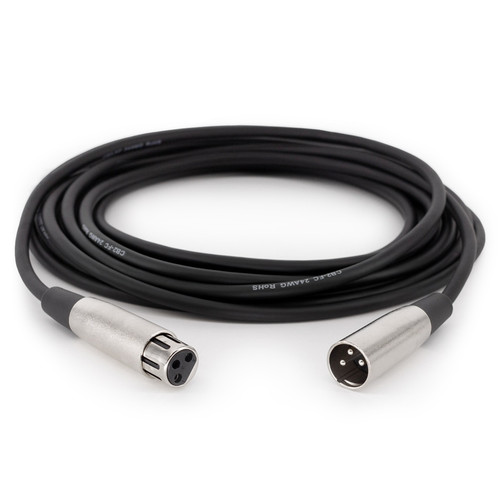

- Included 6ft and 25ft Pure Resonance Audio XLR microphone cables provide dependable connections between the microphone, mixer, and other audio equipment

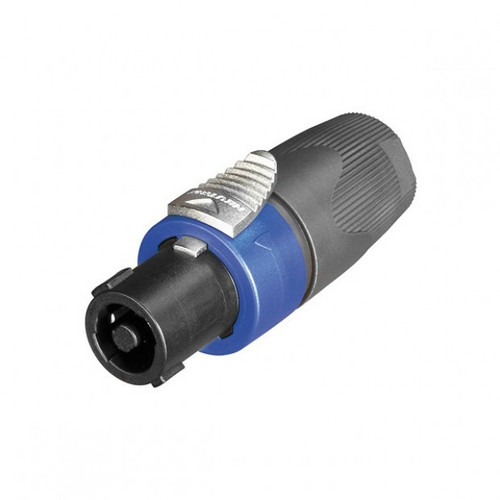

- Two CBI 4-pole speakON cable connectors and 250 feet of West Penn 12/2 gauge Aquaseal speaker wire support reliable speaker connections and outdoor installations
About the System Components
Bose ArenaMatch Utility AMU108 8" IP55 Rated Outdoor Loudspeaker with 90° x 60° Coverage
The Bose ArenaMatch Utility AMU108 is a high-performance 2-way outdoor loudspeaker engineered to deliver powerful, clear sound for stadiums, sports facilities, outdoor entertainment venues, and other demanding sound reinforcement applications. Featuring an 8" high-excursion woofer and extended high-frequency compression driver, the AMU108 provides excellent vocal clarity, high-SPL foreground music reproduction, and an 80 Hz to 18 kHz frequency range. Its 90° x 60° constant-directivity horn can be rotated to optimize sound coverage for horizontal or vertical installations, ensuring consistent audio distribution across designated listening areas. The durable IP55 weather-rated enclosure features exterior-grade plywood construction, a protective polyurea coating, and a three-layer stainless steel grille for dependable performance in outdoor environments. With a built-in 70V/100V transformer and 8-ohm bypass, the AMU108 offers flexible installation options for professional distributed and low-impedance sound systems.

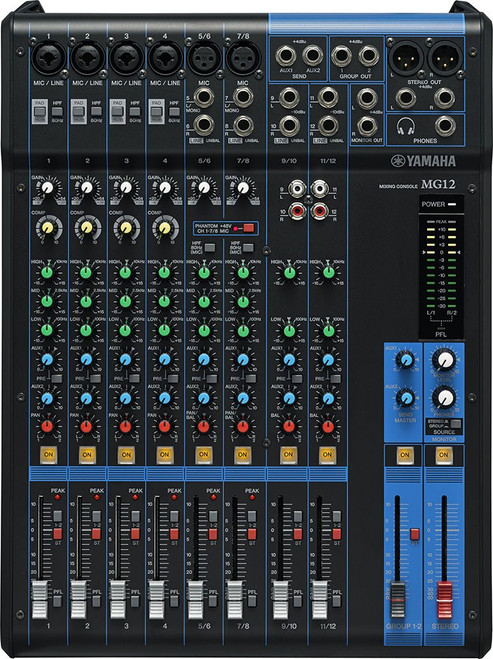

Yamaha MG12 12-Channel Mixing Console
The Yamaha MG12 is a professional 12-channel analog mixing console designed to provide reliable audio control and exceptional sound quality for live performances, announcements, and public address systems. Featuring Yamaha's D-PRE microphone preamps, the MG12 delivers clear, natural sound with excellent low-noise performance. Its flexible input configuration accommodates multiple microphones, media players, and other audio sources, while 1-knob compressors provide convenient dynamics control for consistent vocal levels. Additional features include 3-band EQ, high-pass filters, auxiliary sends, and balanced XLR outputs for versatile audio routing and mixing. Built with a rugged metal chassis and an intuitive control layout, the MG12 is well-suited for stadium press boxes, sports facilities, and other professional sound applications requiring dependable operation and precise audio adjustments.
Crown XLS 2502 DriveCore 2 Series 2-Channel 440W at 8Ω Power Amplifier
The Crown XLS 2502 is a powerful and efficient 2-channel power amplifier designed for professional sound reinforcement applications. Delivering 440 watts per channel at 8 ohms and 775 watts per channel at 4 ohms, the XLS 2502 provides reliable amplification for passive loudspeaker systems. Crown's advanced DriveCore 2 technology combines high-performance Class D amplification with a lightweight, energy-efficient design for dependable operation. The amplifier features an integrated PureBand crossover system for flexible speaker configuration, Peakx limiters to help protect connected loudspeakers, and selectable input sensitivity for compatibility with various audio sources. XLR, 1/4", and RCA inputs provide convenient connectivity, while speakON and binding post outputs support flexible speaker connections. Its intuitive LCD display allows easy adjustment of amplifier settings, while the compact 2U rackmount design, efficient forced-air cooling, and integrated protection features make the XLS 2502 an excellent solution for stadiums, athletic facilities, and demanding commercial audio applications.

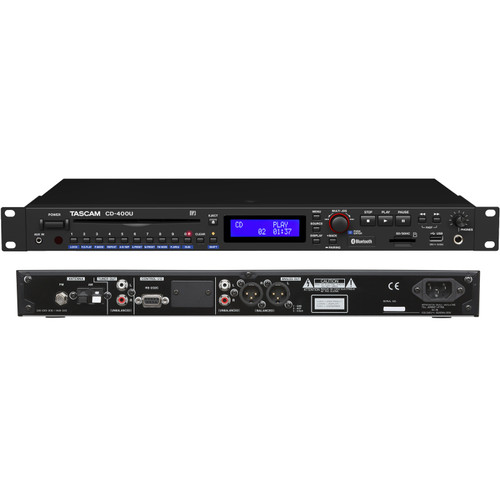

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
The Tascam CD-400U is a versatile professional media player designed to provide multiple audio playback options for commercial sound systems, stadiums, and public address applications. Supporting CDs, USB flash drives, and SD cards, the CD-400U allows convenient playback of music, prerecorded announcements, and other audio content from a variety of sources. Built-in Bluetooth connectivity enables wireless audio streaming from compatible smartphones, tablets, and other devices, while the integrated AM/FM tuner provides access to local radio broadcasts. The unit also features balanced XLR and unbalanced RCA audio outputs for flexible connectivity with professional mixing consoles and audio equipment. Its compact 1U rackmount design, front-panel controls, and included remote control make it a convenient and reliable media source for sports facilities, live events, and commercial installations.

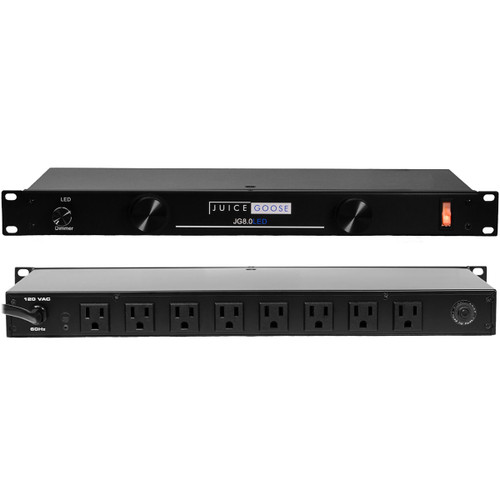

Juice Goose JG 8LED Power Distribution Center with LED Lights
The Juice Goose JG 8LED is a professional rackmount power distribution center designed to provide convenient AC power management for audio equipment and commercial sound systems. Featuring eight rear-panel AC outlets and a 15-amp capacity, the JG 8LED allows multiple audio components to receive power from a centralized distribution point. Basic surge and noise protection help safeguard connected equipment from common electrical disturbances, while the illuminated master power switch provides convenient system power control. Two retractable LED light tubes feature adjustable positioning and dimming control, providing illumination for rack-mounted equipment in dark environments such as stadium press boxes, equipment rooms, and backstage areas. Its durable 1U rackmount construction makes it a practical addition to professional audio systems requiring organized power distribution and convenient rack lighting.

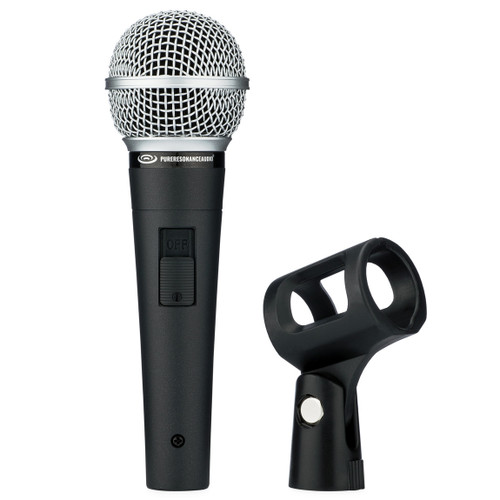

Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch and Mic Clip
The Pure Resonance Audio UC1S dynamic vocal microphone provides clear, natural vocal reproduction for play-by-play announcements, public address, presentations, and general voice reinforcement applications. Featuring a cardioid pickup pattern, the UC1S focuses on the primary sound source while minimizing unwanted background noise and feedback. Its integrated on/off switch allows convenient control of microphone operation, making it easy for announcers to mute the microphone between announcements. The rugged housing, steel mesh grille, and built-in wind and breath noise filter help ensure dependable performance in demanding environments. Paired with the included AtlasIED DS7E adjustable desktop microphone stand, the UC1S provides a convenient microphone solution for stadium announcers and sports commentators.
AtlasIED DS7E 8" - 13" Adjustable Height Ebony Desktop Mic Stand
The AtlasIED DS7E desktop microphone stand provides stable, adjustable microphone positioning for announcers, presenters, and public address applications. Featuring an adjustable height range of 8" to 13", the stand allows users to position their microphone at a comfortable level for seated operation at a desk or podium. Its sturdy construction and weighted base provide dependable microphone support, while the ebony finish offers a clean, professional appearance. Ideal for stadium press boxes, sports commentary stations, and public address control areas, the DS7E pairs with the Pure Resonance Audio UC1S microphone to provide convenient hands-free operation during announcements and live commentary.

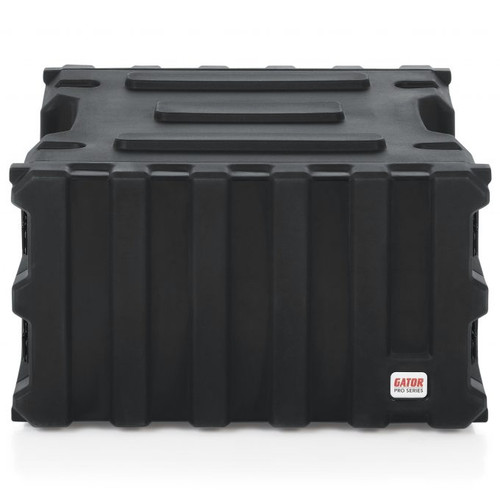

Gator G-PRO-6U-19 6U 19" Deep Molded Audio Rack
The Gator G-PRO-6U-19 molded audio rack case provides rugged protection for professional audio equipment in demanding commercial and live sound environments. Featuring durable roto-molded polyethylene construction, this 6U rack case offers a 19" rackable depth for accommodating compatible rack-mounted amplifiers, media players, power distribution equipment, and accessories. Its full-sized removable front and rear lids provide convenient access to equipment and connections, while recessed steel twist latches help keep the case securely closed during transportation. Molded-in ergonomic side handles make the rack easier to carry and position, and threaded rack rails provide secure mounting for compatible components. Designed for dependable equipment protection and portability, the G-PRO-6U-19 is well-suited for stadium press boxes, audio equipment rooms, mobile sound systems, and other professional installations.
