- Description
Details

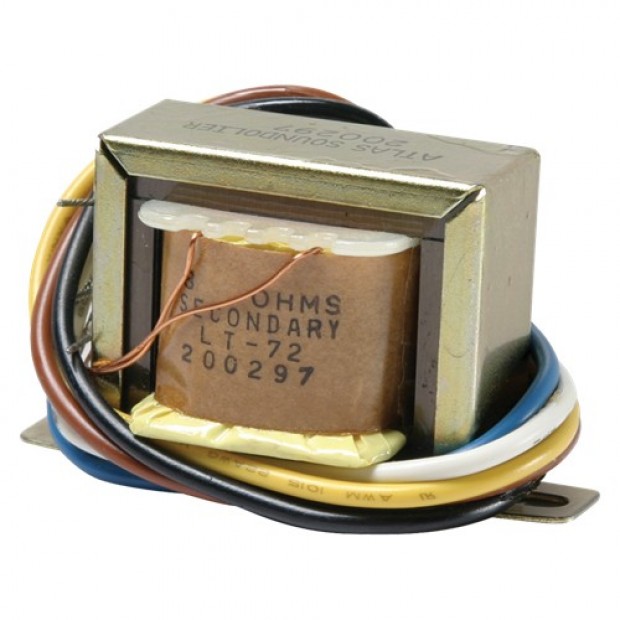

The LT72 General purpose transformer provides economical matching of loudspeakers for most distributed sound applications.
The insertion loss does not exceed 1.5dB and frequency response is +1.5dB from 100 Hz to 10 kHz. Primary taps are .5, 1, 2 and 5 watts. Secondary impedance is 8 ohms. Model LT-72 is designed for use with 70.7 and 25V volt lines.
- Features
Features
- 70.7V/25V Line Matching Transformer
- Frequency Response 100Hz-10kHz
- Compact Footprint
- Specification
Frequency Response 100Hz-10kHz Primary Taps .5, 1, 2, & 4 Power Rating 4 Watts Primary Volts 70.7/25 Dimensions (H x W x D) 1.38" (3.50 cm) x 1.75" (4.37 cm) x 0.75" (1.83 cm) Shipping Weight 0.50 lbs. (0.23 kgs) - Reviews
