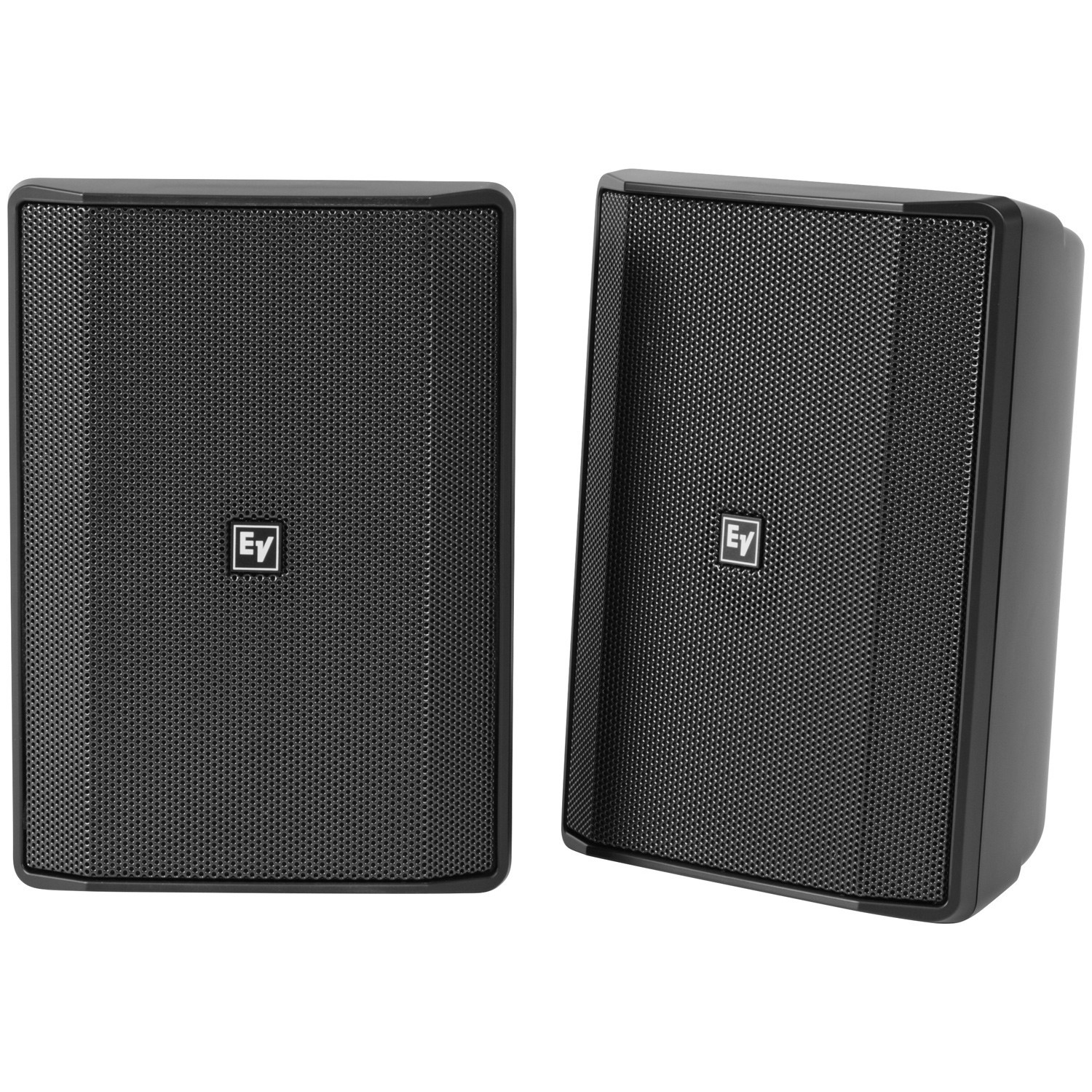

Electro-Voice EVID-S5.2XB 5" 2-Way Full-Range 70V/100V IP65 Weather Resistant Surface Mount Speaker - Black Pair

Electro-Voice EVID-S5.2XB 5" 2-Way Black Weather Resistant Surface Mount Speakers

The EVID-S5.2XB delivers powerful, full-range sound in a sleek, weather-resistant design. Each black loudspeaker features a long-throw 5.25" woofer with a two-way configuration that ensures extended low-frequency performance down to 55 Hz and a balanced, clear output across the spectrum. With 75W continuous power handling and a peak SPL of up to 114 dB, these speakers are ideal for both background and foreground music, paging, voice evacuation, and reinforcement in demanding commercial environments.

Built for all-weather reliability, the EVID-S5.2XB is rated IP65 and features a marine-grade aluminum grille and a UL 94-5VB fire-rated ABS enclosure. This rugged build ensures long-lasting protection against sun, salt, and moisture, making the pair perfectly suited for coastal areas, outdoor patios, theme parks, restaurants, retail spaces, and fitness clubs. With EN54-24 and UL1480 certifications, these black loudspeakers also meet stringent safety standards for professional installations.

For maximum flexibility, the EVID-S5.2XB includes a versatile U-bracket offering 80° of rotation for precise positioning. Its 60W transformer supports 70V/100V distributed systems with selectable taps (7.5W, 15W, 30W, or 60W), while the 8Ω bypass makes it compatible with low-impedance setups. As part of the trusted EVID surface-mount speaker family, the EVID-S5.2XB integrates seamlessly with other EVID models for consistent audio quality across multi-speaker installations.

• Pair of black 5.25" two-way full-range surface-mount loudspeakers
• Rugged IP65-rated weather-resistant design with marine-grade aluminum grille
• UL 94-5VB fire-rated ABS enclosure in black finish
• Extended low-frequency response down to 55 Hz
• 75W continuous / 114 dB peak SPL output
• Built-in 60W transformer with 70V/100V selectable taps (7.5W, 15W, 30W, 60W)
• 8Ω bypass for low-impedance operation
• Certified to EN 54-24 and UL1480 safety standards

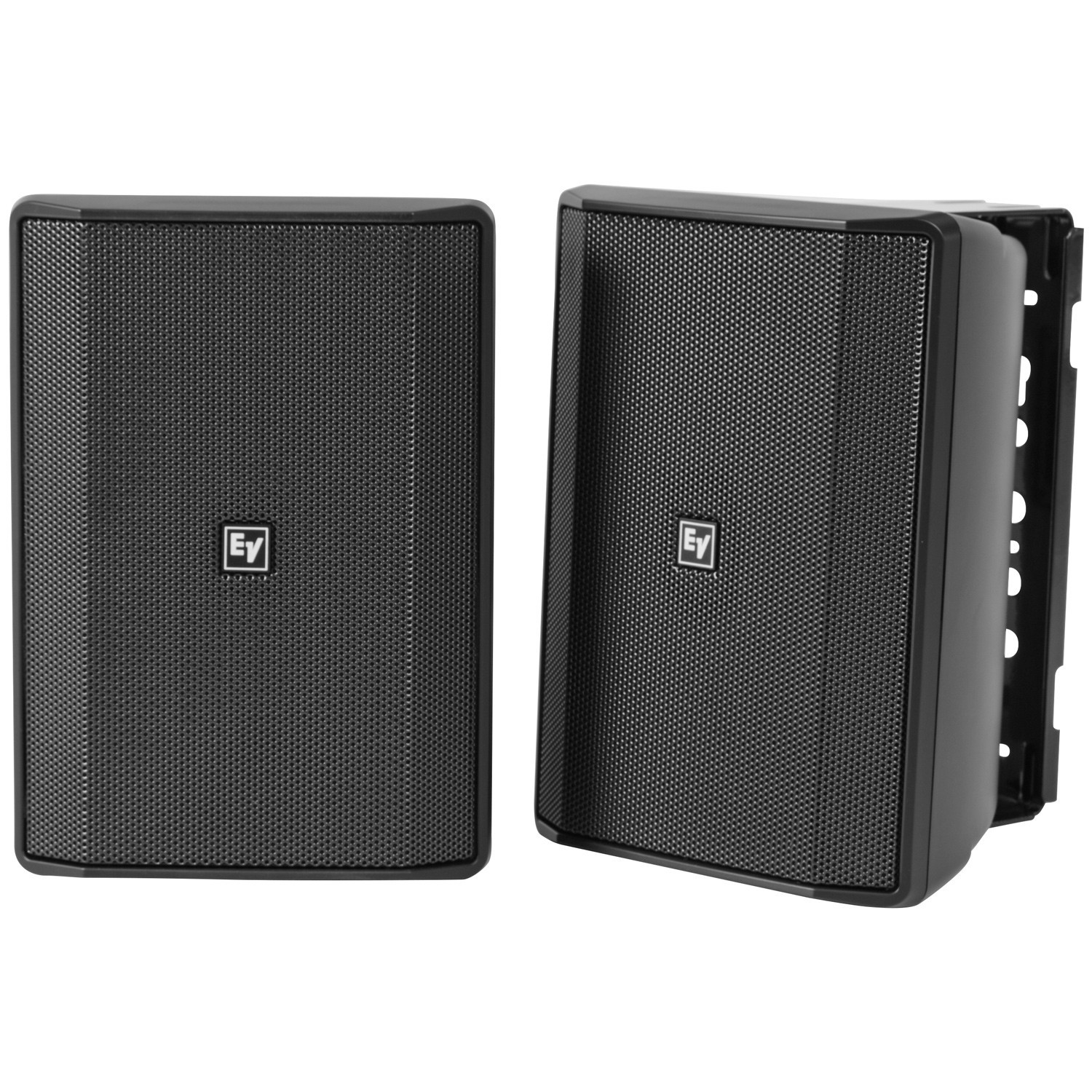

• Includes black U-bracket with 80° rotation for flexible mounting
• Perfect for indoor/outdoor use: restaurants, bars, patios, retail, fitness clubs, hospitality, and leisure venues
