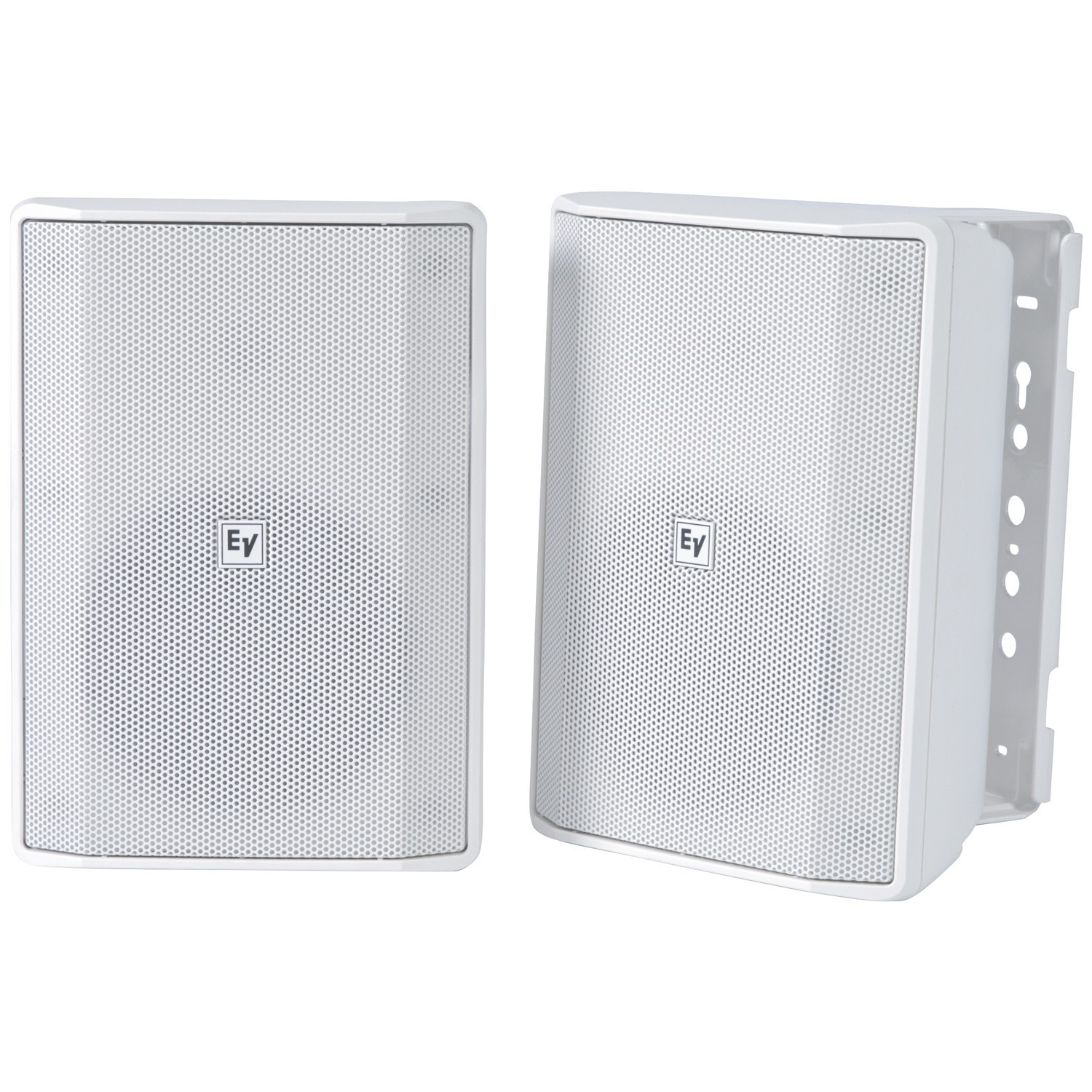

Electro-Voice EVID-S5.2XW 5" 2-Way Full-Range 70V/100V IP65 Weather Resistant Surface Mount Speaker - White Pair

Electro-Voice EVID-S5.2XW 5" 2-Way White Weather Resistant Surface Mount Speakers

The EVID-S5.2XW delivers clear, powerful audio performance in a sleek, weather-resistant design that blends seamlessly into modern spaces. Each white loudspeaker features a long-throw 5.25" woofer with a two-way full-range design, providing extended low-frequency response down to 55 Hz, crisp highs, and uniform coverage. With 75W continuous power handling and a peak SPL of up to 114 dB, these compact surface-mount speakers are ideal for both background and foreground music, paging, voice evacuation, and reinforcement in commercial installations.

Engineered for durability, the EVID-S5.2XW carries an IP65 weather rating, a marine-grade aluminum grille, and a UL 94-5VB fire-rated ABS enclosure for long-lasting protection against sun, salt, and moisture. Certified to EN 54-24 and UL1480 standards, these speakers provide safe, reliable performance even in demanding environments. Perfect for both indoor and outdoor applications, they're a natural choice for restaurants, retail, hospitality, fitness centers, theme parks, leisure venues, and more.

Installation is straightforward with the included white U-bracket, offering 80° of rotation for precise aiming. The integrated 60W transformer supports distributed 70V/100V systems with selectable taps (7.5W, 15W, 30W, or 60W), while the 8Ω bypass ensures compatibility with standard low-impedance systems. As part of the EVID speaker family, the EVID-S5.2XW integrates seamlessly with other EVID models, making it easy to design a complete, uniform audio solution.

• Pair of white 5.25" two-way full-range surface-mount loudspeakers
• Rugged IP65-rated weather-resistant design with marine-grade aluminum grille
• UL 94-5VB fire-rated ABS enclosure in white finish
• Extended low-frequency performance down to 55 Hz
• 75W continuous / 114 dB peak SPL output
• Built-in 60W transformer with 70V/100V selectable taps (7.5W, 15W, 30W, 60W)
• 8Ω bypass for low-impedance operation
• Certified to EN 54-24 and UL1480 standards
• Includes white U-bracket with 80° rotation for wall or ceiling mounting
• Perfect for indoor/outdoor use: restaurants, bars, patios, retail, fitness clubs, hospitality, and leisure venues
