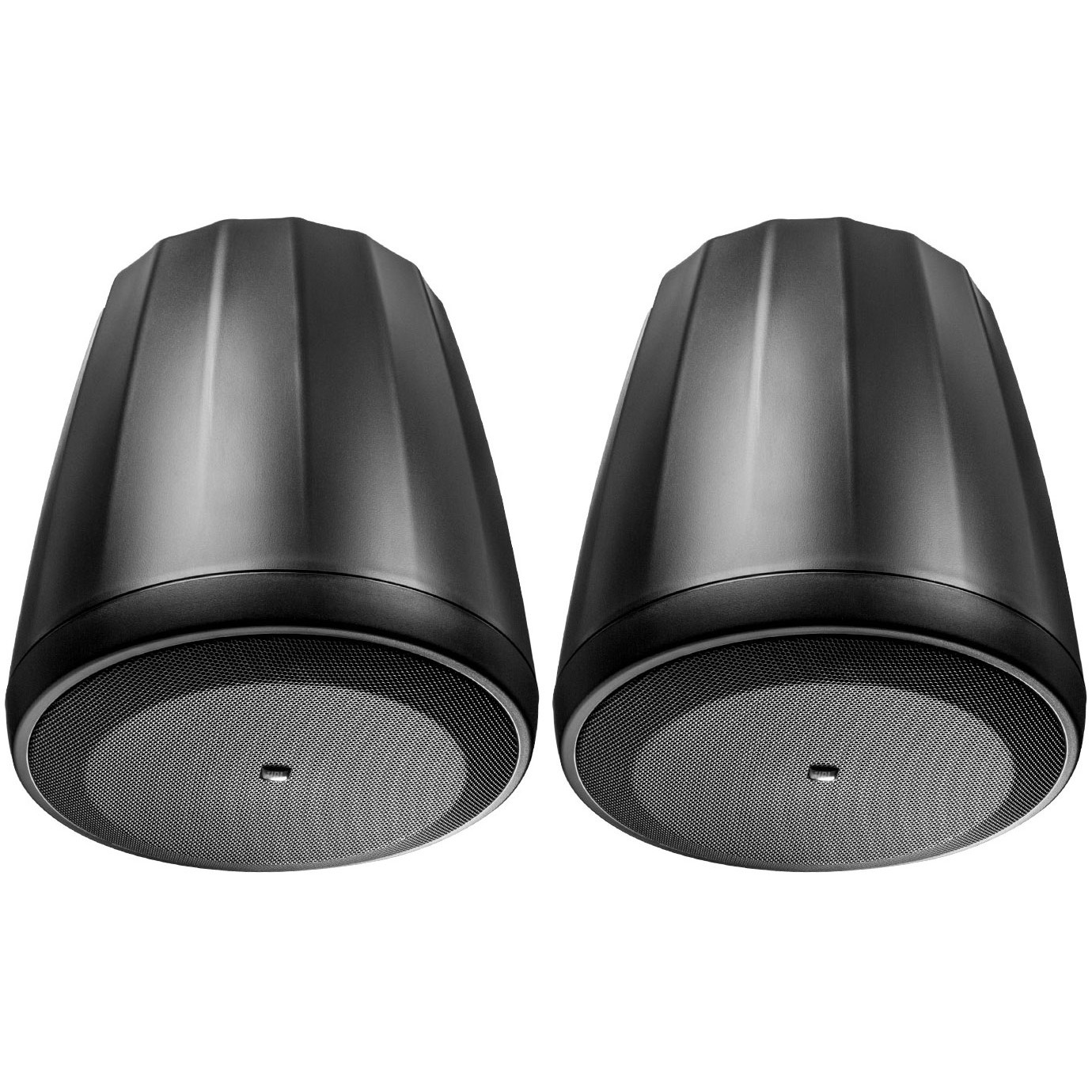

JBL Control 64P/T 4" Compact Full-Range Pendant Speakers
The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.
The 120° coverage pattern (average mid-range coverage) distributes the sound broadly for the listening space.
Stylish design and easy installation makes the Control 64P/T ideal for a wide variety of applications including retail, restaurants, hotels, casinos, fitness centers, convention centers, exhibit spaces, conference rooms, atriums, museums, transit centers and other open-ceiling applications.
The Control 64P/T includes a single-point mounting system for easy and secure suspension in open-ceiling applications. Two complete hanging cable systems are included, providing both main and safety suspension cables.
Include are extra-long 4.5 m (15 foot) high tensile galvanized steel wire rope having spring clips for the loudspeaker end of the cable and UL listed cable fasteners for infinitely adjustable suspension height.
The system’s 4" (100 mm) full-range driver features a polypropylene-coated cone and 0.8" (20 mm) high temperature copper voice coil for high power handling and improved long-term reliability.
The Control 64P/T contains a high-quality 30W multi-tap transformer for use on 70V/100V distributed loudspeaker lines, and is switchable for 8-ohm voice-coil direct operation.
Euro-style clip-in connectors allow for easy wiring. For protected outdoor applications, rubber boots are included to cover the input connectors, and an optional terminal cover is available for harsher locations.- Features
Features
- 4" (100 mm) full-range driver with polypropylene coated cone and 0.8" (20 mm) high temperature voice coil
- Hanging hardware with 4.5 m (15 ft) galvanized
- steel cable and easy to adjust clamp
- Stylish design, available in black or white (-WH)
- UL listed (speaker and hanging cable system)
- 8Ω and 70V/100V operation
- Specification
Frequency Response (-10 dB) 65 Hz - 15 kHz Frequency Response (+/-3 dB) 85Hz - 14 kHz Power Rating 100W Continuous Program (2 hrs)
50W (200W peak), Continuous Pink Noise (2 hrs)
40W (160W peak), Continuous Pink Noise (100 hrs)Maximum Input Voltage 18.2 V RMS (2 hrs), 36.4 V peak Nominal Sensitivity 88 dB Nominal Coverage Angle 120° (averaged 1 kHz to 4 kHz) Directivity (Q) 6.2 Directivity Index (DI) 7.3 dB (averaged 1kHz – 16kHz) Rated Maximum SPL @ 1m 105 dB continuous pink noise, 111 dB peak Rated Impedance 8Ω Transformer Taps 70V: 30W, 15W, 7.5W & 3.7W
100V: 30W, 15W, 7.5WTransformer Insertion Loss 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W Transducer 4" (100 mm) polypropylene-coated paper with cloth surround, 0.8" (20 mm) copper voice coil Enclosure Material High impact polystyrene Grille 0.94dB @ 3.7W, 0.89 dB @ 7.5W, 0.83 dB @ 15W, 0.94 dB @ 30W Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating Termination Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm). Rubber terminal covers included Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lbs) Safety Agency Ratings Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81 Included Accessories Two suspension cable systems, two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors Optional Accessories MTC-PC60 top panel / terminal cover Colors Available in black or white (-WH) - Paintable Dimensions (Dia x H) 9.3" (234 mm) x 10.2" (259 mm) Net Weight 5.2 lbs (2.35 kg) Shipping Weight (Pair) 13.4 lbs (6.07 kg) - Documents
