Microbrewery Sound System for Multi-Zone Background or Foreground Music and Paging up to 6,000 SF (Up to 4 Zones)

Inside the Design

This professional four-zone commercial sound system is engineered to deliver high-quality background and foreground music as well as paging in microbreweries and brewpubs up to 6,000 square feet. This system features eight JBL Control HST wide-coverage wall-mount speakers, two JBL Control 28-1 outdoor speakers, and four JBL Control 12C/T in-ceiling speakers. A Pure Resonance Audio MX84 4-zone rack-mount mixer and a Blaze PowerZone 504 4-channel 500W amplifier provide powerful and flexible audio routing. Each zone is equipped with a dedicated Pure Resonance Audio VC100S volume control, and four PREP-3-PREP 3-foot patch cables are included for clean connectivity.

Sound System Features:

• Professional 4-zone commercial sound system for microbreweries and brewpubs
• JBL wide-dispersion wall-mount, in-ceiling, and outdoor speakers for complete coverage
• Pure Resonance Audio MX84 8-channel mixer with flexible input routing and zone control
• Blaze PowerZone 504 4-channel amplifier provides 500 watts of reliable power
• Independent VC100S volume controls for each zone with stainless steel finish
• Includes PREP-3-PREP patch cables for quick and organized installation



About the System Components

JBL Control HST Wide-Coverage Speakers

The JBL Control HST speakers utilize Hemispherical Soundfield Technology™ to provide extremely wide horizontal coverage and minimize sound reflections off nearby walls. These 5.25" speakers feature dual splayed tweeters for full-range fidelity and are suitable for high-traffic areas like serving zones and production spaces.

JBL Control 28-1 Indoor Outdoor 8" Speakers

Ideal for outdoor patios or seating areas, the JBL Control 28-1 speakers offer a contemporary design with robust weather resistance. Their 8" woofers and 1" tweeters deliver powerful audio with a broad 100° x 100° dispersion pattern and a frequency response from 45 Hz to 20 kHz.

JBL Control 12C/T Compact 3" Ceiling Loudspeakers

The Control 12C/T 3" ceiling loudspeakers offer wide 130° dispersion and a compact design that blends into any environment. They support both 70V/100V and 8-ohm operation, and are well-suited for background music in offices and restrooms.

Pure Resonance Audio MX84 4-Zone 8-Channel Mixer

The MX84 rack-mount mixer provides 8 mic/line inputs and 4 output zones with independent control. Ideal for multi-zone commercial setups, it allows for flexible routing of microphones and music sources across distinct zones.

Blaze PowerZone 504 Power Amplifier

The Blaze PowerZone 504 delivers 500 watts of clean audio power across four channels, making it an ideal companion for multi-zone distributed sound systems. It supports both low and high-impedance loads, ensuring consistent performance.

Pure Resonance Audio VC100S Volume Controls

These 100-watt stainless steel volume controls provide local volume adjustment in each zone. Plate-mounted and compatible with 70V systems, they offer durability and a clean aesthetic for commercial spaces.

Zone Setup Example

JBL Control HST Wide-Coverage Speakers

• HST Hemispherical Soundfield Technology™
• Provides extremely wide horizontal coverage
• Reduces the primary wall reflection
• Components: 5.25" CMMD woofer and two splayed 3/4" fluid-cooled tweeters
• High fidelity sound character with broad frequency response
• Indoor/outdoor - weather capable



JBL Control 28-1 Indoor Outdoor 8" Speakers

• 8" woofer with woven fiberglass cone
• 1" PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 120 Watt power handling (240 Watt program) in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer
• High fidelity sound character with broad frequency response of 45 Hz – 20 kHz



JBL Control 12C/T Compact 3" Ceiling Loudspeakers

• 3" full-range driver
• Blind-mount backcan for quick and easy install
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
• 20 watts at 8Ω nominal setting
• 15 watts multi-tap at 70V/100V
• 68 Hz – 17 kHz bandwidth with wide 130° coverage



Pure Resonance Audio MX84 4-Zone 8-Channel Rack Mount Mic/Line Mixer

• 4-zone matrix mixer with 8 balanced mic/line inputs
• Individual level and routing control for each input to any zone
• High-quality audio performance with low noise and distortion
• Rack-mountable 1U design for easy integration
• Perfect for commercial installations requiring flexible audio routing



Blaze PowerZone 504 500W 4-Channel Install Power Amplifier

• Delivers 500 watts across 4 channels for superior audio performance
• Class-D amplifier with high efficiency and low heat generation
• Supports low impedance (4Ω/8Ω) and 70V/100V distributed audio systems
• Compact and lightweight rackmount chassis
• Reliable, energy-efficient design ideal for continuous commercial use



Pure Resonance Audio VC100S 100W Plate Mounted 70V Volume Controls - Stainless Steel

• Durable stainless steel plate design for professional installations
• Manages up to 100 watts of 70V audio signal
• Decora-style mount fits standard electrical boxes
• Detented rotary dial for precise volume adjustment
• Easy integration with commercial 70V sound systems



• (8) JBL Control HST Wide-Coverage Speakers
• (2) JBL Control 28-1 Indoor Outdoor 8" Speakers
• (4) JBL Control 12C/T Compact 3" Ceiling Loudspeakers
• (1) Pure Resonance Audio MX84 4 Zone 8-Channel Rack Mount Mic/Line Mixer
• (1) Blaze PowerZone 504 500W 4-Channel Install Power Amplifier
• (4) Pure Resonance Audio VC100S 100W Plate Mounted 70V Volume Controls - Stainless Steel
• (4) Pure Resonance Audio PREP-3-PREP Prep to Prep Patch Cables - 3ft

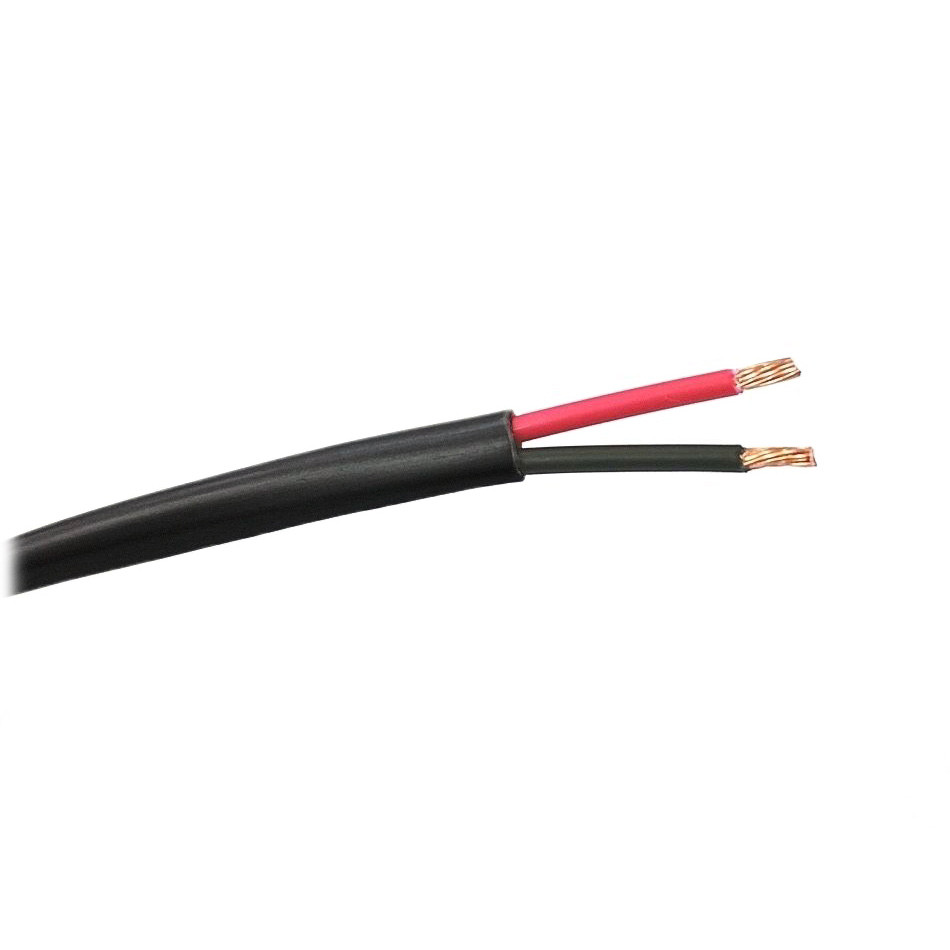

• (1000') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
