- Description
Details

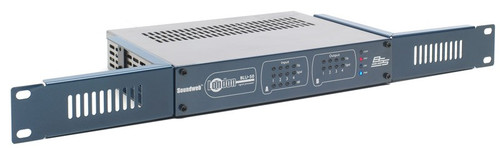

The BSS BLU-50 4x4 Signal Processor with BLU link is a half-rack width processor with four inputs and four outputs that can be powered with the included 12VDC power supply but can accept 12-48VDC via a terminal block connector. The BLU-50 can also be powered with PoE+ via the Ethernet port, allowing the device to be powered, configured, controlled and monitored using a single Cat 5e cable.
The analog inputs of the BLU-50 provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication.
The BLU-50 features BLU link, a low latency, fault tolerant digital audio bus of 48 channels, which uses standard Category 5e cabling giving a distance of 328 feet (100 m) between compatible devices. Fiber media converters can be used to increase the distance between devices to over 6.2 miles (10 km) using single mode fiber.
The BLU-50 is configured, controlled and monitored from HiQnet Audio Architect or HiQnet London Architect and is compatible with other members of the Soundweb London family. Its 48 channel BLU link bus represents channels 1-48 of the larger 256 channel BLU link bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120, BLU-BIB and BLU-BOB devices. Up to 60 BLU link compatible devices can share channels on a single bus.
As with other Soundweb London devices, 12 Control Inputs, six Logic Outputs and an RS-232 port allow the BLU-50 to be integrated with other compatible devices.- Features
Features
- 4 Analog Inputs (with 48v Phantom Power per Channel).
- 4 Analog Outputs.
- Configurable Signal Processing.
- Rich Palette of Processing and Logic Objects.
- 48 Channel, Low Latency, Fault Tolerant Digital Audio Bus.
- Clear Front Panel LED Indication.
- Bi-Directional Locate Functionality.
- 12 Control Inputs and 6 Logic Outputs for GPIO Integration.
- Soundweb London Interface Kit for Third Party Control System Integration (Documentation).
- HiQnet Device.
- Configuration, Control and Monitoring from HiQnet London Architect.
- 12-48VDC or PoE+ Powering Options (12VDC Power Supply Included).
- Rack Mount, Surface Mount and Desk Mount Installation Options.
- Specification
Front Panel Led Indicators Per Input Signal Present, CLIP, 48V (Input only) Other COM, STAT, ERR, PWR Analog Inputs Analog Inputs 4 electronically balanced on Phoenix Mini Combicon removable screw connectors Mic/Line Inputs Nominal gain 0dB, electronically switchable up to +48dB,in +6dB steps Input Impedance 3.5kΩ Maximum Input Level +20dBu with 0dB input gain,+8dBu with 12dB gain CMRR >45dB at 1KHz Input Noise (E.I.N.) <-128dBu typical with 150Ω source Phantom Power 48V nominal, selectable per input A/D Latency 37/Fs [0.77ms@48k] Analog Outputs Analog Outputs 4 electronically balanced on Phoenix Mini Combicon removable screw connectors Maximum Output Level +20dBu Frequency Response 20Hz-20KHz (+0.5dB/-1dB) THD 0.005% typical at +4 dBu, 1kHz, 0 dB input gain Dynamic Range 110dB A-weighted, >107dB unweighted Crosstalk <-100dB Output Impedance 120Ω D/A Latency 29/Fs [0.60ms@48k] Control Ports Control Ports 12 inputs and 6 outputs Control Input Voltage 0 to 4.5v Control Input Impedance 4.7kΩ to +5V (2-wire mode), >1MΩ (3-wire mode) Logic Output Voltage 0 or +5V unloaded Logic Output Impedance 440Ω Logic Output Current 10mA source, 60mA sink Watchdog Output Watchdog Output Phoenix/Combicon connector for failsafe control Opto Output Current 14mA maximum Withstanding Voltage 80V maximum (Off) Series Impedance 220Ω (isolated) Control Network Specifications Connectors RJ45 Ethernet connector Maximum Cable Length 300 ft (100 m) on Category 5 cable between device and Ethernet switch BLU Link Connectors 2 x RJ45 Ethernet connectors Maximum Cable Length 300 ft (100 m) on Category 5e cable between devices Maximum Number of Nodes 60 Latency 11/Fs [0.23ms@48k] Pass Through Latency 4/Fs [0.08ms@48k] Power and Dimensions Specifications Mains Voltage 100-240V AC, 50/60Hz Power Consumption <55VA BTU Rating <188 BTU/hr Operating Temperature Range 5 to 35 degrees Celsius (41 to 95 degrees Fahrenheit) Dimensions 1.625" H x 8.63" W x 7.75" D (41 mm x 219 mm x 197 mm) Weight 2.82 lbs (1.28 kg) - Reviews
