The C2G 40880 amplifier supplies 50 Watts of power, 25 Watts per channel, and is built to an industry standard 8 Ohm design. It supports many advanced features which make it a perfect fit for most applications.

Description
The 40880 8 Ohm 50W Audio Amplifier is the ideal solution for supporting a sound reinforcement system in a classroom, conference room or other environment that requires installation in a plenum space. This amplifier supplies 50 Watts of power, 25 Watts per channel, and is built to an industry standard 8 Ohm design. It supports many advanced features which make it a perfect fit for most applications.

Audio systems installed in commercial environments are susceptible to noise caused by an electrical ground loop. This will often manifest as a hum or buzz through the system. The 40880 features noise reduction technology on both the 3.5mm and RCA Stereo Audio inputs. This noise reduction eliminates the interference and allows the audio signal to pass through. After five minutes without a signal, the amplifier will enter standby mode providing energy savings. It will wake from standby mode instantly when a signal is received.

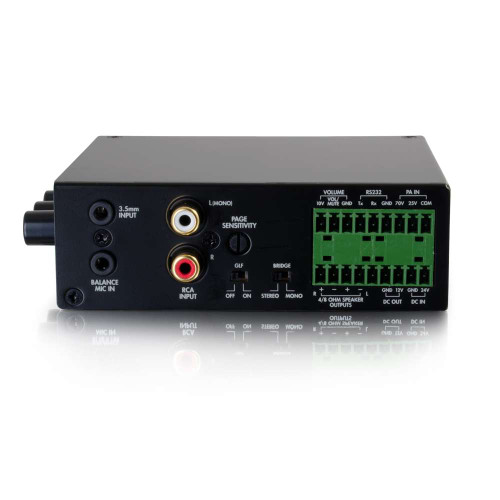

The 40880 amplifier accepts a 3.5mm and RCA Stereo Audio input as well as a 3.5mm Microphone input. The mixing function ensures that audio from all three inputs are mixed and sent to the speaker outputs. The accessory power output provides 12 Volts DC and 500 mAmps. This makes the amplifier the perfect match for a controller such as the TruLink A/V Controller. The 40880 designed to accept either RS232 control or control signals from an industry standard volume control. Also the PA sensor will automatically mute the audio inputs of the amplifier allowing the public address to be heard.

Features
  • Reduces noise in commercial environments
  • Industry standard 8 Ohm design
  • Designed for installation in Plenum air spaces

Specifications
RoHS Yes
Impedance >18KΩ unbalanced
Frequency Response 20Hz to 20 KHz (+1dB -3dB)
THD + Noise ±0.05% @ 1 KHz at nominal level (1 watt)
Signal Noise >80dB
Input Sensitivity -10dBV (316mV)
Amplifier Type Class D
Output Power Mono 50 watt ± 3 watt at 1KHz, 4ohm load, Stereo—25watt + 25watt ± 3watt at 1KHz, 15+15W, 8 ohm load
External Power Supply 100VAC to 240VAC
Enclosure Metal
Operating Temperature 0 TO +50° C / 10% TO 90% RH, Non-condensing
Storage Temperature -25° TO +70° C / 10% TO 90% RH, Non-condensing
Approvals RoHS2, FCC, UL, Plenum
Dimensions 1.49" (37.85 mm) x 4.31" (109.47 mm) x 4.54” (115.32 mm)
Weight 2.66 lbs (1.21 kg)

DOCUMENTS

In The Box
  • 50W Audio Amplifier
  • AC Adapter
  • AC Power Cord
  • Mounting Ears (desk or wall mount) x2
  • 9 Pin Captive Screw Plug x2
  • User Manual
