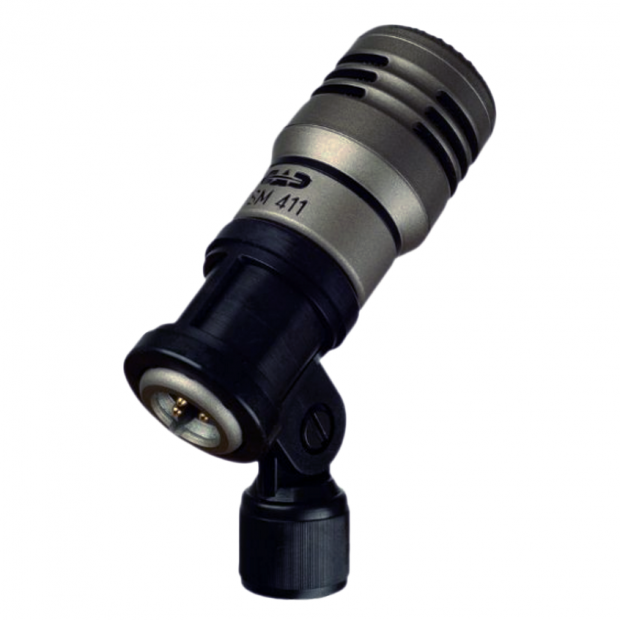

CAD Audio TSM411 Snare Drum Microphone (Discontinued)

Part # TSM411
Model # TSM411

The CAD Audio TSM411 is a supercardioid, moving-coil dynamic microphone specifically designed for the capture and reinforcement of acoustic percussive instruments.

Description

Details

The TSM411 is a supercardioid, moving-coil dynamic microphone specifically designed for the capture and reinforcement of acoustic percussive instruments. The dual-point, polymer, capsule-suspension system and the supercardioid polar pattern provide vibration isolation and off-axis rejection crucial for on-stage clarity. Neodymium magnetics allow reduced coil mass for transient agility and impedance reduction. Although designed with percussion in mind, excellent results are also obtained when used on most electrical and acoustical instruments. The die-cast metal body and hardened protective steel screen provide rugged durability. Shock-isolating swivel mount is included.

Features

Features

  • Compact, electrodynamic, conceived for percussive instrumentation
  • Polymer floatation decouples the rare-earth transduction from the metal enclosure
  • Supercardioid Polar Pattern
  • Frequency Response: 100Hz to 15KHz
  • 310Ω Impedance
  • Included mic clip provides additional isolation
Specification
Generating ElementNeodymium Dynamic
Polar PatternSupercardioid
Frequency Response50 Hz - 15 kHz
Sensitivity-74 dB 0dB=lV/uBar @ 1 kHz 2mV/PA
Impedance300Ω ± 30% @1 kHz
HousingDie Cast Zinc Alloy
Finish"Titanium Gray"
