CAD Audio WX4000 Wireless Handheld System (Discontinued)
CAD Audio WX4000 Wireless Handheld System (Discontinued)

By CAD Audio

CAD Audio WX4000 Wireless Handheld System (Discontinued)

Write a Review
Part #:
WX4000
Model #:
WX4000
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The CAD Audio WX4000 Digital Wireless features True Diversity operation to minimize multipath interference.

Description

The CADLive 4000 series Digital Wireless features True Diversity operation to minimize multipath interference. Frequency agile design partnered with ScanLink™ technology will precisely scan, select and link to the optimum channel allowing for easy flexible frequency planning. CADLive wireless features 10, 30, 50mW transmitter power adjustment and dynamic range up to 115dB. Receivers and transmitters are equipped with a high definition LCD display and full RF, AF, Battery Life, Mic Sensitivity and RF power metering.

The CADLive handheld transmitter features metal construction and the CADLive D90 Supercardioid dynamic capsule that provides a powerful, smooth and highly articulate profile. The handheld and body pack transmitters also include SoftTouch™ multi-function On-Off/Mute switches. CADLive bodypack transmitters are equipped with CADTone™ circuitry ensuring accurate reproduction of Hi-Z guitar and Lo-Z mic inputs.

Features
  • Transmitters feature 10, 30, 50mW power adjustment to aide in multiple system applications
  • 902 - 928MHz operation free from FCC TV spectrum legislation
  • Simultaneous usage of up to 17 systems
  • Dynamic Range > 115dB
  • AA Batteries with up to 15 Hrs of battery life
  • Systems ship with rack ears single/dual BNC relation kit and durable carry case
  • BodyPack systems include miniature E19 Earworn, E29 Lav, WXGTR guitar cable
  • XLR and 1/4" outputs on receiver

Specifications
Frequency Range T Band 902 – 928 MHz
Frequency Response 40Hz to 15kHz
Capsule D90 Supercardioid
Dynamic Range >115dB
Transmitter Power Switchable 10, 30, 50mW
Battery Life Up to 15 hours
Weight 5lbs (2.27 kg)

DOCUMENTS

Related Products

Sold Out

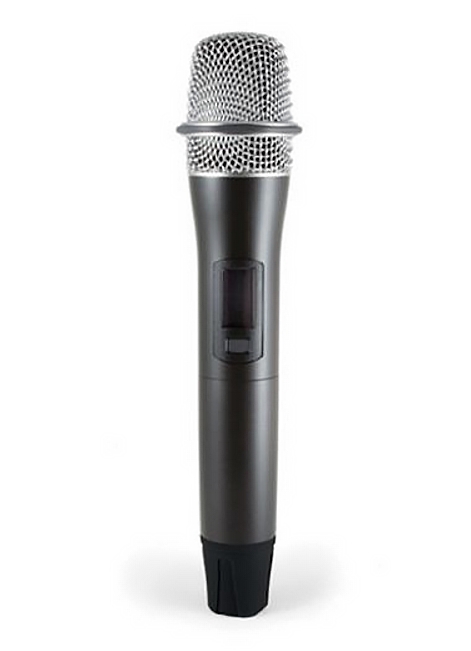

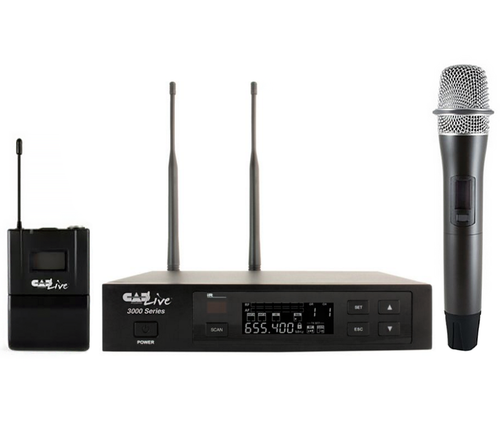

CAD Audio WX3000 Wireless Handheld System (Discontinued) CAD Audio WX3000 Wireless Handheld System (Discontinued)
