CAD Equitek E100S Supercardioid Condenser Microphone (Discontinued)

Part #:
E100S
Model #:
E100S
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Engineered and built in the USA, the CAD E100S large diaphragm supercardioid condenser has the lowest noise floor in its class (3.7 dBA) and the smooth, vintage tone and robust low end CAD is known for.

Description

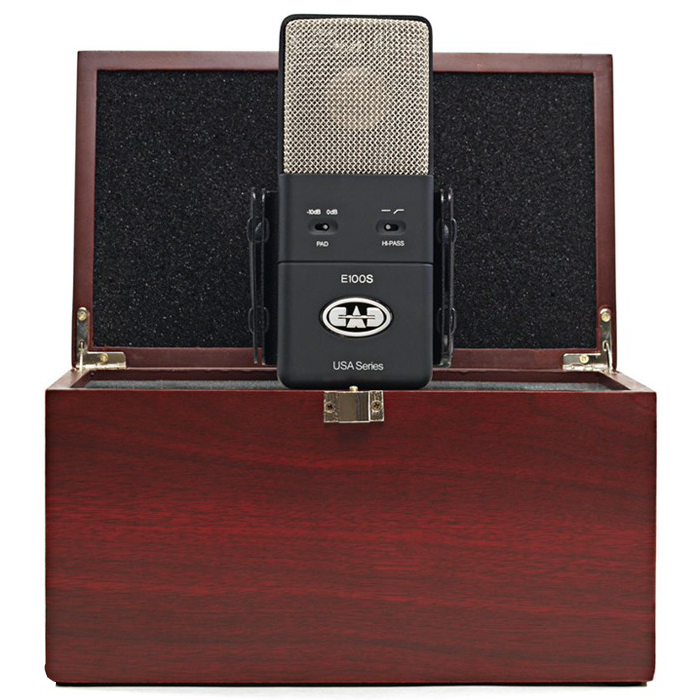

Engineered and built in the USA, the E100S large diaphragm supercardioid condenser has the lowest noise floor in its class (3.7 dBA) and the smooth, vintage tone and robust low end CAD is known for. The bootstrapped, full differential Quadra-FET ™ front end delivers high sensitivity and low distortion, plus CAD’s proprietary circuitry ensures the highest performance. The nickel plated 1" capsule delivers accurate phasing on instruments, and a full rich vocal tone, accentuated by the extended low frequency response. Features include an 80Hz hi-pass filter and a 10dB pad. From vocals to percussion, acoustic instruments and everything in between, the CAD Equitek E100S will prove to be one of the most versatile tools in your microphone locker, in the studio or on stage. Vintage woodgrain cherry case and stealth shock mount included. 48V Phantom power is required.

Features

  • Large diaphragm supercardioid condenser
  • Bootstrapped, full differential Quadra-FET ™ front end delivers high sensitivity and low distortion
  • Nickel plated 1 inch capsule
  • 80Hz hi-pass filter and a 10dB pad
  • 48V Phantom power
  • Vintage woodgrain cherry case and stealth shock mount included

Specifications

Operating Principle Condenser
Polar Pattern Supercardioid
Frequency Response < 40Hz – 18KHz
Sensitivity -30dBV (28mV) @ 1Pa
Impedance 150Ω
Max SPL 150dB (Pad Engaged)
Self Noise 3.7 dBA (best in class)
Hi-Pass 80Hz Attenuator: 10dB
Power requirements P48
Dimensions (H x W) 6.06" (154 mm) x 2.47" (62.7 mm)
Net Weight 22 oz (610 g)
