| PA919SD |
| Speaker System |
|
| Speaker |
Bass reflex design tuned to 50 Hz |
| Woofer |
10.0” diameter, 2.0” diameter voice coil, 2.5 lbs magnet, moisture resistant cone, 120 W capacity |
| Horn Tweeter |
4.25” square, 0.75 lb magnet, 1.0” diameter voice coil, 30 W RMS capacity, phenolic diaphragm |
| Frequency Response |
45 Hz to 18 kHz |
| Amplifier |
90 W RMS |
| Power Sources |
100-240 volt AC universal power supply, two 12V lead acid batteries included |
| Wireless System |
|
| Transmitter |
16-channel UHF wireless, 904-925MHz, PLL, 300’ range |
| Receivers |
Two 16-channel UHF wireless, 904-925MHz, PLL, internal antenna, on/off volume control |
| Digital Capability |
Play & record, SD Card slot, USB 2.0 |
| Built-in CD Player |
Programmable, anti-shock mechanism, shuffle |
| Mixer Panel |
|
| Wired Mic In #1 and #2 |
Combo XLR / 1/4” jack, mic volume, speech/music switch |
| Voice Music Switch |
Adds emphasis in voice frequency range for longer range projections |
| Line In |
Via dual white & red RCA jacks, line in with level control |
| Line Out |
Via dual white & red RCA jacks |
| Voice Priority Switch |
Mic override of background music (ducking) |
| Speaker Mute |
Mutes main speaker, connected speakers (wired/wireless) |
| Speaker Out |
Switched 1/4” jack disengages main speaker |
| Audio Controls |
Separate Treble & Bass, Digital Master Volume Control |
| Mechanical Features |
|
| Enclosure |
Fiberglass reinforced polypropylene |
| Grille |
0.06" (1.5 mm) steel with powder-coated finish |
| Battery |
Front-accessible with removal of two service screws |
| Tripod Mount |
Recessed, molded at the optimum center of gravity |
| Power Cord |
Detached 6’, 3-Wire for safety |
| Dimensions |
24” (609.6 mm) x 14” (355.6 mm) x 14” (355.6 mm) |
| Weight |
61 lbs (27.67 kg) |
| Shipping Weight |
65 lbs (29.48 kg) |

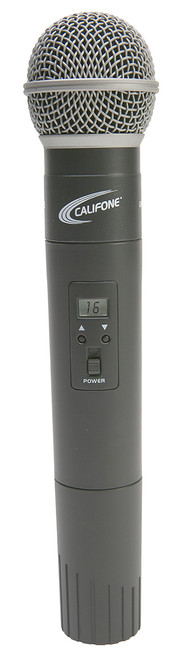

| Q319 Wireless Microphone |
| Type |
Dynamic |
| Pattern |
Unidirectional |
| Carrier Frequencies |
904 - 925 mHz (16 channel) |
| Frequency Response |
90 Hz - 17kHz |
| Frequency Stability |
±5kHz |
| Oscillator |
PLL Synthesized |
| Modulation |
FM (frequency modulation) |
| Transmission Power |
10 dBm |
| Spurious Rejection |
55 dB |
| Distortion |
> 1% THD |
| Dynamic Range |
90 dB |
| Range |
Up to 150' |
| Current Consumption |
42 mA |
| Input Jack |
0.14" (3.5 mm) |
| Signal-to-Noise Ratio |
90 dB |
| AF Modulation Depth |
20K (AF=1KHz 50MV) |
| Volume Code Modulate Depth |
3.5K±0.5K |
| AF Frequency Response |
80Hz~18kHz (±3dB) |
| Battery |
9V Battery |
| Safety/Compliance Testing |
CE, FCC, RoHS |
| Speaker Compatibility |
PA919SD, PA919, PA919PS, PA319, PI39 |
| Dimensions |
2.0" Diameter x 9.0" Length (51 mm x 229 mm) |
| Weight |
10 oz (0.28 kg) |
| Shipping Weight |
1.0 lb (0.45 kg) |
