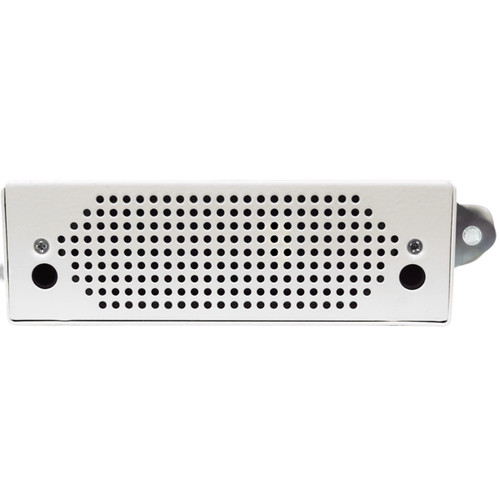

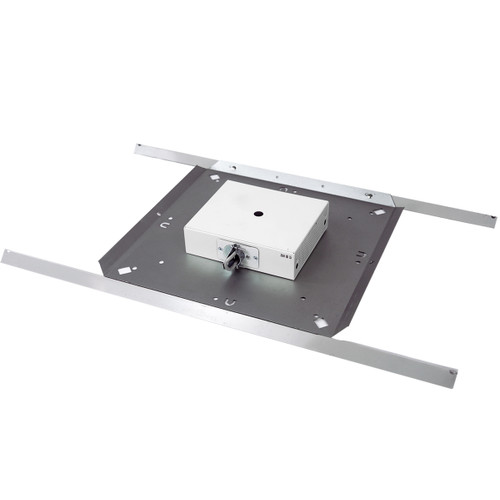

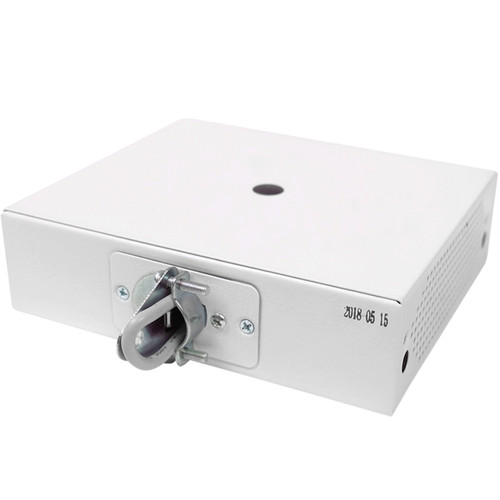

The DS1398B is a purpose-built ceiling loudspeaker engineered for sound masking and paging in modern office and commercial environments. Unlike under-floor models, the DS1398B is supplied with a tile bridge mount, making it immediately ready for secure installation in ceiling plenums and other overhead spaces.
Its dual, horizontally opposed drivers with tuned ports are designed to deliver smooth and uniform 360-degree audio coverage, eliminating gaps and ensuring consistent masking performance across open environments. The integrated 70V transformer with selectable power taps provides seamless compatibility with distributed audio systems.
With its low-profile enclosure, the DS1398B can fit in cavities as shallow as 1.75 inches, while still delivering powerful and evenly dispersed sound. Certified to UL 1480, UL 2043, and CSA standards, the DS1398B is rated for use in air-handling plenums, ensuring both safety and reliability.
Compact, discreet, and installer-friendly, the DS1398B offers a complete solution for delivering professional-grade sound masking and paging in offices, healthcare facilities, call centers, and other noise-sensitive environments.
Note: Formerly sold under the Dynasound brand, the DS1398B continues to offer the same quality and features.
| Output Power Rating | 10W continuous |
|---|---|
| Sensitivity (2.83V @ 1m) | 80.7 dB SPL |
| Enclosure Material | 1 mm cold rolled steel, powder coated |
| Connections | 2-wire pigtail |
| Cabling | 2-conductor 18AWG to 16AWG, plenum rated |
| Compliance | ETL Listed (USA) CSA Listed (Canada) |
| Drivers | 4" (102 mm) × 1.5" (38 mm) |
| Nominal Impedance | 4 Ω |
| Nominal Dispersion | Horizontal: 160° Vertical: 325° |
| Frequency Range (-10 dB) | 160 Hz — 6.3 kHz |
| Dimensions (H x W x D) | 1.8" (46 mm) x 6.25" (159 mm) x 5.25" (133 mm) |
| Weight | 1.75 lbs (0.8 kg) |
