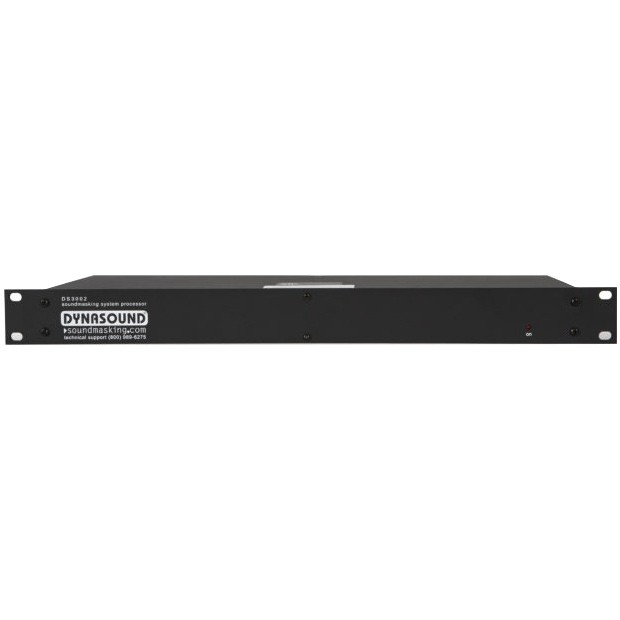

The DS3002 is designed to provide sound masking, paging and music functions for centralized and networked sound masking systems. Each DS3002 provides four independent sound masking generators, each having 1/3 octave band equalization, adjustable high pass and low pass filters. Additionally, two balanced line level inputs, two balanced line level outputs and a matrix mixer facilitate configuring any mix of incoming signals with any of the sound masking generators and then routed to any of the outputs. Input processing includes per channel level control, equalization and configurable “softknee” compression. Output processing includes per channel level control for both analog and network audio. This feature provides unique functionality for use in traditional 70V centralized systems, networked addressable systems or systems combining both approaches.
Note: Formerly sold under the Dynasound brand, the DS3002 continues to offer the same quality and features.
| Frequency Response | Sound Masking: 100 Hz to 10 kHz Music/Paging: 20 Hz to 20 kHz |
|---|---|
| Sound Masking Equalization (125 Hz - 10kHz) | 1/3 Octave Bands |
| Masking | |
| Number of Masking Zones | Up to 2 |
| Masking Sources | 4 |
| Audio Inputs | |
| Number of Inputs | 2 (Mono) |
| Input Impedance | 0 kΩ balanced / 10 kΩ unbalanced |
| Audio Outputs | |
| Number of Outputs | 2 (Mono) |
| Nominal Output Impedance | 150 Ω |
| Network Connection | RJ-45 with Ethernet cable (Cat 5e and above) |
| Power Supply | |
| Operating Voltage | 120 VAC 50/60 Hz |
| Output | 16 VAC @ 1.0A |
| Max. Power Consumption (16 VAC) | 22W |
| Compliance | ETL listed (USA) |
| Dimensions (H x W x D) | 1.75" (44 mm) x 19" (483 mm) x 8" (203 mm) |
| Weight | 6 lbs (2.72 kg) |
