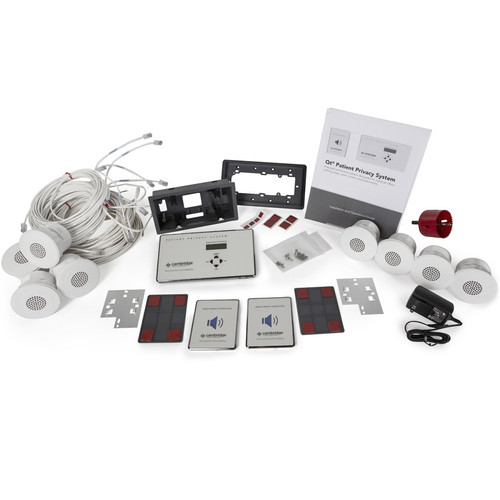

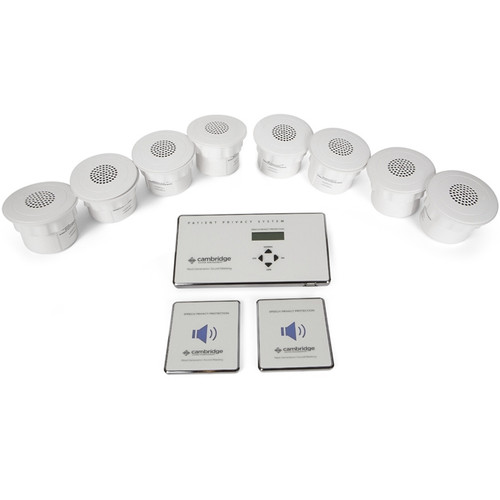

Improve patient speech privacy and create a more comfortable healthcare environment with the Cambridge Qt Patient Privacy Sound Masking System. Designed for doctors' offices, hospitals, clinics, urgent care facilities, reception areas, waiting rooms, exam rooms, and pharmacies, this system helps reduce the intelligibility of nearby conversations by introducing a carefully controlled level of background sound. The package includes eight direct-field Qt sound masking emitters, a wall-mounted control module, two illuminated privacy signs, and the necessary installation cables and mounting accessories. With coverage for spaces up to 800 square feet, the system provides an effective solution for supporting patient confidentiality and minimizing distracting conversations.

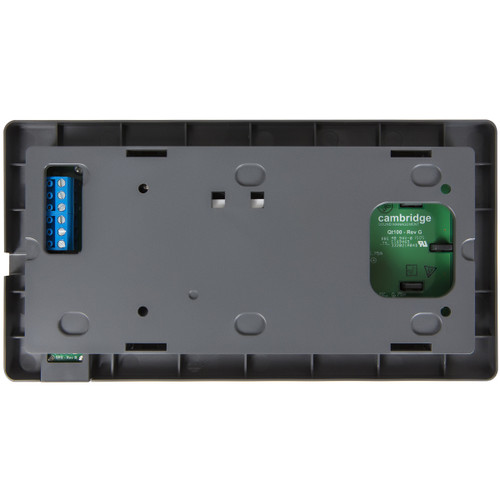

The Qt Patient Privacy control module manages the system's direct-field sound masking output, providing adjustable masking levels through an integrated LCD display and front-panel controls. It operates as a single-zone controller with two emitter cable runs and four non-correlated masking sources, helping distribute consistent background sound throughout the covered space. Independent ramp-up and ramp-down settings allow gradual transitions when activating or deactivating masking. The module can be wall-mounted, installed using the supplied mounting accessories, or integrated into a compatible electrical box for a clean, professional appearance. The system also supports an audio input for compatible music or paging sources.

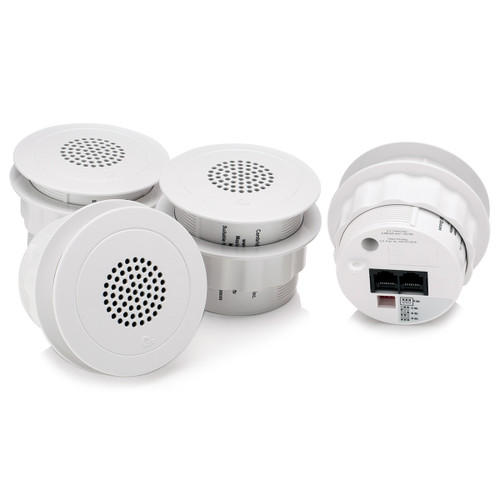

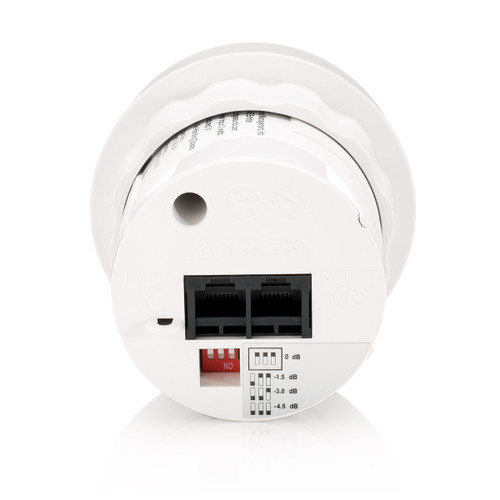

The eight included Qt emitters are compact ceiling-mounted sound masking devices designed to introduce low-level background sound directly into the occupied space. Each emitter features a 1.25" driver, approximately 170-degree conical dispersion, and four-channel automatic sequencing to help minimize phase interference between neighboring emitters. Built-in attenuation settings of 0 dB, -3 dB, -6 dB, and -9 dB allow localized adjustments for different acoustic environments. The emitters feature RJ45 input and output connections for convenient daisy-chain installation using the included plenum-rated cables. With a compact white enclosure and ceiling tile mounting ring, the emitters integrate discreetly into professional healthcare environments.

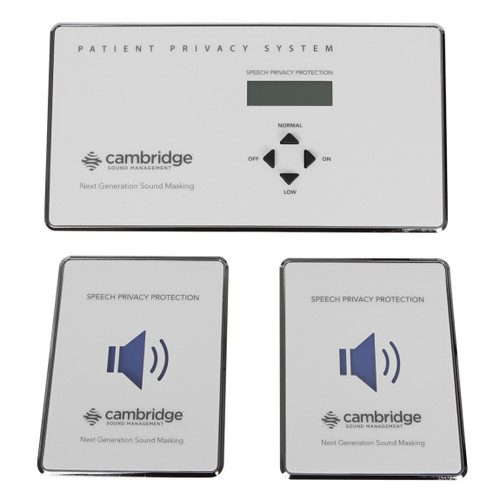

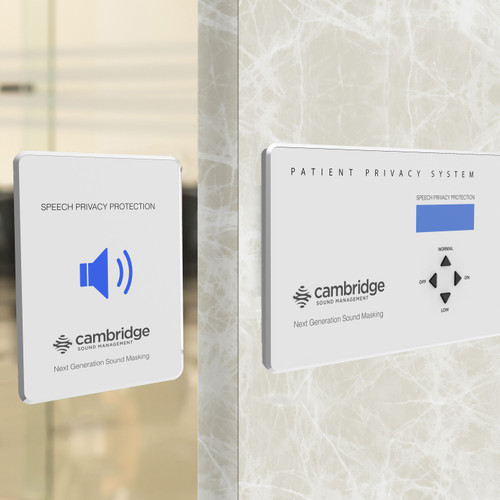

The two included illuminated privacy signs provide a visible indication that the sound masking system is operating. Designed for placement near waiting rooms, reception desks, exam rooms, and other areas where confidential conversations occur, the signs help communicate the facility's attention to patient speech privacy. They receive power from the control module through the included 50-foot plenum-rated cables and can be installed using compatible single-gang electrical boxes, surface mounting accessories, or glass mounting hardware.
Installation Note: The included eight-emitter system supports spaces up to 800 square feet under suitable installation conditions. Actual speech privacy performance depends on room acoustics, background noise, emitter placement, and system adjustment. Sound masking can support an organization's patient privacy practices but does not independently guarantee HIPAA compliance or prevent every conversation from being overheard. Additional mounting hardware may be necessary for ceiling types other than standard acoustic ceiling tile.
| System Model | QT-HCE |
|---|---|
| System Type | Direct-Field Patient Privacy Sound Masking System |
| Recommended Coverage | Up to 800 sq. ft. |
| Number of Masking Zones | 1 Zone with 2 Emitter Cable Runs |
| Non-Correlated Masking Sources | 4 |
| Number of Audio Inputs | 1 Stereo or Mono Input |
| Audio Input Level | +4 dBu Nominal, 2V RMS Maximum |
| Audio Input Impedance | 5,000 Ohms |
| Audio Input Connector | Balanced/Unbalanced Captive Screw Terminal |
| Masking Level Adjustment | 0.5 dB Increments |
| Masking Ramp Times | 0 - 120 Seconds, Independently Adjustable |
| Emitter Output Connections | (2) RJ45 Connectors |
| Maximum Emitter Capacity | 60 per Cable Run, 120 Total |
| Maximum Emitter Cable Run | 1,000 ft (300 m) |
| Power Supply Input | 100 - 240V AC |
| Power Supply Output | 24V DC, 1A |
| System Power Consumption | Less Than 7W |
| Control Module Dimensions (H x W x D) | 4.44" (113 mm) x 8.31" (211 mm) x 1.06" (27 mm) |
| Control Module Weight | 0.7 lbs (300 g) |
| Privacy Sign Quantity | 2 Illuminated Signs |
| Privacy Sign Dimensions (H x W x D) | 4.5" (113 mm) x 3.5" (90 mm) x 0.19" (4.8 mm) |
| Privacy Sign Weight | 0.1 lbs (50 g) Each |
| Privacy Sign Power | Supplied by Control Module via Included 20 AWG Plenum-Rated Cables |
| Qt Emitter Quantity | 8 |
| Emitter Type | Passive with Transformer |
| Emitter Driver Diameter | 1.25" (32 mm) |
| Emitter Sound Masking Frequency Response | 200 Hz - 6.3 kHz |
| Emitter Music/Paging Frequency Response | 200 Hz - 10 kHz |
| Emitter Masking SPL | 30 - 57 dBA at 1 Meter |
| Emitter Maximum Music/Paging SPL | 56 dBA at 1 Meter |
| Emitter Nominal Impedance | 3.6 kOhms |
| Emitter Dispersion | 170° Conical, Half-Space |
| Emitter Channel Selection | 4 Auto-Sequencing and Repeating Channels |
| Emitter Attenuation | 0 dB, -3 dB, -6 dB, -9 dB |
| Emitter Connections | (2) RJ45 Connectors |
| Emitter Dimensions | 2.5" (64 mm) Height x 3.25" (83 mm) Diameter |
| Emitter Weight | 5.6 oz (159 g) Each |
| Emitter Cutout Diameter | 2.68" (68 mm) |
| Emitter Cable Type | Plenum-Rated Category UTP Cable |
| Included Emitter Cabling | (1) 50ft Homerun Cable and (7) 16ft Audio Cables |
| Included Privacy Sign Cabling | (2) 50ft Plenum-Rated 20 AWG 2-Conductor Cables |
| Emitter Compliance | ETL Listed, CE Marked, RoHS Compliant; Evaluated to UL 2043 Requirements |
