Incredible sound and easy operation make the Carvin QX15A our finest 15" active loudspeaker. Premium DSP processing from Analog Devices™ delivers controlled sound from its 4 selections of normal intelligent sound, monitor playback, DJ, and external sub functions.

Description

Carvin QX15A 1000W Active 15" Loudspeaker with DSP

Incredible sound and easy operation make the QX15A our finest 15-inch active loudspeaker. Premium DSP processing from Analog Devices™ delivers controlled sound from its 4 selections of normal intelligent sound, monitor playback, DJ, and external sub functions. 2 amplifiers provide enhanced intelligibility, one for bass and the other for high frequencies plus power to spare from the 1000 watt output.

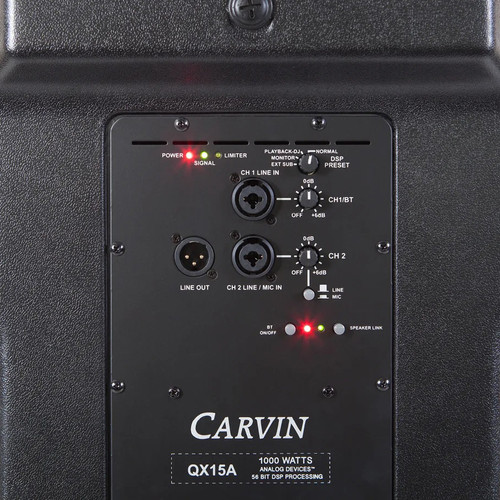

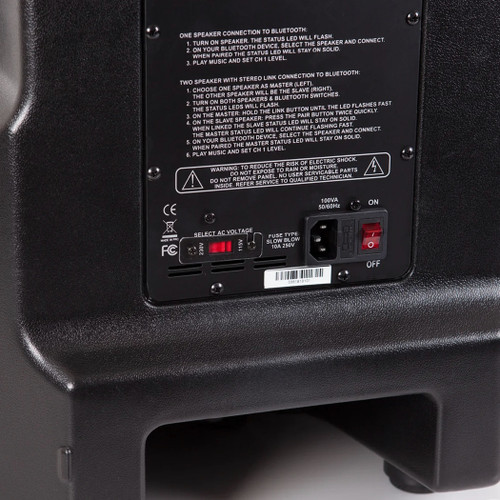

The QX15A's deep, rich bass and crystal-clear high-end projects far to the rear with intelligent articulation so everyone can hear clearly. 3 different inputs are offered for Mic, Line, or BT operations with an extended range Bluetooth™, streaming stereo wirelessly from your phone or tablet. Pair a second QX15A for a true wireless stereo setup or mono operation that doesn’t require a second cable to connect. The universal power supply adapts to all countries for 115 or 230 VAC 50-60 Hz operation. The QX15A can be used with a stand as a main, as a floor monitor, or installed from its 3-point mounting system. Its precision assembly and rugged design, which includes a water-resistant molded enclosure and powder coated steel grill is ideal for touring. The QX15A is a premium, universal powered loudspeaker that projects distortion-free, high fidelity audio to your audience.

Features

  • System Type: 15" 2-way, Active Bass Reflex
  • Frequency Response: 54Hz-18kHz (-10dB) 62Hz-16kHz (-3dB)
  • Power: 1000W Program
  • Coverage Pattern: Main 90x60 Monitor 60x90
  • Sensitivity (1W/1m): 98dB
  • Maximum SPL: 130dB
  • Maximum Input Signal: +12dBu
  • LF: 15" Woofer 4 Ohms
  • HF: 1.74" 8 Ohms
  • Enclosure: Virgin polypropylene
  • Color: Black
  • Grill: Black powder coated 16-ga steel with cloth backing
  • Transport: 2 Recessed handles
  • Pole Mount: 1.38" pole mount cup with thumb screw
  • Suspension points: 3 points using M8-1.25 x 30mm
  • AC Mains Input: 100V-230V (50-60Hz)

Specifications

Dimensions (H x W x D) 27.5" (698.5 mm) x 15.5" (393.7 mm) x 17.75" (450.85 mm)
Weight 42 lbs (19.05 kg)
