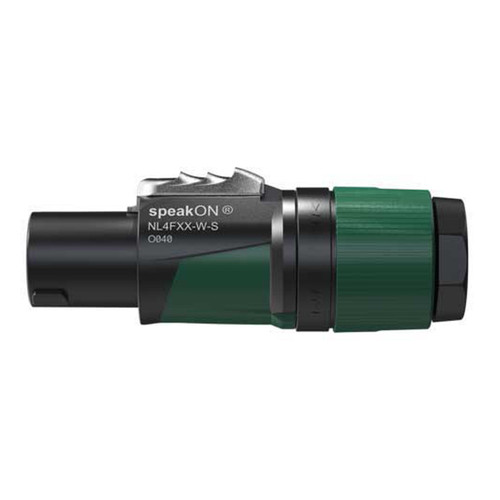

The BC-NL4FXX-W-S 4-pole speakON cable connector is a professional solution for secure and dependable loudspeaker connections. Designed to meet industry standards, it features a proven twist-lock locking system that ensures a stable connection in demanding live sound and installation environments. With a current rating of up to 37A RMS, it supports high-power audio applications with consistent performance.
This connector uses screw-type terminals with stranded wire protection to ensure a strong and reliable electrical connection. The integrated strain relief system is designed for cable diameters from 6 to 12 mm, providing excellent cable retention while reducing stress on the connection. Its ergonomic two-component molded housing offers a secure grip, improved durability, and enhanced kink protection for longer cable life.
Built to high-quality standards and certified to IEC 61984, the BC-NL4FXX-W-S is engineered for reliability and ease of assembly. The strain relief locks mechanically with the insert for precise alignment, making installation simple and efficient. Ideal for professional audio setups, it delivers consistent performance for touring, stage, and installed sound systems.
| Connector Series | speakON 4 pole |
|---|---|
| Contact Resistance | ≤2 mΩ |
| Dielectric Strength | 2.8 kVac |
| Insulation Resistance | >10 GΩ (initially) |
| Number of Electrical Contacts | 4 |
| Rating | UL1977: 35A 250V AC |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Zinc diecast |
| Shell | Polyamide (PA6)/TPE |
| Strain Relief | Polyketone |
| Bushing | Polypropylene/TPE |
| Temperature Range | -33°C to +80°C |
| Protection Class | IP20 |
| Cable O.D. | 6 - 12 mm |
