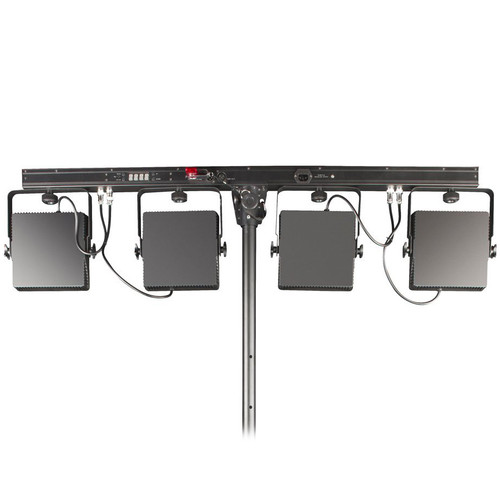

CHAUVET DJ 4BAR USB Complete Stage Lighting System (Discontinued)

Description

The 4BAR USB is a complete washlighting solution for mobile entertainers. D-Fi USB compatible for wireless master/slave or DMX control, it also includes a wireless footswitch that can control multiple units. Create synchronized light shows using built-in automated programs with the optional IRC-6 remote.

Features

• Complete wash lighting solution designed for mobile entertainers
• Out of the box wireless control with included footswitch that controls multiple units
• Achieve total room or stage coverage with 4 individually adjustable heads
• D-Fi USB compatibility for wireless master/slave or DMX control
• Easily set-up and tear down in minutes using the included tripod, wireless footswitch and carry bags
• Increase mounting options by safely mounting to truss using the built-in bolts
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
• Sound-activated programs dance to the beat of the music
• Easily control static colors and automated programs with the optional IRC-6 remote
• Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

DMX Channels	3 or 15
DMX Connectors	3-pin XLR
Light Source	432 LEDs (144 red, 144 green, 144 blue) 0.25W, (20 mA), 100,000 hours life expectancy
Strobe Rate	0 to 20 Hz
PWM Frequency	1.2 kHz
Beam Angle	21°
Field Angle	33°
Illuminance	725 lux @ 2 m (per pod)
Power Linking	8 units @ 120 V; 14 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	36W, 0.6 A @ 120 V, 60 Hz 36W, 0.3 A @ 230 V, 50 Hz
Approvals	CE
Optional Controllers	IRC-6, D-Fi USB
Stand Height	7 ft 4 in (2.2 m)
Dimensions	47.4" (1205 mm) x 2" (50 mm) x 11" (285 mm) Controller: 12.4" (315 mm) x 5.2" (132 mm) x 1.5" (38 mm)
Weight	10.8 lbs (4.9 kg) Controller: 0.8 lbs (1.8 kg)

DOCUMENTS

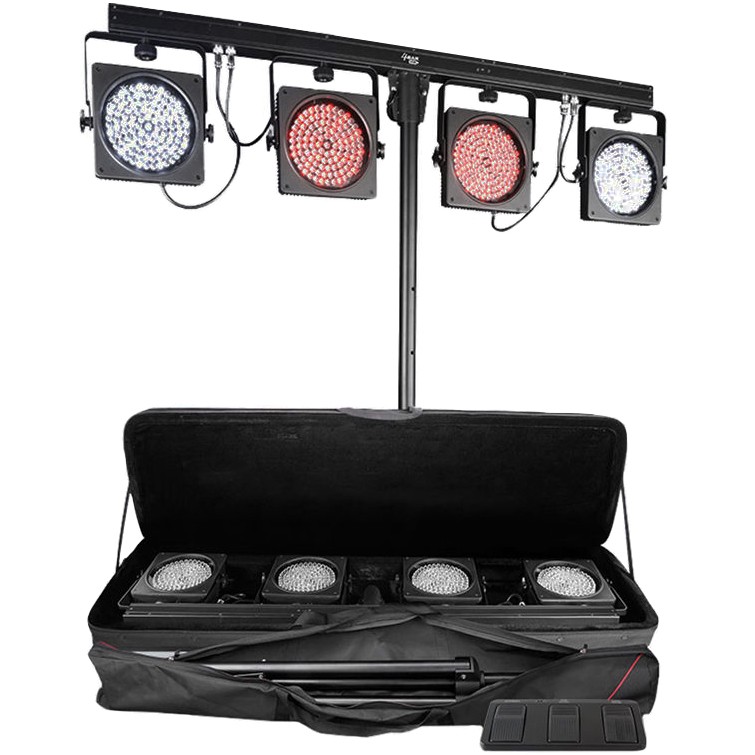

System Includes

• (1) 4BAR USB
• (1) Wireless Footswitch
• (1) Tripod
• (1) 4BAR Carrying Bag
• (1) Stand Carrying Bag
• (1) Power Cord
• Quick Reference Guide / Warranty Card
