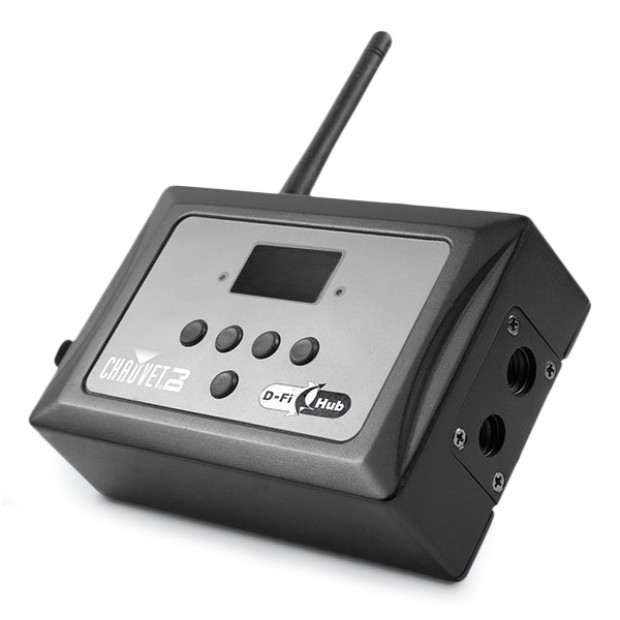

CHAUVET DJ D-Fi Hub Wireless DMX Transmitter/Receiver
CHAUVET DJ D-Fi Hub Wireless DMX Transmitter/Receiver
CHAUVET DJ D-Fi Hub Wireless DMX Transmitter/Receiver
CHAUVET DJ D-Fi Hub Wireless DMX Transmitter/Receiver
CHAUVET DJ D-Fi Hub Wireless DMX Transmitter/Receiver
By CHAUVET

CHAUVET DJ D-Fi Hub Wireless DMX Transmitter/Receiver

Write a Review
Part #:
DFIHUB
Model #:
D-Fi Hub
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The D-Fi Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly.

Description

The D-Fi Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly. You can wirelessly synchronize an unlimited number of D-Fi-ready fixtures simultaneously, and operate them using the simple navigation on the OLED digital display.

Features
  • Compact, easy-to-use wireless D-Fi transmitter and receiver in a single unit
  • Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously
  • Built-in options include manual or automatic channel selection
  • Simple navigation and text readout using the OLED digital display

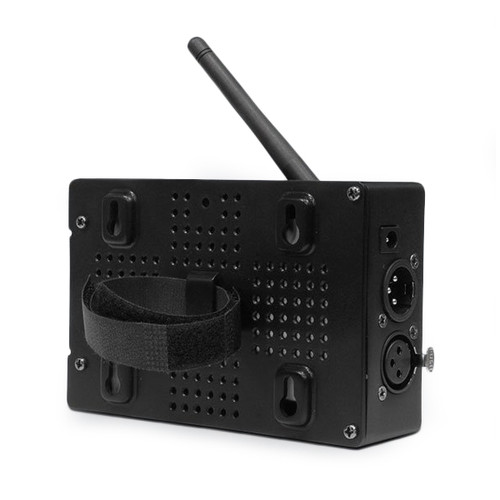

  • Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
  • Fully FCC/RTTE compliant

Specifications
DMX Connectors 3-pin XLR
Input Voltage 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
Power and Current 4W, 0.1 A @ 120 V, 60 Hz 4W, 0.1 A @ 230 V, 50 Hz
Max Unobstructed Distance 656 ft (200 m)
Approvals CE, FCC
Dimensions (H x W x L) 5.59" (142 mm) x 3.58" (91 mm) x 1.81" (46 mm)
Weight 1.2 lbs (0.6 kg)

DOCUMENTS

In The Box
  • (1) D-Fi™ Hub
  • (1) Power Supply
  • (1) Warranty Card
  • (1) Quick Reference Guide
