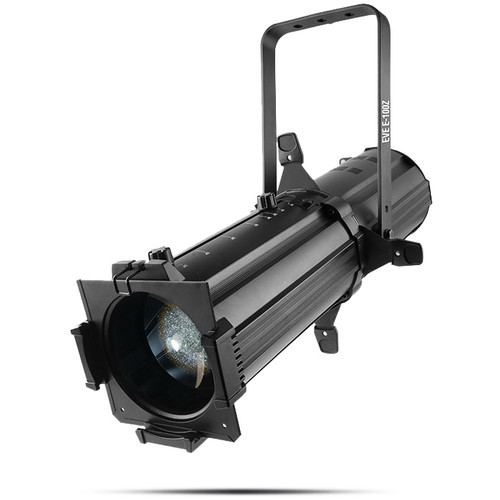

CHAUVET DJ EVE E-100Z Ellipsoidal LED Spotlight Fixture

Description

The EVE E-100Z is a powerful spot fixture featuring sharp pattern projection with a 100 W warm white LED light source. This versatile fixture works with metal or glass gobos to create incredible gobo or pattern details. The manual zoom and framing shutters make it simple to control beams.

Features

• LED Ellipsoidal shines a hard-edged, warm white spot in any direction
• Easily highlight areas by altering the projected beam with framing shutters
• Flexibility to project from any distance using the manual zoom
• Includes holders for glass and steel gobos and a gel frame
• Save time running extension cords by power linking multiple units
• Eliminate the need for DMX control with standalone operation

Specifications

DMX Channels	1 or 3
DMX Connectors	3-pin XLR
Light Source	1 LED (warm white) 100W (2.3 A), 50,000 hours life expectancy
Strobe Rate	0 to 30 Hz
Illuminance	(14°): 15,100 lux @ 2 m (30°): 3,800 lux @ 2 m
Power Linking	9 units @ 120 V; 16 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	106W, 0.9 A @ 120 V, 60 Hz 103W, 0.5 A @ 230 V, 50 Hz
Gobo Size	M (66 mm outside, 48 mm image, 2 mm max thickness)
Zoom Angle	Manual: 14° to 30°
Approvals	CE, MET
CRI	80
Color Temperature	3,500 K
Dimensions (H x W x L)	16.9" (430 mm) x 7.2" (183 mm) x 24" (611 mm)
Weight	12.6 lbs (5.7 kg)

DOCUMENTS

In The Box

• (1) EVE E-100Z
• (1) Gel Frame
• (1) Framing Shutters
• (1) Steel Gobo Holder
• (1) Glass Gobo Holder
• (1) Power Cord
• Warranty Card
• Quick Reference Guide
