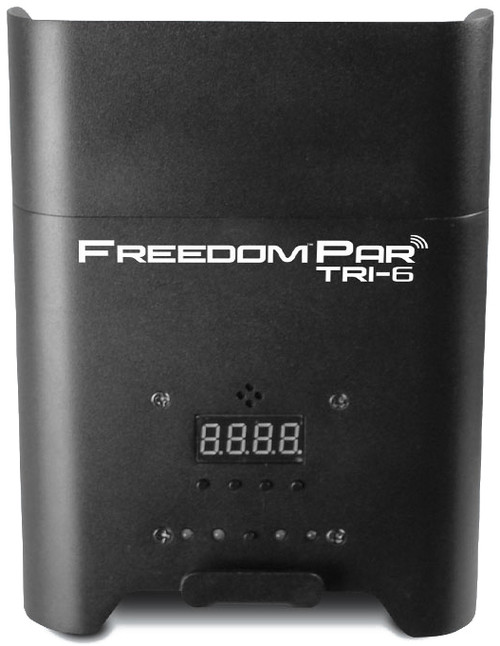

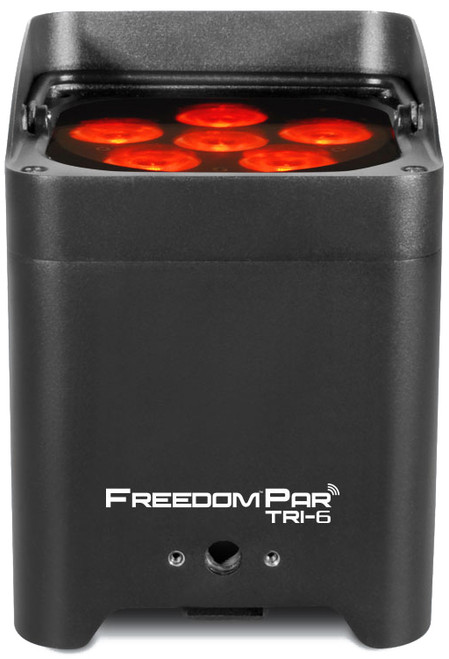

CHAUVET DJ Freedom Par Tri-6 Wireless LED PAR (Discontinued)

Description

The CHAUVET DJ Freedom Par Tri-6 is powerful, bright, and truly 100% wireless with a rechargeable battery and a built-in D-Fi transceiver. Freedom Par Tri-6 has 18 watts of RGB color mixing and can be operated with the control panel, the included CHAUVET® DJ IRC-6 remote, or from any mobile phone or tablet running FlareCON mobile app. Freedom Par Tri-6 fits perfectly inside TRUSST® and all other 12” box truss, and travels safely and stylishly in the CHAUVET® DJ CHS-FR4 VIP Gear Bag or using the Freedom Charge 9 road case.

Features

• 100% TRUE wireless, battery-operated, tri-color LED Par with built-in D-Fi™ transceiver
• Multiple wireless triggering and control options via the FlareCON™ Air and the FlareCON™ app
• Works in Master/Slave with first-generation Freedom™ Pars
• Shine light where it is needed using the built-in adjustable kickstand
• Built-in glare shield prevents light spillage
• Extend the battery’s lifespan with built-in discharge protection
• Convenient, wireless non-DMX control using the IRC-6 remote
• Create customized colors using the built-in LED display
• Achieve smooth LED fading with built-in dimming curves
• Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag
• Compact and lightweight design easily fits inside sticks of TRUSST®

Specifications

DMX Channels	3, 4, 5, or 9
DMX Connectors	3-pin XLR
Light Source	6 LEDs (tri-color RGB) 3W (600 mA), 50,000 hours life expectancy
Strobe Rate	0 to 17 Hz
PWM Frequency	1,200 Hz
Beam Angle	15°
Field Angle	29°
Maximum Run Time	All on: up to 8 hours Single color: 20 hours
Recharge Time	6 hours
Operating Frequency	2.412 to 2.484 GHz
Illuminance	1,938 lux @ 2 m
Power Linking	17 units @ 120 V; 30 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	32W, 0.5 A @ 120 V, 60 Hz 31W, 0.3 A @ 230 V, 50 Hz
Approvals	CE, FCC
Dimensions (H x W x L)	7.2" (184 mm) x 5.7" (145 mm) x 5.4" (138 mm)
Weight	5.8 lbs (2.6 kg)

DOCUMENTS

In The Box

• (1) Freedom Par Tri-6 Wireless LED PAR
• (1) IRC-6 Remote
• (1) Power Cord
• Quick Reference Guide
• Warranty Card
• Stickers
