CHAUVET DJ FXarray Q5 RGB+UV LED Effect Light (Discontinued)

Description

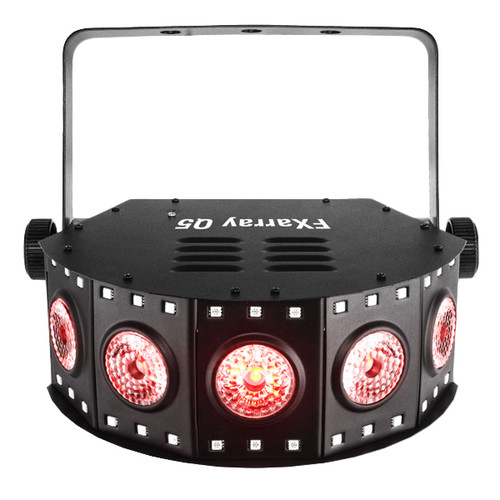

The FXarray Q5 is an exciting and versatile quad-color LED wash light. It features an array of RGB+UV LEDs to spread light evenly across the dance floor with brilliant eye candy effects. Control the wash LEDs and the RGB SMDs separately for dynamic light shows and generate eye-catching effects with sound-activated and automated programs. FXarray Q5 is compatible with IRC-6 for flexible control over all features.

Features

• Versatile quad-color LED wash light with brilliant eye candy effects
• An array of RGB+UV LEDs spread light evenly across the dance floor
• Control the wash LEDs and the RGB SMDs separately for dynamic light shows
• Generate eye-catching effects with sound-activated and automated programs
• Compatible with IRC-6 for flexible control over all features
• Save time running extension cords by power linking multiple units
• Fits best in the CHS-40 VIP gear bag

Specifications

DMX Channels	3, 10 or 30
DMX Connectors	3-pin XLR
Light Source	5 LEDs (quad-color RGB+UV) 6W, (2.1 A), 50,000 hours life expectancy 30 SMDs (tri-color RGB) 0.3 W, (0.1 A), 50,000 hours life expectancy
Strobe Rate	0 to 19 Hz
Beam Angle	22°
Field Angle	36°
Illuminance	314 lux @ 2 m (per pod)
Power Linking	15 units @ 120 V; 27 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	34W, 0.5 A @ 120 V, 60 Hz 32W, 0.3 A @ 230 V, 50 Hz
Approvals	CE
Optional Controllers	IRC - 6
Dimensions (H x W x D)	6" (155 mm) x 8" (207 mm) x 11" (285 mm)
Weight	3.4 lbs (1.6 kg)

DOCUMENTS

In The Box

• (1) FXarray Q5
• (1) Hanging Bracket with Mounting Hardware
