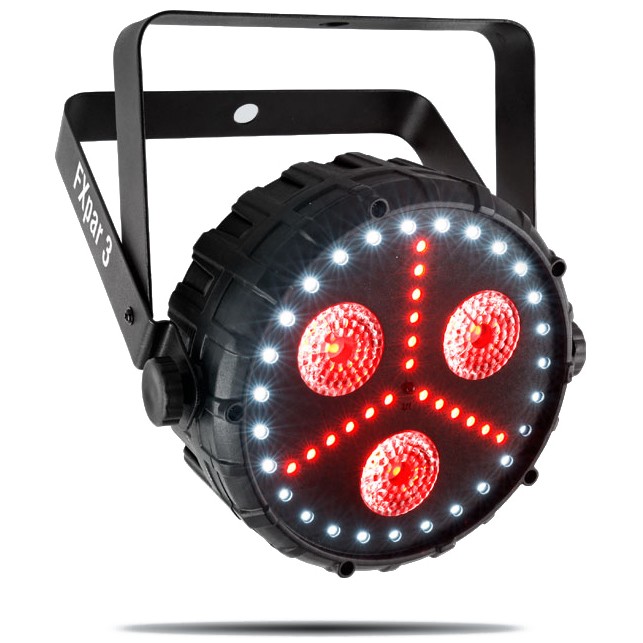

CHAUVET DJ FXpar 3 Compact Effect PAR Fixture (Discontinued)

Description

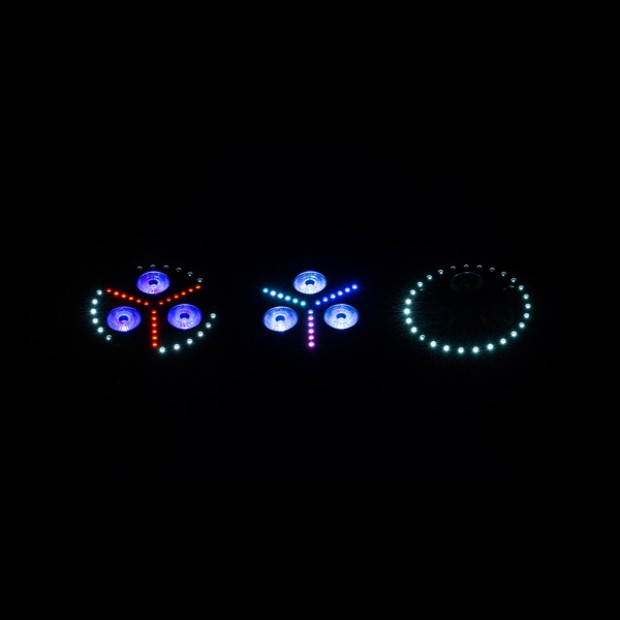

The CHAUVET DJ FXpar 3 is a compact effect par with multiple technologies in a single fixture. It includes three 8W Quad-color (RGB+UV) center LEDs, RGB SMD LED lights and SMD strobes. Separate control of these features makes creating breathtaking effects easy. FXpar 3 is compatible with IRC-6 for flexible control over all features and includes powerful sound-activated and automated programs.

Features

• Compact effect par with multiple technologies in a single fixture
• RGB + UV in center wash for increased color mixing and effects
• Separate control of center LEDs, RGB SMDs and SMD strobes for dynamic effects
• Compatible with IRC-6 for flexible control over all features
• Generate eye-catching effects with sound-activated and automated programs
• Power linking saves time setting up
• Fits best in the CHS-40 VIP Gear Bag
• Compact design easily fits inside sticks of TRUSST

Specifications

DMX Channels	3 or 9

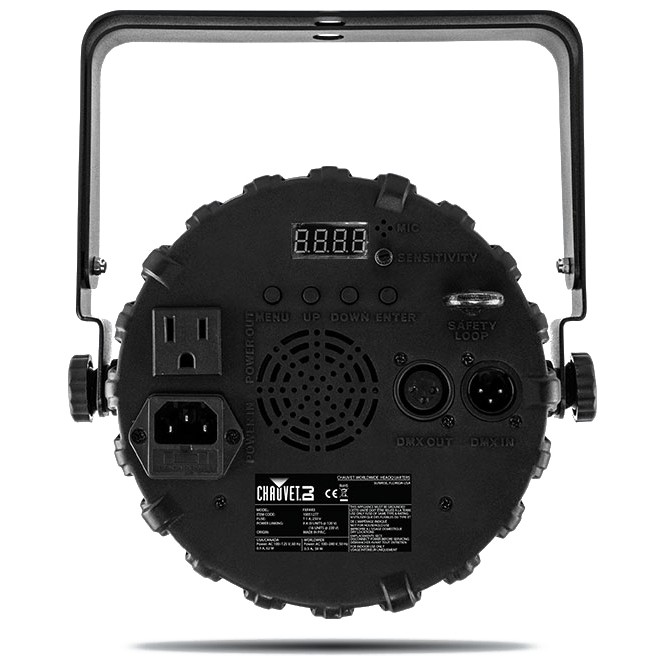

DMX Connectors	3-pin XLR
Light Source	LED: 3 LEDs (quad-color RGB + UV) 8W, (2.4 A), 50,000 hours life expectancy White SMDs: 27 LEDs (cool white) 0.5W, (0.1 A), 50,000 hours life expectancy RGB SMDs: 18 LEDs (tri-color RGB) 0.5W, (0.2 A), 50,000 hours life expectancy
Strobe Rate	0 to 20 Hz
Beam Angle	22°
Field Angle	46°
Illuminance	1,118 lux @ 2 m
Power Linking	9 units @ 120 V; 16 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	62W, 0.9 A @ 120 V, 60 Hz 59W, 0.5 A @ 230 V, 50 Hz
Approvals	CE
Optional Controllers	IRC - 6
Dimensions (H x W x L)	3" (77 mm) x 8.4" (214 mm) x 10.3" (264 mm)
Weight	2.2 lbs (1.1 kg)

DOCUMENTS

IN THE BOX

• (1) FXpar 3 Fixture
• (1) Power Cord
• Warranty Card
• Quick Reference Guide
