CHAUVET DJ Intimidator Spot 455Z IRC LED Moving Head Spot

Home /
CHAUVET DJ Intimidator Spot 455Z IRC LED Moving Head Spot (Discontinued)

Description

Details

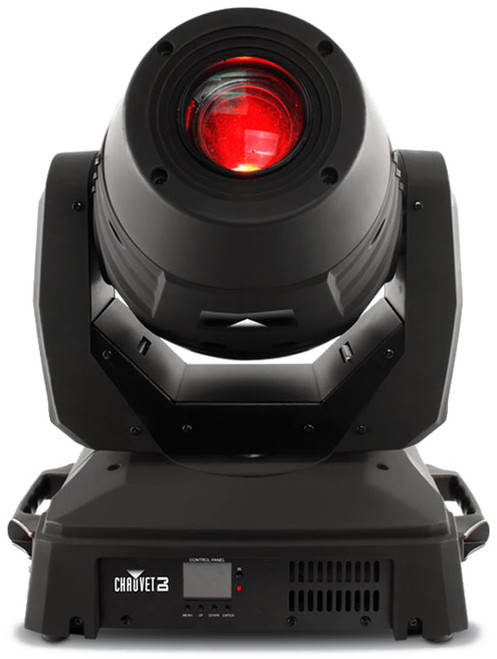

The CHAUVET DJ Intimidator Spot 455Z IRC is an extremely bright, 180 W LED moving head spot designed for large events. It features dual gobo wheels that allow for gobo morphing and amazing mid-air projections. The motorized zoom is perfect for short- or long-throw situations. The Intimidator Spot 455Z IRC beams always remain on the dance floor using the built-in, innovative Totem mode. You can also split the beam and cover a larger area with the Intimidator Spot 455Z IRC’s 3-facet prism. This powerful moving head emits crisp projections at almost any distance using the motorized focus. Quickly and easily change gobos using the easy-access gobo door and non-DMX control is easy with the optional IRC-6 remote. The Intimidator Spot 455Z IRC also allows you to set, save, and recall 1 scene manually directly from the full-color LCD display. Link multiple units together with the power-linking feature which saves time from running cables. The Intimidator Spot 455Z IRC fits best in the CHS-50 VIP Gear Bag

Features

Features

Extremely bright, 180 W LED moving head spot designed for large events
Dual gobo wheels allow for gobo morphing and amazing mid-air projections
Motorized zoom for short- or long-throw situations
Beams always remain on the dance floor using the built-in, innovative Totem mode
Split the beam and cover a larger area with the 3-facet prism
Emit crisp projections at almost any distance using the motorized focus
Quickly and easily change gobos using the easy-access gobo door
Convenient, wireless non-DMX control using the optional IRC-6 remote
Set, save, and recall 1 scene manually directly from the full-color LCD display
Save time running cables by power linking multiple units
Fits best in the CHS-50 VIP Gear Bag

Specification

DMX Channels	10 or 16
DMX Connectors	3-pin XLR
Pan and Tilt	540°/240°
Pan and Tilt Ranges	180°, 360°, 540° pan/90°, 180°, 240° tilt
Colors	7 + white, split colors, continuous scroll at variable speeds
Gobos	wheel (1): 7 + open (6 aluminum + 1 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds wheel (2): 8 + open (8 stamped), continuous scroll at variable speeds
Light Source	1 LED (white) 180 W (48.1 A), 50,000 hours life expectancy
Strobe Rate	0 to 15 Hz
PWM Frequency	1,000 Hz
Illuminance	(13°): 38,200 @ 2 m (28°): 8,720 lux @ 2 m
Power Linking	2 units @ 120 V; 5 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	327 W, 2.9 A @ 120 V, 60 Hz 304 W, 1.5 A @ 230 V, 50 Hz
Gobo Size	(rotating): 25.9 mm outside, 21 mm image, 1 mm max thickness
Zoom Angle	13° to 28°
Approvals	CE
Optional Controllers	IRC - 6
Prism	3-facet round, bidirectional rotation at variable speeds
Dimensions (H x W x L)	20.5" (520 mm) x 11.9" (303 mm) x 16.6" (423 mm)
Net Weight	42.2 lbs (19.2 kg)
