CHAUVET DJ Obey 70 DMX Lighting Controller
CHAUVET DJ Obey 70 DMX Lighting Controller
By CHAUVET

CHAUVET DJ Obey 70 DMX Lighting Controller

Write a Review
Part #:
OBEY70
Model #:
Obey 70
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The CHAUVET DJ Obey 70 bridges the gap between smaller rack mount controllers and massive control desks. It features 14 reversible faders and an assignable joystick allow for easy programming of up to twelve 32-channel fixtures.

Description

Bigger shows call for more accessibility and ease of programming. The Obey 70 bridges the gap between smaller rack mount controllers and massive control desks. 14 reversible faders and an assignable joystick allow for easy programming of up to twelve 32-channel fixtures. The Obey 70 can store up to 6 sets of chases containing 240 scenes on 384 total channels of control. Also at your fingertips are fog and strobe control as well as MIDI compatibility.

Features
  • Universal DMX controller capable of handling all the complexities of today’s lighting fixtures
  • Easily control up to 12 intelligent lights with up to 32 channels each
  • Includes 384 channels of DMX control and 30 banks of 8 scenes for a maximum of 240 scenes
  • Enhance light shows with 6 sets of chase effects containing 240 scenes
  • Increase effects with fog and strobe control, reversible sliders, beat activation, tap-sync and auto run
  • Capability to grab any fixture on the fly, reassign channels and sequentially link chases
  • Increase flexibility with MIDI compatibility, DMX polarity selector and assignable pressure-sensitive joystick
  • Conveniently mounts using the 4-space (4U) mounting rack

Specifications
DMX Channels 384
DMX Connectors 3-pin XLR
Rackmount 4U
Input Voltage 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
Approvals CE
Dimensions (H x W x D) 2.8" (71 mm) x 7" (178 mm) x 19" (483 mm)
Weight 7.3 lbs (3.3 kg)

DOCUMENTS

In The Box
  • Obey 70
  • External Power Supply
  • Warranty Card
  • User Manual

Related Products

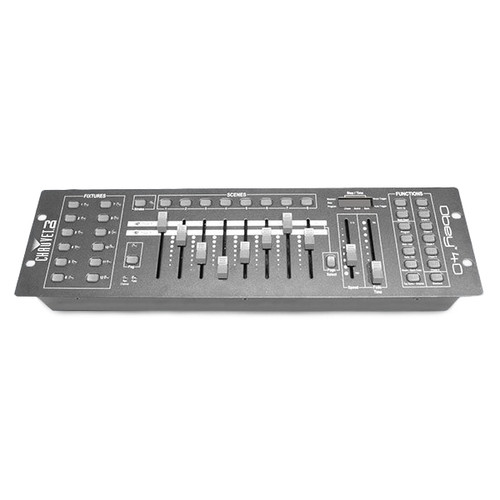

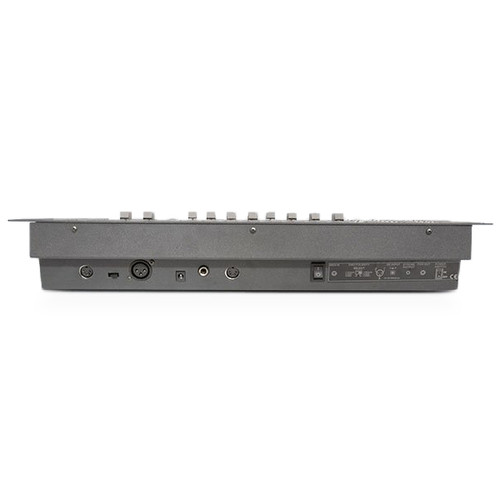

CHAUVET DJ Obey 40 DMX Lighting Controller CHAUVET DJ Obey 40 DMX Lighting Controller
