Chauvet DJ Scorpion Dual RGB Dual RGB FAT BEAM Aerial Effect Laser

Home /
Chauvet DJ Scorpion Dual RGB Dual RGB FAT BEAM Aerial Effect Laser (Discontinued)

Description

Details

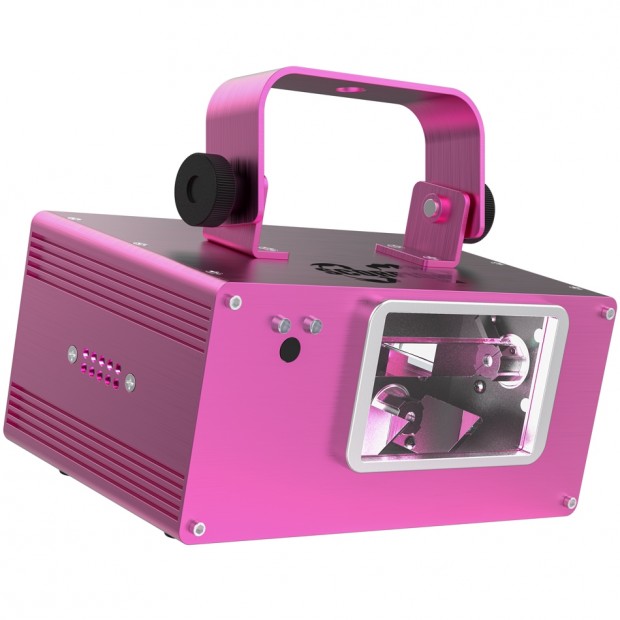

Chauvet DJ Scorpion Dual RGB Dual RGB FAT BEAM™ Aerial Effect Laser

Imagine the visual drama of a Dual RGB FAT BEAM™ aerial effect laser that lets you create perfect color combinations by mixing red, green, and blue laser diodes—That’s the power of Scorpion Dual RGB. This laser has 32 built-in patterns, including the popular "Laser Sky" effect for breathtaking visuals, which are perfect for events with fog or haze. Scorpion Dual RGB features a unique dual mirror output with scan/speed adjustment, so you can generate customized ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling images. This fixture is fully FDA compliant, variance-free, and ready to use right out of the box. Easily operate Scorpion Dual RGB in automatic, Master/Slave, manual, or sound-activated mode.

Features

Features

Dual RGB FAT BEAM™ aerial effect laser, perfect for events with fog or haze
Create perfect color combinations by mixing red, green and blue laser diodes
Unique dual mirror output that makes a great centerpiece or side accent in pairs
32 built-in patterns, including the popular "Laser Sky" effect
Wireless control using the optional IRC-6 remote
Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment
Fully FDA compliant, variance-free and ready to use right out of the box
Easily operate in automatic, Master/Slave, manual or sound-activated mode
Fits best in the CHS-40 VIP Gear Bag

Specification

DMX Channels	10
DMX Connectors	3-pin XLR
Pan and Tilt	30°/30° (variable)
Light Source	638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
Strobe Rate	0 to 27 Hz
Zoom Angle	1° to 29°
Coverage Angle	36°
Power Linking	27 units @ 120 V; 48 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	20 W, 0.3 A @ 120 V, 60 Hz 19 W, 0.2 A @ 230 V, 50 Hz
Bracket Mounting Hole	M12
Optional Controllers	IRC-6
Dimensions (H x W x D)	7" (179.5 mm) x 6.3" (161 mm) x 8.5" (216 mm)
Weight	3.8 lbs (1.7 kg)
