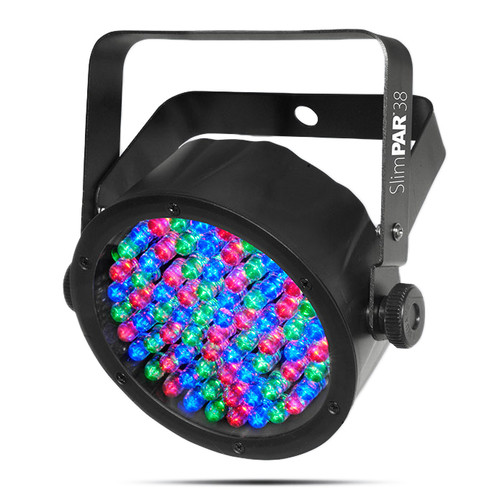

CHAUVET DJ SlimPAR 38 LED Par Can Wash Light (Discontinued)

Description

The SlimPAR 38 is a LED PAR 38 with a slim casing—only 2.5 inches thick—that can go almost anywhere. Boasting 75 red, green and blue LEDs, the fixture offers 3- or 7-channel of DMX control. Or you can use its built-in automated and sound-activated programs and variable speed-pulse effect for use on the fly. It also offers static colors and RGB color mixing with or without DMX and built-in power linking for quick set up and break down.

Features

• LED Par designed for any application in need of a compact wash light
• Low-profile fixture fits most places other lights cannot
• Ideal for quiet applications due to silent operation and no moving parts
• Convenient access to RGB color mixing and static colors without DMX
• Trigger eye-catching effects with built-in automated programs via Master/Slave or DMX mode
• Increase standalone versatility with multiple user-configurable settings
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• Easily transports in the optional CHS-SP4 VIP Gear Bag
• Fits best in the CHS-SP4 VIP Gear Bag

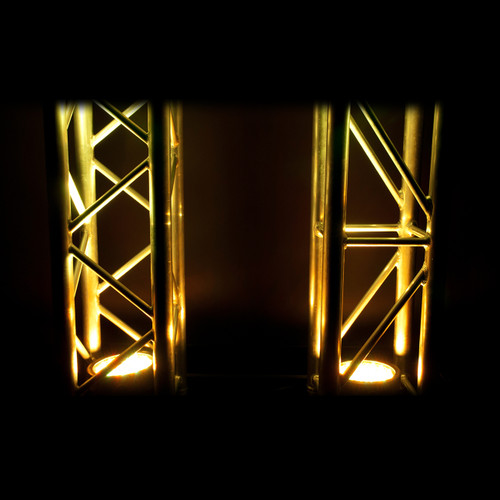

• Compact design easily fits inside sticks of TRUSST®

Specifications

DMX Channels	3 or 7
DMX Connectors	3-pin XLR
Light Source	75 LEDs (25 red, 25 green, 25 blue) 0.25 W (20 mA), 100,000 hours life expectancy
PWM Frequency	1,200 Hz
Beam Angle	14°
Field Angle	23°
Illuminance	531 lux @ 2 m
Power Linking	50 units @ 120 V; 100 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	18W, 0.2 A @ 120 V, 60 Hz 20W, 0.1 A @ 230 V, 50 Hz
Approvals	CE, MET
Dimensions (H x W x L)	2.5" (64 mm) x 8.1" (206 mm) x 7.3" (185 mm)
Weight	1.8 lbs (0.8 kg)

DOCUMENTS

In The Box

• (1) SlimPAR 38 LED Par Can
• (1) Hanging Bracket with Mounting Hardware
• (1) External Power Cord
• Quick Reference Guide
• Warranty Card
