Chief CMS492C 2' x 2' Above Suspended Ceiling Storage Box

Chief CMS492C 2' x 2' Above Suspended Ceiling Storage Box with Column Drop

By Chief

Chief CMS492C 2' x 2' Above Suspended Ceiling Storage Box with Column Drop

Name: Chief CMS492C 2' x 2' Above Suspended Ceiling Storage Box with Column Drop
Brand: Chief
SKU: CHIEF-CMS492C
Price: 662.4 USD
Availability: InStock

Write a Review

Part #:

CMS492C

Model #:

CMS492C

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

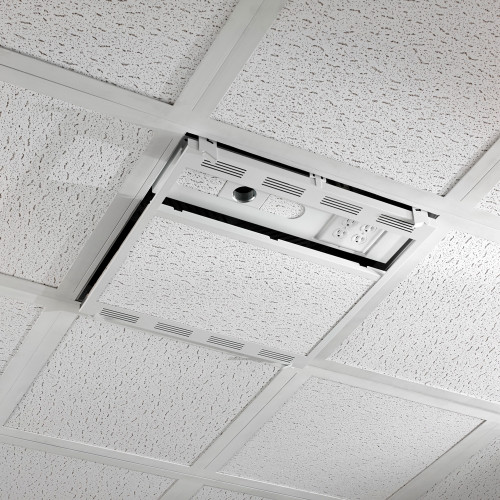

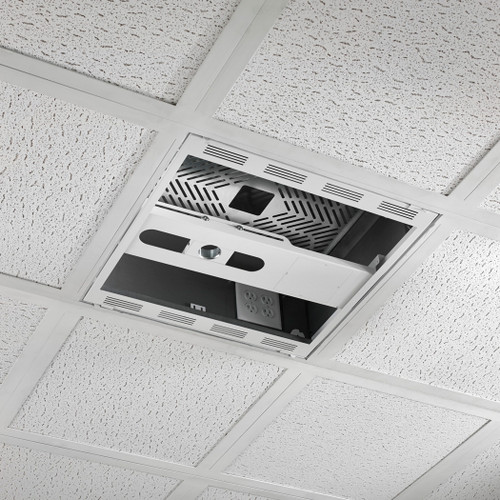

The Chief CMS492C conceals AV equipment above a 2' x 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Projector not included.

Description

Chief CMS492C 2' x 2' Above Suspended Ceiling Storage Box with Column Drop

The CMS492C conceals AV equipment above a 2' x 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Features

Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
Drop carriage door improves accessibility and serviceability providing full access to equipment
Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
Inside the box or facing the room

Up to 2 single gang or 1 dual gang outlet
4 nested knockouts for 1-1/4", 1", and ½" diameter conduit

Built-in ventilation
AV tray supports a variety of AV components

Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
1 RU rack rail brackets sold separately, see CMS1RU

Overall weight capacity 100 lbs (45 kg)

50 lbs (22 kg) for projector ceiling plate
25 lbs (11 kg) per shelf location

Ships with speed connect installation hardware
Lightweight construction, one man installation
UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
TAA Compliant

Specifications

Certifications	UL Listed, TAA Compliant
Color	White
Weight Capacity	100 lbs (45.4 kg)
Max Equipment Size (H x W x D)	7.61" (193 mm) x 19.25" (489 mm) x 20" (508 mm)
Overall Dimensions (H x W x D)	8" (203 mm) x 24.97" (634 mm) x 23.67" (601 mm)
Shipping Weight	43.8 lbs (19.87 kg)
