This church auxiliary sound system is great for adding audio to your church gymnasium. The Yamaha powered speakers provide broad coverage and high-quality sound, great for music and vocal reproduction. These speakers can be mounted on the wall and easily taken down for portable use.

Description

Church Gymnasium Speaker Sound System with 2 Speakers, Bluetooth Receiver and 2 Wireless Microphones

This church auxiliary sound system is great for adding audio to your church gymnasium. The Yamaha powered speakers provide broad coverage and high-quality sound, making them ideal for music and vocal reproduction. These speakers can be mounted on the wall and easily taken down for portable use. Featuring two wireless microphones and a Bluetooth receiver, this church speaker sound system is user-friendly, easy to set up, and simple to operate.

System Highlights

  • Speakers provide excellent music and speech reproduction
  • Excellent addition or upgrade to your existing church sound system
  • Easy to install, simple to operate, and can be converted into a portable system
  • Wireless handheld and lapel microphone system
  • Bluetooth receiver for wireless audio streaming

About the System Components

This church auxiliary gymnasium sound system includes two high-quality Yamaha DBR12 powered loudspeakers, a Rolls RM67 mixer, an Audio-Technica ATW-1312/L dual-channel handheld and lapel wireless system, a power conditioner and distribution unit, adjustable wall-mount speaker brackets, a portable 6U Gator rack, a rack drawer, and cables. To integrate audio from the chapel or sanctuary into your meeting area, contact our team to determine the appropriate cabling for your existing main sound system.

Not Sure If This Is the Right Church Sound System for You? Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Yamaha DBR Series Powered Loudspeakers:

  • The DBR's lightweight, high-performance Class-D amplifier is capable of producing up to 1000W of power
  • The high power output woofers deliver well-defined, powerful bass with minimal distortion
  • DBR Series speakers feature a compact, lightweight, and durable plastic cabinet
  • The sleek steel grille bolsters cabinet durability and protects the internal components
  • DBR Series speakers have two input channels.
  • CH1 has a combo jack which accepts both XLR and TRS Phone
  • CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack
  • The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2
  • DBR loudspeakers come equipped with M8 rigging threads
  • Speaker brackets and eye-bolts are not included
  • Yamaha's newly designed functional speaker covers that protect your speakers from unfavorable weather

Rolls RM67 Mic/Source Mixer:

  • Three XLR mic inputs with switchable phantom power and input padding
  • Clip LEDs for each Mic input
  • Mute jack, contact closure to ground main output mute
  • Master Level control
  • Remote Volume jack (connects to an optional 100K ohm potentiometer)
  • Stereo Record Out
  • Priority ducking/talk-over for microphone paging, and jukebox
  • Mic Insert jack for adding signal processing to the Mic Inputs
  • Four stereo RCA line/consumer level inputs
  • Master Bass and Treble controls (sources only)

Audio-Technica ATW-1312/L Dual Wireless System with Lavalier and Handheld Microphone:

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4 GHz range – completely free from TV interference
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis (ten receiver units) can be linked and used simultaneously
  • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and setup
  • Three levels of diversity assurance: frequency, time & space
  • Ground-lift switch helps eliminate audible hum caused by ground loops

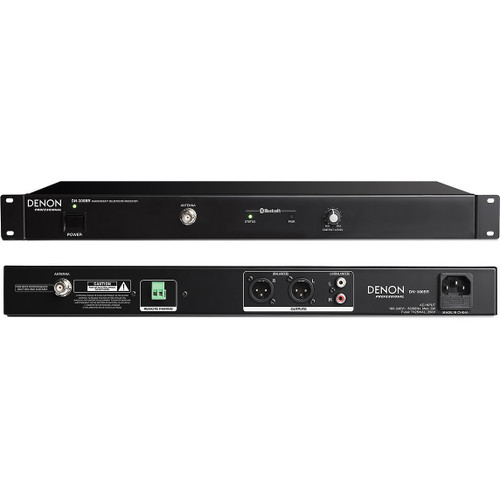

Denon Professional DN-300BR Rackmount Bluetooth Receiver:

  • 1 RU rackmount receiver
  • Adds stereo Bluetooth 4.0 reception to any audio system
  • Pairs up to (8) devices
  • Balanced XLR and unbalanced RCA output
  • Remote pairing button connection on rear (Euroblock mating connector included)
  • BNC antenna input for Denon remote Bluetooth antenna (included)

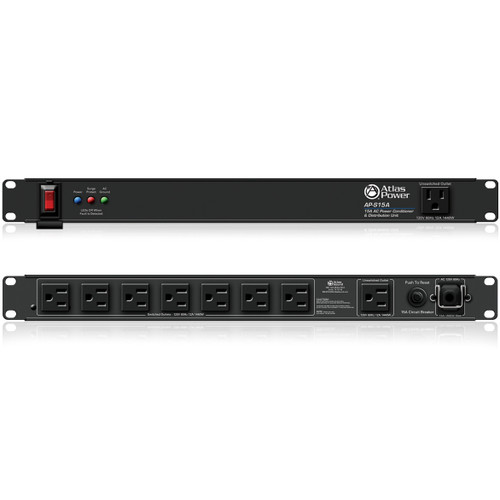

Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit:

  • Front Panel Dimmable Pul Out Lamp
  • Circuit Breaker Protection @ 15A
  • 9 Total Outlets
  • 7 Rear Panel Switched Outlets
  • 1 Rear Panel Unswitched Outlet
  • 1 Front Panel Unswitched Convenience Outlet
  • Removable IEC Power Cord with a Retainer Bracket
  • RFI Noise Filtering to Reduce Radio Frequency Interference
  • EMI Filtering to Reduce Electromagnetic Interference
  • Spike Suppression Up To 6000V
  • Power LED Indicator
  • Surge Protect LED Indicator
  • AC Ground LED Indicator
  • Power Switch Cover

Gator G-PRO-6U-19 6U 19" Deep Molded Audio Rack:

  • Virtually indestructible roto molded polyethylene design
  • 19" rackable depth
  • Full sized front and rear lids
  • Molded-in, ergonomic side carry handles
  • Recessed steel twist latches
  • Made in the USA
  • Made from recycled materials
  • Includes threaded front and rear rack rails
  • Custom colors available

System Includes
  • (2) Yamaha DBR12 12" 2-Way Powered Loudspeakers
  • (1) Rolls RM67 Mic/Source Mixer
  • (1) Audio-Technica ATW-1312/L System 10 PRO Rack-Mount Digital Dual Wireless System with Lavalier and Handheld Microphones
  • (1) Denon Professional DN-300BR Rackmount Bluetooth Receiver
  • (1) Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit

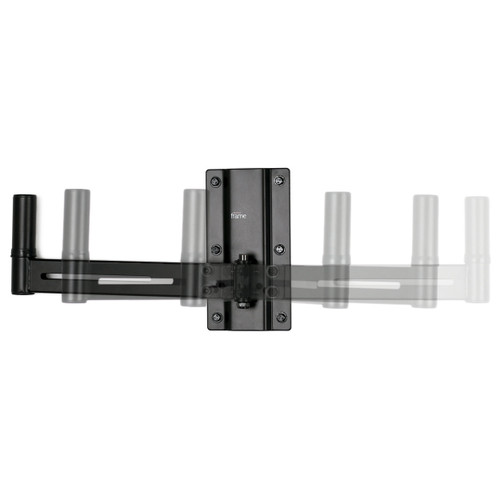

  • (2) Gator Frameworks GFW-SPK-WM100 Adjustable Wall Mountable Speaker Stands
  • (1) Gator G-PRO-6U-19 6U 19" Deep Molded Audio Rack

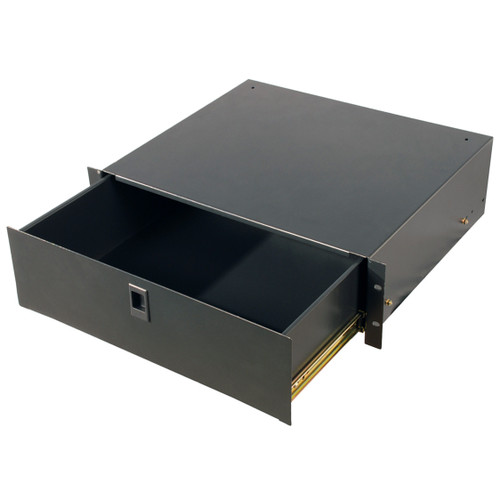

  • (1) Gator GRW-DRW2 Rackworks 2U Rack Drawer

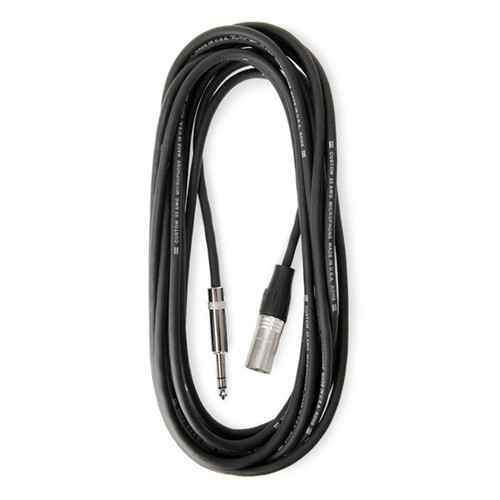

  • (2) CBI BLC-50 1/4" Male TRS to Male XLR Balanced Cables - 50ft
  • (2) CBI MLN-3 XLR Patch Cables - 3ft
