Church Sanctuary Column Array Sound System with 2 JBL CBT 100LA-1 Line Array Column Loudspeaker and Bluetooth Mixer Amplifier

Inside the Design

Many traditional houses of worship feature architectural designs that create challenges for speech clarity and overall acoustic intelligibility. This JBL church sound system is engineered to resolve these issues by delivering precise coverage, enhanced vocal intelligibility, and even sound distribution throughout the space. Utilizing slim, compact column loudspeakers with superior pattern control, this system blends seamlessly into architectural decor while providing powerful, controlled audio from a small footprint. The included Alesis MultiMix 10 Wireless mixer allows effortless audio routing and Bluetooth streaming, making it easy to integrate music, microphones, and media playback into your worship environment.

Sound System Features:

• Slim, compact loudspeakers designed to blend into architectural surroundings
• Superior audio quality with excellent pattern control for challenging acoustic spaces
• Adjustable vertical coverage modes allow broad or narrow dispersion to match room needs
• Alesis MultiMix 10 Wireless rackmount mixer accommodates a wide range of audio inputs
• Bluetooth streaming enables wireless stereo playback on mixer channels 9 and 10
• Crown XTi 1002 amplifier delivers exceptional power, performance, and value for professional installations



About the System Components

JBL CBT 100LA-1 Line Array Column Loudspeakers

The JBL CBT 100LA-1 features a slim, architectural design that integrates naturally into houses of worship, lecture halls, cathedrals, conference centers, and other acoustically demanding spaces. Its 100 cm line array provides consistent pattern control across the vocal clarity range, ensuring even coverage and enhanced intelligibility. The adjustable vertical coverage settings allow users to switch between broad and narrow dispersion modes to match the room layout and throw distance. A Music/Speech voicing switch fine tunes the response for full range music reproduction or enhanced speech clarity, offering flexibility for a wide variety of applications.

Alesis MultiMix 10 Wireless 10 Channel Bluetooth Rackmount Mixer

The Alesis MultiMix 10 Wireless provides a compact, powerful solution for multi input audio mixing in worship spaces, small venues, and mobile systems. This 3U rackmount mixer offers ten channels with easily accessible front panel connections for flexible routing. A dedicated Bluetooth channel enables wireless stereo playback from any compatible device, making it simple to integrate music beds, media playback, or background tracks. With intuitive controls, versatile input options, and a space saving design, the MultiMix 10 Wireless sets a new standard for rackmount mixers.

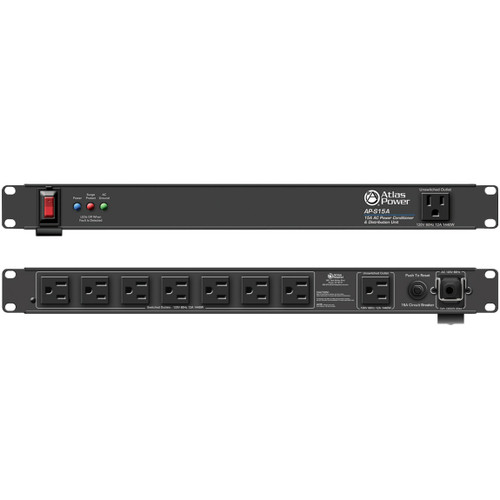

Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit

The Atlas Sound AP-S15A provides reliable power conditioning and distribution to protect sensitive audio equipment from electrical noise and voltage irregularities. Built in RFI and EMI filters reduce interference from nearby transmitters, motors, and switching power supplies. Its advanced surge suppression circuitry reacts within nanoseconds to protect equipment from damaging voltage spikes, sustaining protection for up to 2 milliseconds. The AP-S15A includes a removable 12 foot IEC power cord with a locking retainer for secure connection in professional installations.

JBL CBT 100LA-1 Line Array Column Loudspeakers

• Constant Beamwidth Technology provides consistent directivity across the full frequency range while minimizing out-of-coverage lobing
• Switchable vertical pattern coverage with 40 degree medium throw and 15 degree long throw options
• Selectable voicing modes offer flat frequency response for music or a mid range presence boost for enhanced speech intelligibility
• Dynamic SonicGuard overload protection ensures reliable performance and system safety
• Includes swivel pan and tilt wall bracket for flexible mounting and positioning
• Built in 70V and 100V transformer with 8 ohm bypass capability for versatile installations

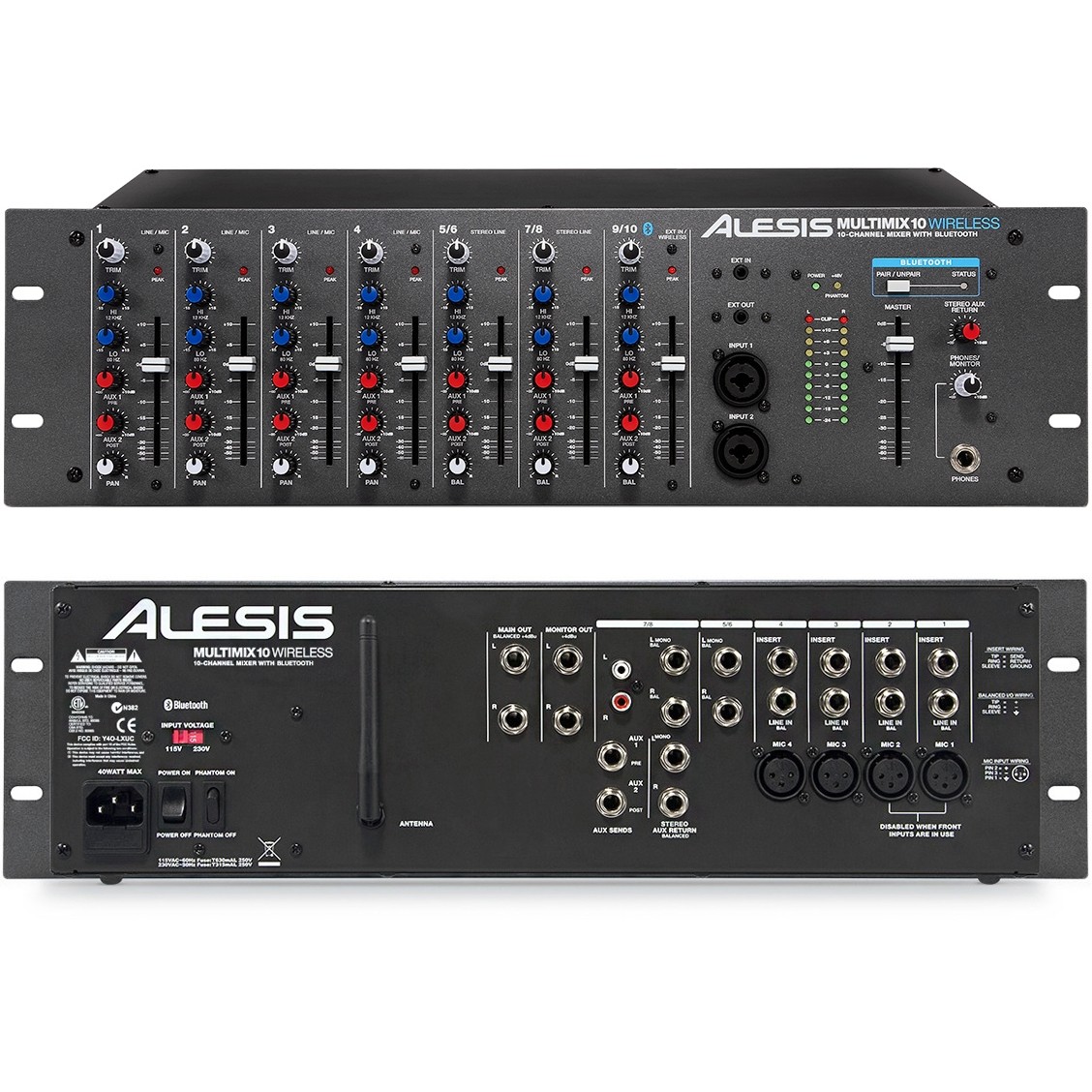

Alesis MultiMix 10 Wireless 10 Channel Bluetooth Rackmount Mixer

• Front panel input jacks provide easy access and added routing flexibility
• Compact 3U rackmount design ideal for fixed installations and mobile sound systems
• Bluetooth streaming with simple single button pairing for quick wireless connectivity
• Articulating Bluetooth antenna ensures strong and reliable reception
• Four high gain mic and line preamps with inserts for signal processing
• Two band shelving EQ on every channel for clear tonal shaping
• Pre fader and post fader aux sends with stereo aux return for expanded mixing options

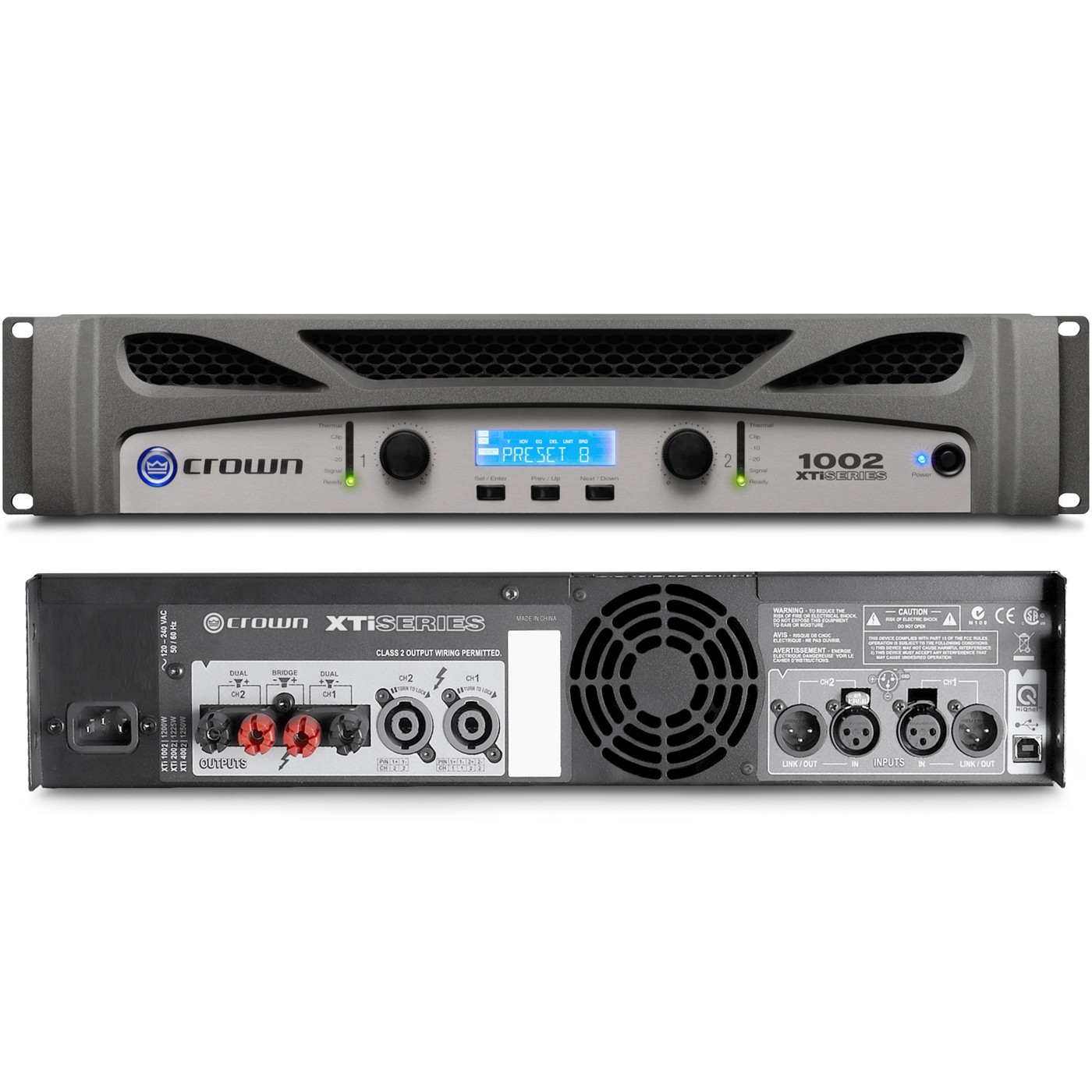

Crown XTi 1002 2 Channel Stereo Power Amplifier

• Peakx Plus limiters deliver advanced control over threshold, attack, and release for maximum system protection
• Enhanced Subharmonic Synth section allows precise tuning of frequency, gain, and filter type for low frequency optimization
• User selectable fan modes include normal, early, and full speed to match cooling performance to the application
• System monitoring provides real time visibility of AC line voltage and power supply temperature through software
• Integrated cast aluminum handles offer strength and easy transport
• Locking power cord clip ensures a secure connection during operation
• Compatible with updated HiQnet Band Manager and System Architect control software
• Includes 30 total presets with 29 fully user definable options for custom configurations

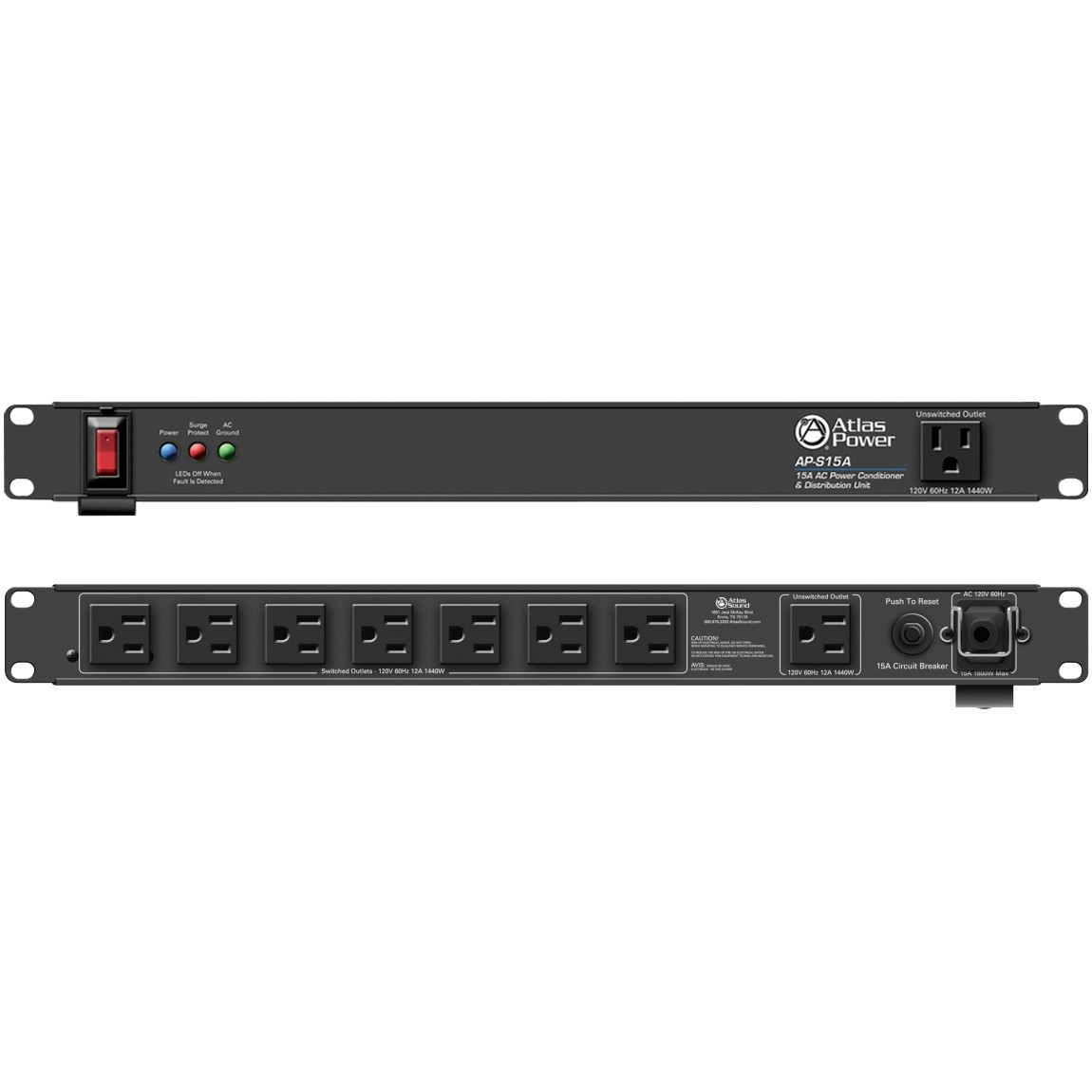

Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit

• Nine total AC outlets for powering multiple components
• Seven switched and one unswitched rear panel outlets for flexible power control
• One front panel unswitched outlet for convenient access
• Built in RFI and EMI filtering reduces electrical noise for cleaner audio performance
• 15A circuit breaker protection safeguards connected equipment
• Surge suppression rated up to 6000V for advanced protection from voltage spikes
• Includes removable 12 foot IEC power cord for easy installation

• (2) JBL CBT 100LA-1 Line Array Column Loudspeakers (Brackets Included)
• (1) Alesis MultiMix 10 Wireless 10-Channel Bluetooth Rackmount Mixer
• (1) Crown XTi 1002 2-Channel Stereo Power Amplifier
• (1) Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit

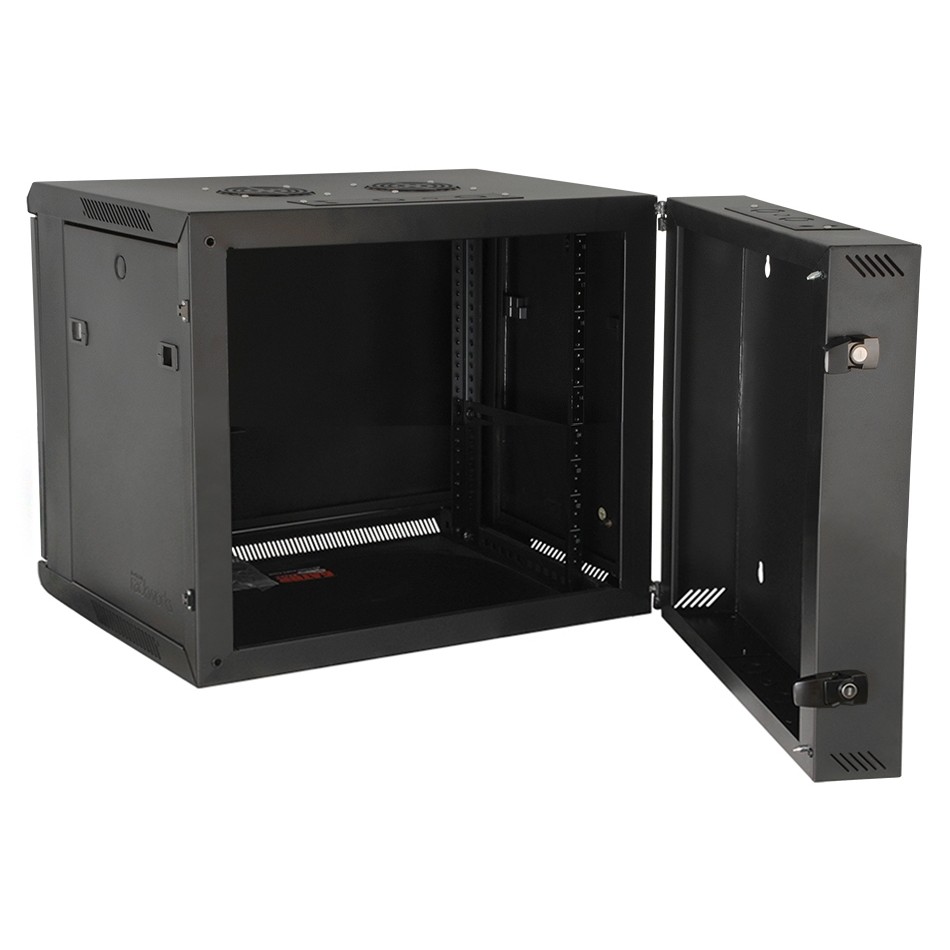

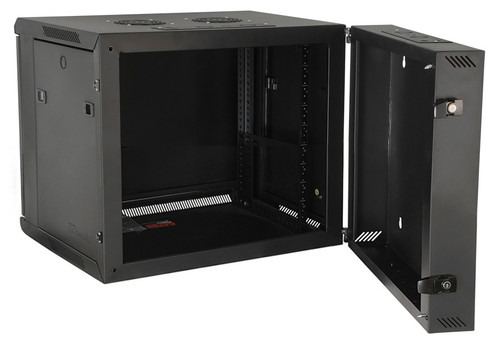

• (1) Gator GRW2009508 9U 21" Deep Sectional Wall Rack

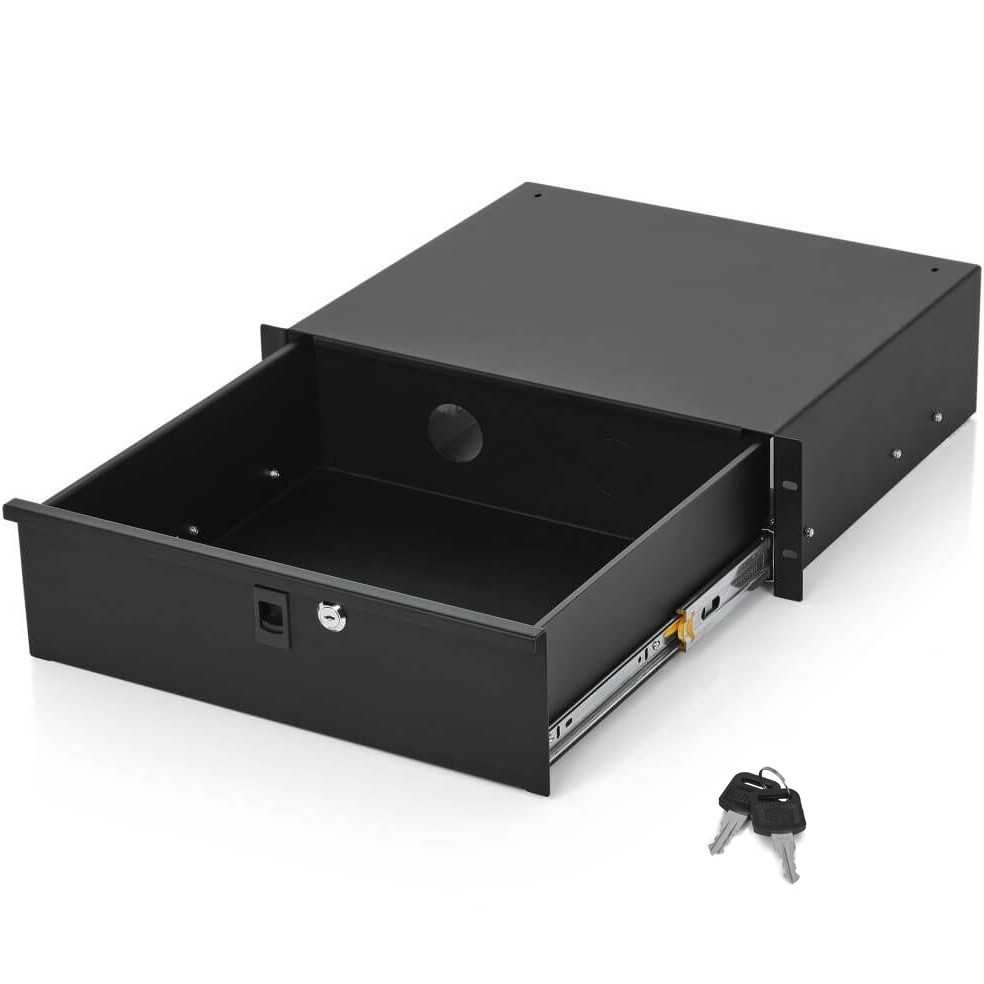

• (1) Gator GRW-DRW3 3U Rackworks Rack Drawer
• (2) CBI BLC-3 1/4" Male TRS to Male XLR Cables - 3ft
• (250ft) Provideon 2C14P 14/2 Plenum Audio Speaker Wire - Black
