Inside the Design
This portable church sound system is designed for traveling ministries and small to medium Houses of Worship that require easy setup, reliable operation, and high quality audio. Combining powerful dBTechnologies loudspeakers with a versatile Yorkville VGM14 mixer, this system delivers clear speech, strong musical reinforcement, and flexible connectivity for worship services, events, and mobile ministry applications.
Sound System Features:
- dBTechnologies KL Series speakers feature an efficient 800W amplifier with advanced DSP processing for clean, coherent audio performance
- Durable and portable design provides crystal clear sound from every listening position
- Ideal for paging, spoken word, and background music reinforcement
- Bluetooth enabled Channel 3 allows easy wireless audio playback
- Yorkville VGM14 mixer includes essential professional features in an ultra compact format
- Channel controls include 3 band EQ with sweepable mid, high pass filter, monitor send, aux send, effects send, clip LED, mute switch, and pan control; stereo channels include 4 band EQ
About the System Components
dBTechnologies KL 15 15" Active Speaker

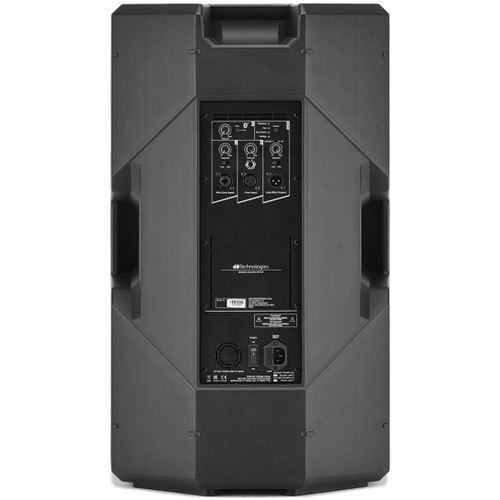

The dBTechnologies KL 15 is a 2 way active loudspeaker featuring a 15 inch woofer and a 1 inch compression driver with a 1.35 inch voice coil. Powered by an efficient 800W amplifier, the KL 15 utilizes advanced DSP processing with linear phase FIR filters to ensure consistent, uniform, and crystal clear audio performance throughout the listening area. A built in DSP preset enhances high and low frequencies for added tonal flexibility. The rear panel includes three independent input channels: Channel 1 with a combo XLR/6.3 mm jack for mic or line sources, Channel 2 with balanced XLR and TRS inputs, and Channel 3 featuring Bluetooth connectivity for wireless playback.

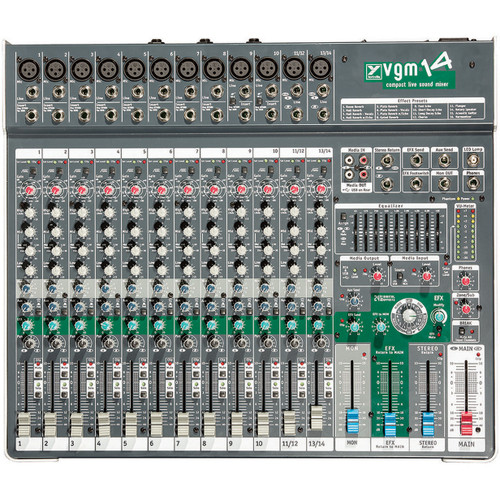

Yorkville VGM14 Compact Live Sound Mixer
The Yorkville VGM14 provides all the essential tools for professional live sound mixing in a compact, rugged chassis. Designed for reliability and performance, it features fully equipped input channels, smooth 60 mm faders, and 24 bit digital effects suitable for live music and worship applications. The mixer includes USB audio I/O, multiple media input options, and two high impedance instrument level inputs for acoustic guitars or bass. With an IEC AC input for dependable mobile operation and flexible signal routing, the VGM14 is a powerful and portable solution for a variety of worship and event needs.
