- Description
Details
Classroom Sound System
Reach students like never before with a Classroom Sound System that is built to deliver. These days students are bombarded with distractions from their cellphones, laptops, iPads and whatever else the latest gadget is; which in turn leads them to quickly tune out their teachers. To help instructors keep their students attention this installed sound system comes packed with a multi-directional VCA8 speaker array which can be placed strategically in the center of the room for optimal area coverage. In addition, teachers can be equipped with a wireless handheld microphone or a wireless lavalier, leaving them the freedom to move around the classroom for Q&A sessions or activities that fully engage their students. Ideal for science labs, workshops, fine arts, debates and a variety of other classrooms. This system was designed to give schools every edge possible when it comes to audio.

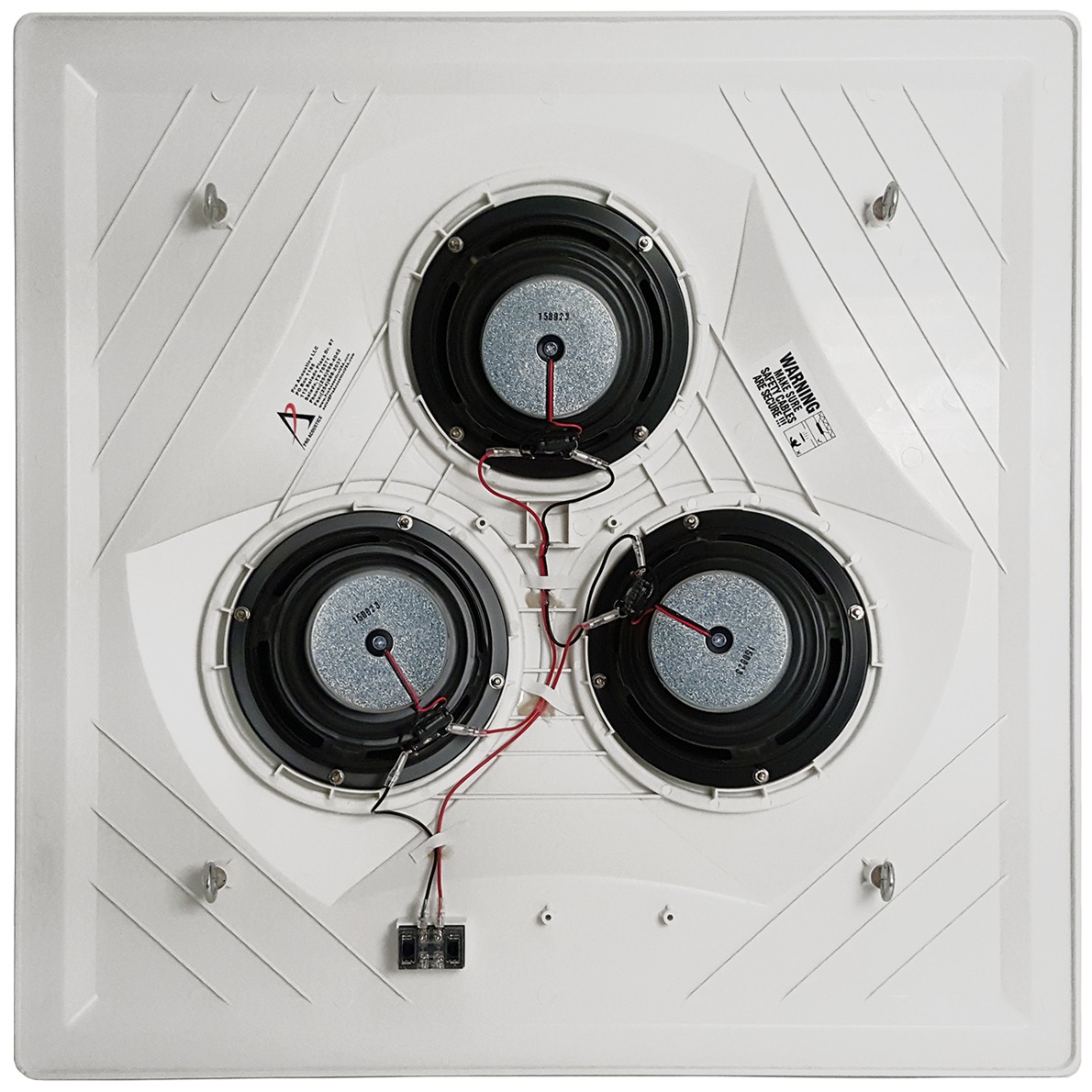

Pure Resonance Audio VCA8 Vector Ceiling Speaker Array
The Pure Resonance Vector 2x2 Lay-In Ceiling Speaker employs (3 smaller 6.5”) very fast transient response aluminum-woofer drivers that are very powerful and stable. Working in unison, these drivers produce clean, powerful, dynamic sound. When designing the Vector the goal was to have the single most important feature at the forefront -- good transient response ("dynamic contrast"). A transient is a sound of short duration. Good transient response can only be achieved if the speaker can deliver its output quickly and cleanly without smearing the original sound, and be completely soundless immediately after. Transients contain the essentials of sound reproduction. They provide the sharp pop from a snare drum, the cutting edge of digital sound, the dynamics of the human voice. Larger 2-way cabinet loudspeaker systems offer relatively slow transient response, and the small high-frequency horn tends to beam a narrow, blaring sound at the listener—end result, muddy sound. By replacing larger speakers with four 6 or 8" drivers increases the driver surface area, while creating more punch and a tight, more focused low-end.Atlas Sound AA50PHD Mixer Amplifier

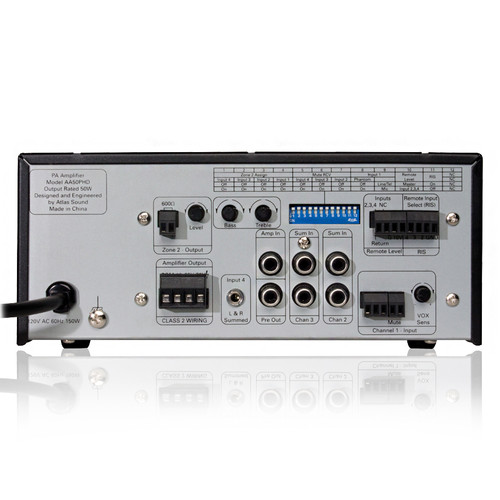

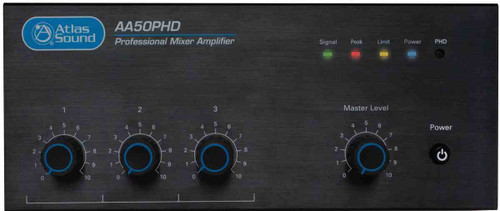

The Atlas Sound AA50PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and three stereo line inputs, the AA50PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. The AA50PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD).Electro-Voice R300-HD Wireless Handheld Microphone System

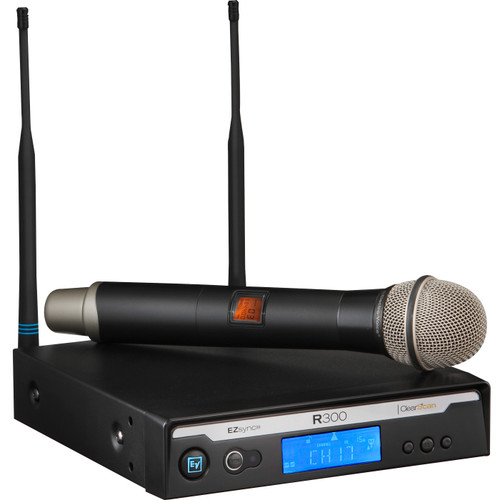

The Electro-Voice R300-HD is a robust handheld UHF wireless system, suitable for any application where the convenience of a handheld transmitter is required. The HT-300 metal handheld transmitter is made to withstand the rigors of daily use while remaining comfortable and light-weight in your hand. The PL22 dynamic microphone is the perfect all-around microphone for singing, speaking engagements, and emcees. The cardioid pickup pattern rejects sounds from the surroundings, helps control audio feedback, and still allows an experienced vocalist to work the microphone. The receiver's dual antenna diversity helps avoid signal dropouts, and its durable metal frame and chassis can either be used on a tabletop, or rack-mounted with optional rack mounting hardware.Electro-Voice R300-L Wireless Lavalier Microphone System
The Electro-Voice R300-L is a UHF wireless bodypack system, suitable for any application where the convenience of a wireless lavalier microphone is required. The system's BP-300 rugged metal bodypack transmitter is simple to use, and is powered by two AA batteries. Included with the system, the ULM18 is a high quality directional (cardioid) condenser lavalier microphone suitable for sound reinforcement or recording of voice, and allows users the convenience of a hands-free presentation or performance experience. Exceptionally useful for sound reinforcement applications, the ULM18’s directional cardioid polar pattern reduces sound system feedback potential when used properly. The receiver's dual antenna diversity helps avoid signal dropouts, and its durable metal frame and chassis can either be used on a tabletop, or rack-mounted with optional rack mounting hardware.Atlas Sound WPD-RISRL Volume Control

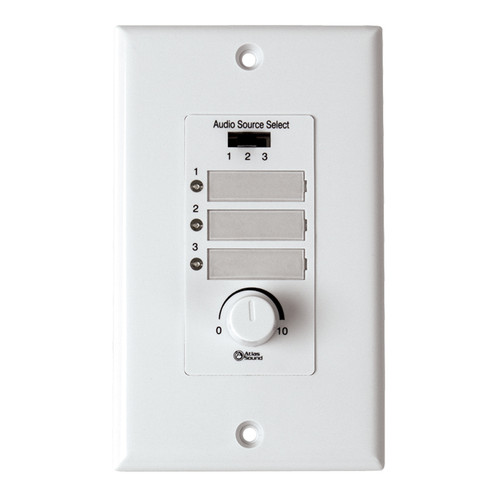

The Atlas Sound WPD-RISRL is a decor style wall plate that is designed for use with the AA50PHD, AA100PHD, AA200PHD, or AA400PHD mixer amplifiers to use the remote input selection (RIS) feature. The WPD-RISRL features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.- Features
Features
Pure Resonance Audio VCA8 Vector Ceiling Speaker:
- Omni Directional Speaker Coverage 360 x 180 (hemispherical)
- Infinite-baffle in-ceiling speaker’s drops into standard ceiling tile openings
- Powerful – 120 Watts at 8 Ohms
- 3 - 6.5” Full Range Drivers
- Uniquely designed fire retardant ABS housing may be painted to match any décor
- Impedance: 8 ohms
Atlas Sound AA50PHD Mixer Amplifier:
- 400W into 25V/70.7V and 4Ω Loads
- Automated Diagnostic System Test (Push Here Diagnostic)
- Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
- Three Unbalanced, Summing Line Level Inputs
- Input Assignable Zone 2 Output
- Remote Level Control
- Remote Input Select (RIS)
- Line Output
- Preamp In for External Processors
- Variable Mute Sensitivity Control for Input 1
- Contact Closure Mute Terminals
Electro-Voice R300-HD Handheld Wireless Microphone System:
- ClearScan automatically finds the clearest channel
- EZsync one-step channel setup
- PL22 cardioid dynamic microphone element
- 14 hour battery life from two AA alkaline
- Rugged metal transmitter
- Metal receiver chassis with optional rack mount
Electro-Voice R300-L Lapel Wireless Microphone System:
- ClearScan automatically finds the clearest channel
- EZsync one-step channel setup
- ULM18 directional lavalier microphone
- 14 hour battery life from two AA alkaline
- Rugged metal transmitter
- Metal receiver chassis with optional rack mount
Atlas Sound WPD-RISRL Volume Control Input Select Switch:
- Designed for remote input selection and volume adjustment used with select AAPHD amplifier
- Input select slide switch
- Level control via on board 10kΩ potentiometer
- System status indicator (red)
- 8-Conductor interface connection
- Label guard
- System Includes
System Includes
- (1) Pure Resonance Audio VCA8 Vector Ceiling Speaker
- (1) Atlas Sound AA50PHD Mixer Amplifier
- Your Choice of (1) Electro-Voice Wireless Microphone System:
- Electro-Voice R300-HD Handheld Wireless Microphone System
- Electro-Voice R300-L Lapel Wireless Microphone System
- (1) Atlas Sound WPD-RISRL Volume Control Input Select Switch
- (50') of 18 gauge Speaker Cable
