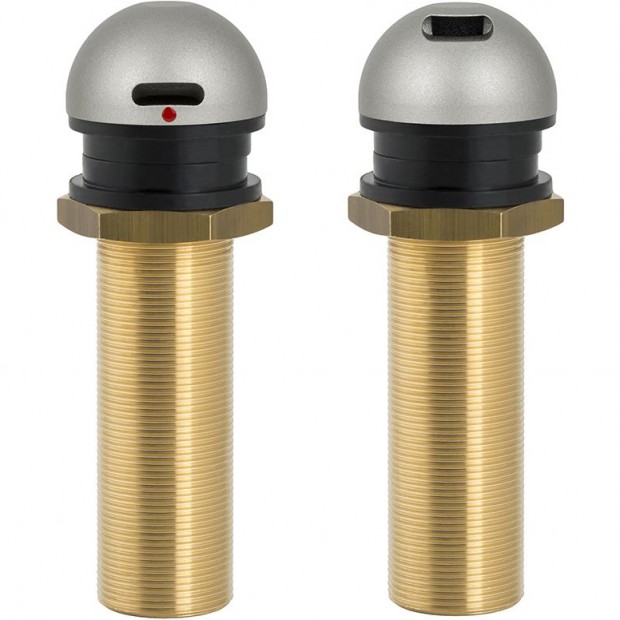

Clockaudio C012EN-RF Through Table Cardioid Boundary Layer Condenser Microphone - Nickel

Part #:
C012ENRF
Model #:
C012EN-RF
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Clockaudio C011EN-RF is a through table cardioid boundary layer microphone, designed for boardrooms, conferencing, courtrooms, and other such venues.

Description

The condenser microphone design is for a through desk/ceiling/panel mount boundary layer type with a cardioid polar pattern. The microphone is made of a robust high-quality brass construction with a low profile robust brass top. It is terminated with a male 3 pin XLR. The microphone is powered by a 9 to 48 volts phantom power adaptor which also includes filters that will eliminate all GSM frequencies from 800 - 1200 MHz. Frequency response 50 Hz to 18 KHz; Sensitivity -37dB +/- 3dB @ 1Khz (0dB=1V/Pa) Impedance 200 Ohms. Total harmonic distortion (THD) at an operating level of 120dB is no greater than 1%. Also included are rubber shock mounts to minimize the transfer of mechanical noise from table, ceiling or panel. Length 90.00mm (3.55"). Finish: Nickel.

Features

  • RF friendly technology offering immunity from GSM (cellphones) and other sources of frequency interference
  • Engineered in high-quality brass
  • Cardioid polar pattern
  • Wide smooth response
  • Balanced output
  • Simple through-desk shock mounting
  • Low profile at surface level
  • Inbuilt phantom power module
  • Finish: nickel
  • Also available in Nextel suede coating finishes (custom orders only)
